Product Overview

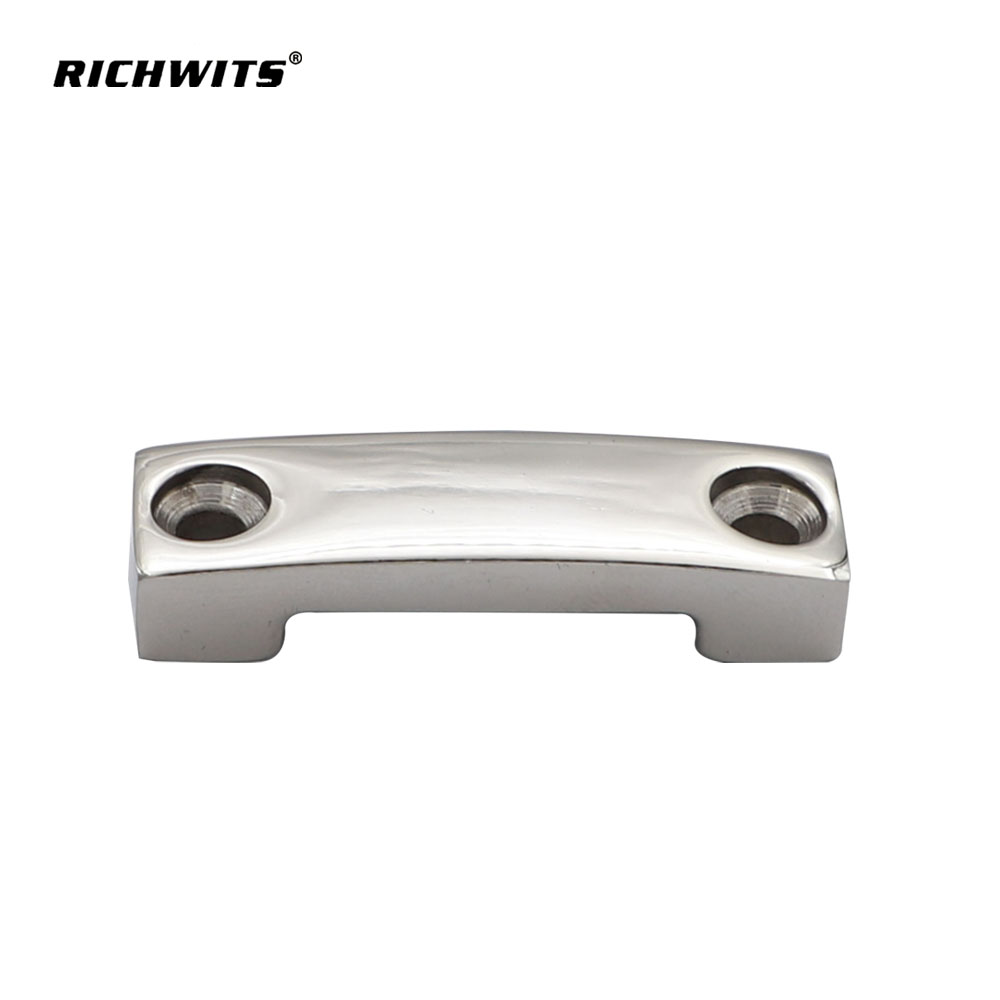

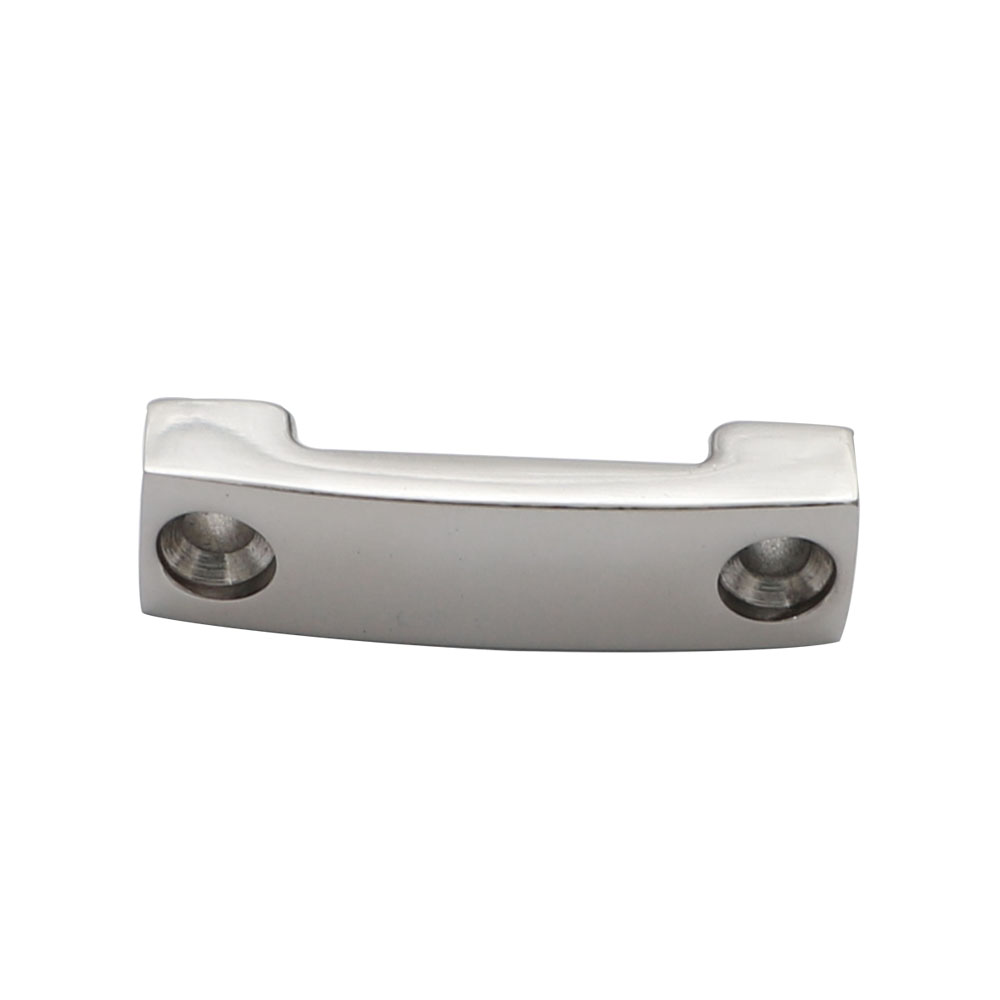

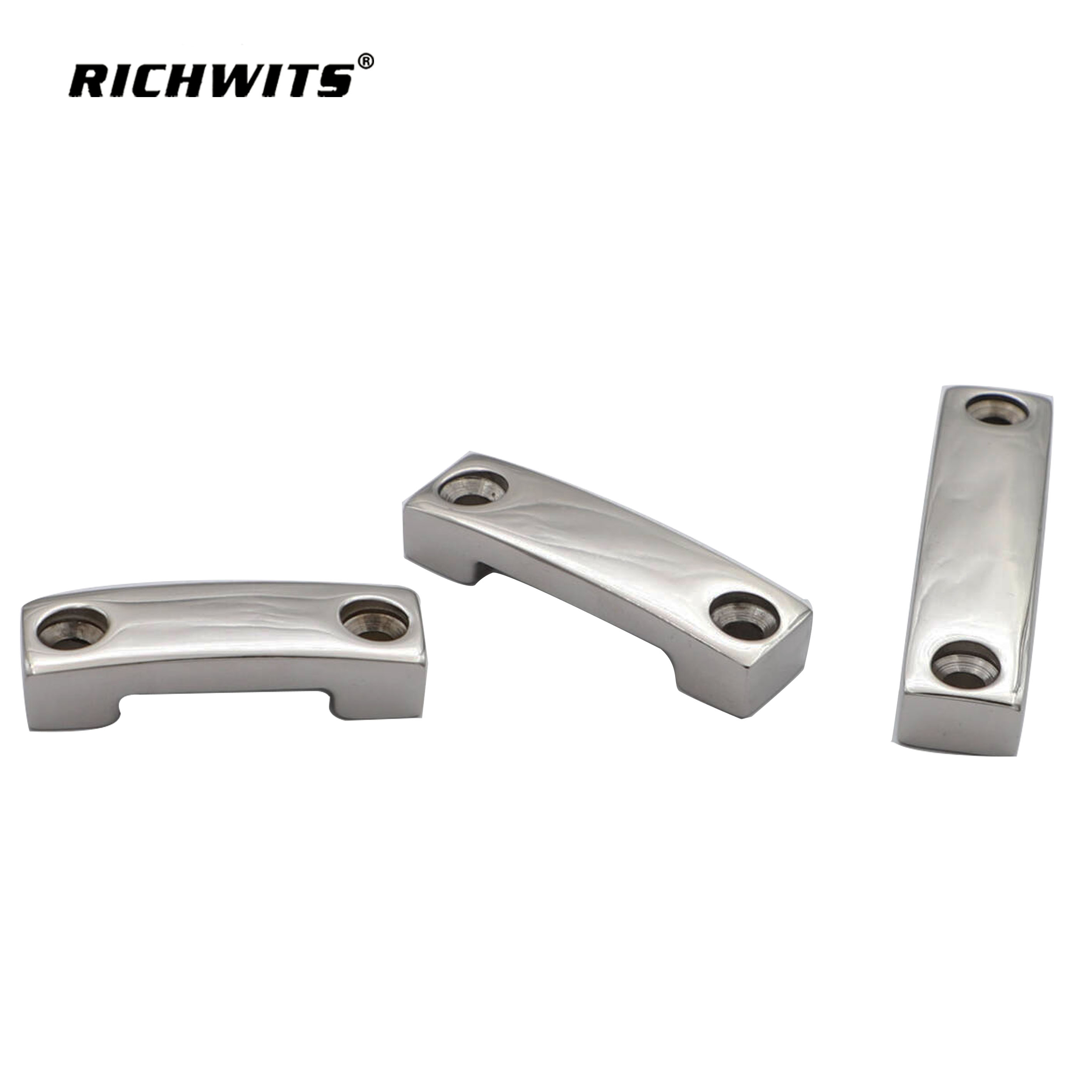

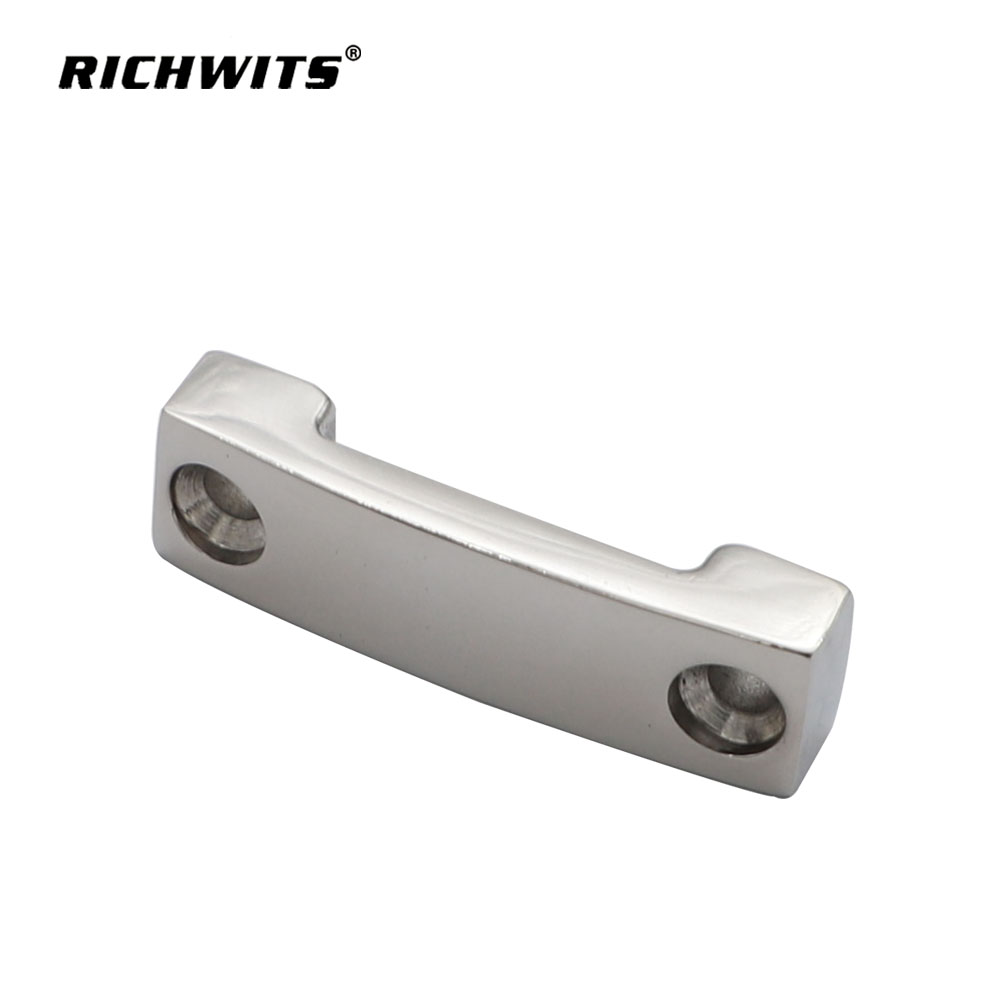

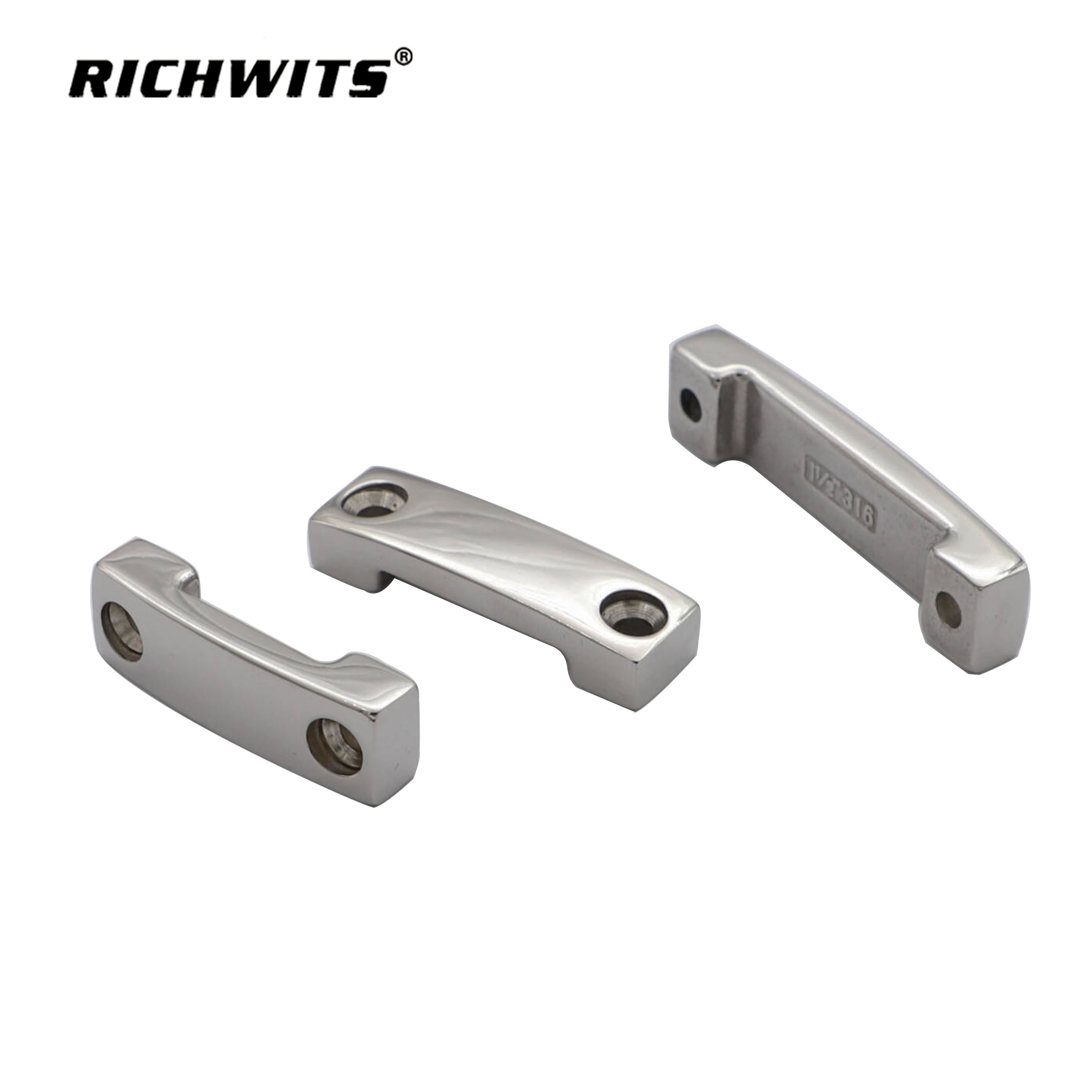

Stainless-Steel Eye Cam Buckle Tie-Down Strap End – Model ZB7003 Series
RICHWITS ZB7003 gives you a fixed-eye, webbing-ready anchor that terminates tie-down straps with marine-grade strength.
Investment-cast from 304 stainless steel (316 on request), then CNC-machined and mirror-polished for lifetime immunity to salt-spray, UV and tropical humidity.
Oval 10.5 mm eye accepts shackles, snap hooks or rope; 14.5 mm wide body grips 20–38 mm webbing at 200–400 kgf—no sewing, no tools, instant termination.
Three sizes weigh only 33–45 g—perfect for yacht covers, cargo nets, shade sails or truck straps where quick, strong webbing ends are essential.

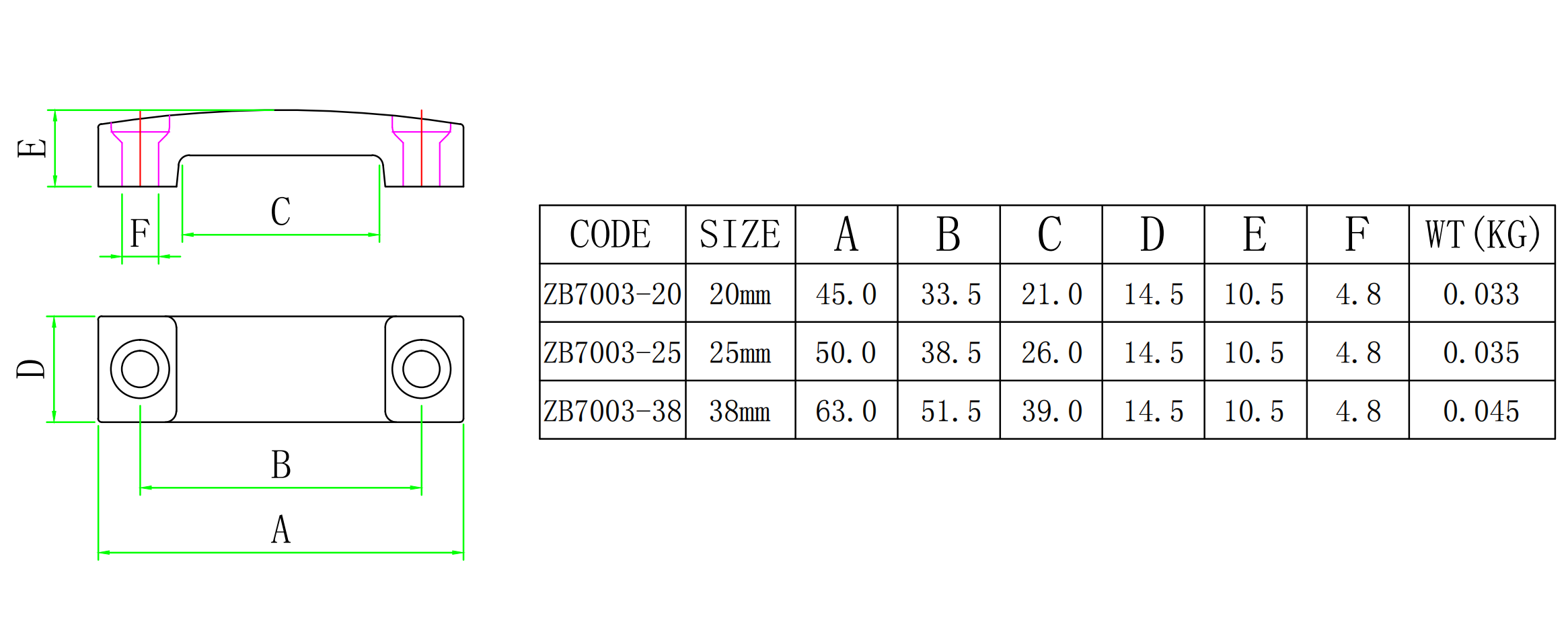

Dimension & Working Loads
Key Features & Benefits
304/316 SS Investment-Cast Body – zero welds, zero rust; 316 on request for salt-water.
Fixed Oval Eye 10.5 mm – accepts M10 shackles, snap hooks or 12 mm rope.
Webbing Slot 14.5 mm Wide – grips 20–38 mm polyester strap; no sewing required.
Cam-Wedge Self-Lock – thread webbing, pull tight—jaw locks under load; release by lifting cam.
Mirror-Polished & Passivated – salt rinses off; no pitting or tea staining.
Lightweight 33–45 g – strong termination without adding strap weight.
Factory-Direct Price – 35 % cheaper than sewn-loop equivalents; MOQ 500 pcs.
Usage Scenarios
Yacht & Boat Covers – 25–38 mm webbing; 300–400 kgf termination for sail covers.
Truck & Trailer Straps – quick eye-end for ratchet buckles; no sewing shop needed.
Cargo Nets & Lashing – 20–25 mm webbing; 200–300 kgf for mesh bags or pallet nets.
Shade Sails & Awnings – clean eye-end for turnbuckle or shackle connection.
Certifications / Testing
Holding-force tested to 2 × working load (400–800 kgf)
Salt-spray 480 h (304) / 720 h (316) per ASTM B117
Passivated per ASTM A967
Webbing pull-out test: 5 000 cycles, zero slippage
Why Choose RICHWITS
Factory-Direct – wholesale only, 35 % cost saving vs. sewn-loop equivalents.
In-Stock – 500 000 pcs ready, MOQ 500 pcs, 48 h dispatch.
Fast Logistics – FedEx/UPS/DHL global 3-7 day delivery.
OEM/ODM – custom 316 material, logo or eye guard within 2 weeks.
Test Certificates – mill cert, salt-spray, holding-force report supplied free.
FAQ
Q1: Will 304 SS really never rust?
A1: 304 resists most salt-air; choose 316 for continuous immersion—polish yearly to keep the shine.
Q2: What holding force per buckle end?
A2: 200 kgf (20 mm) to 400 kgf (38 mm); divide cargo load by number of ends—safety factor 2:1.
Q3: Can I use 25 mm webbing in the 38 mm slot?
A3: Yes—14.5 mm slot accepts 20–38 mm; fold or double webbing for max grip in larger slot.
Q4: Will the cam slip under vibration or shock load?
A4: No—wedge cam locks tighter under load; tested 24 h vibration 50–500 Hz, zero slippage.
Q5: Are spare 316 versions available?
A5: Yes—316 upgrade on request, MOQ 500 pcs, 25 % price adder.
Q6: Do you offer test certificates?
A6: Mill certificate for 304/316 SS, salt-spray report, and holding-force certificate supplied free on request.
