Product Overview

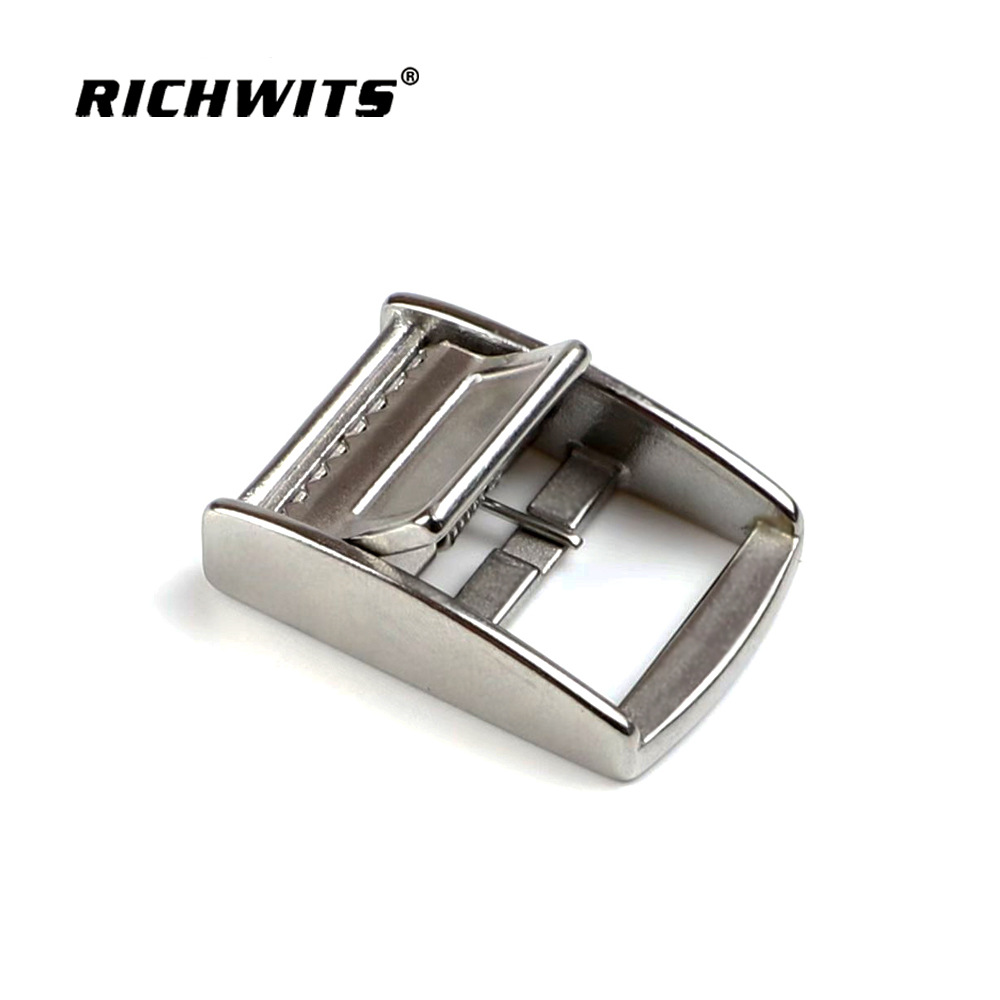

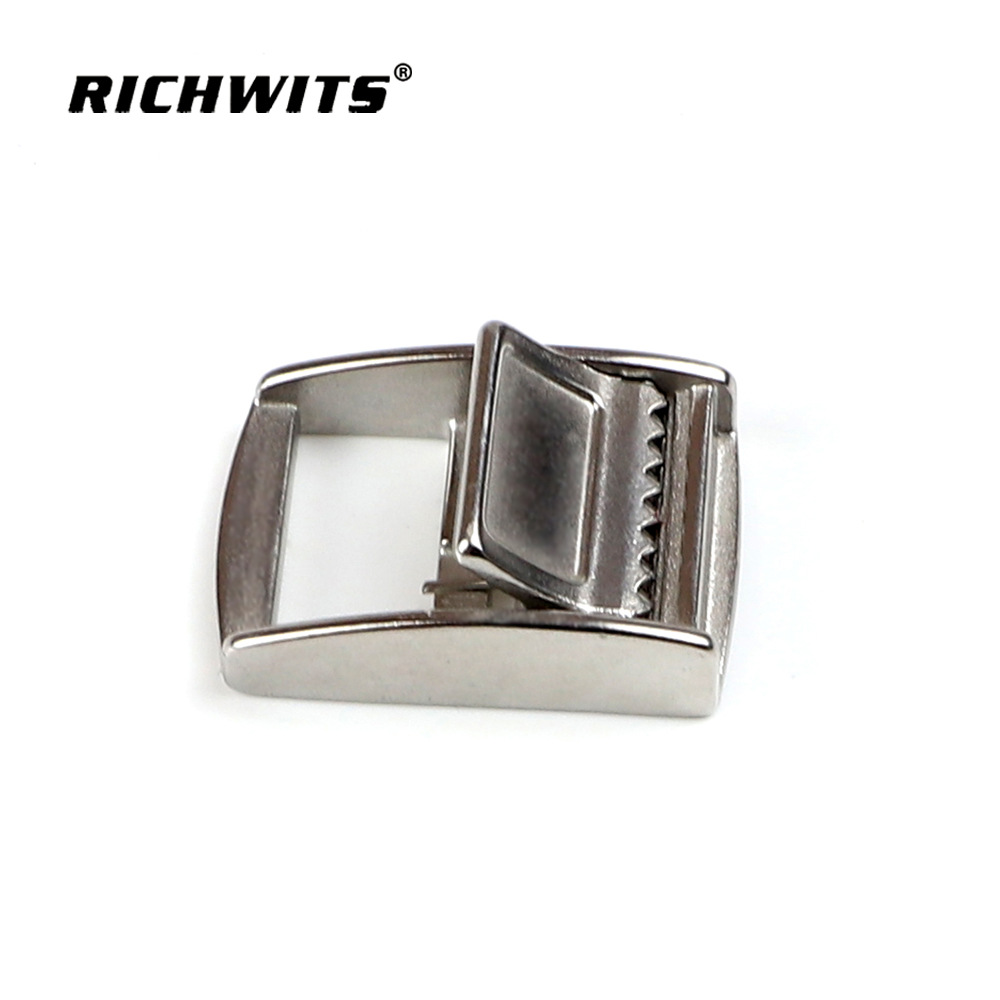

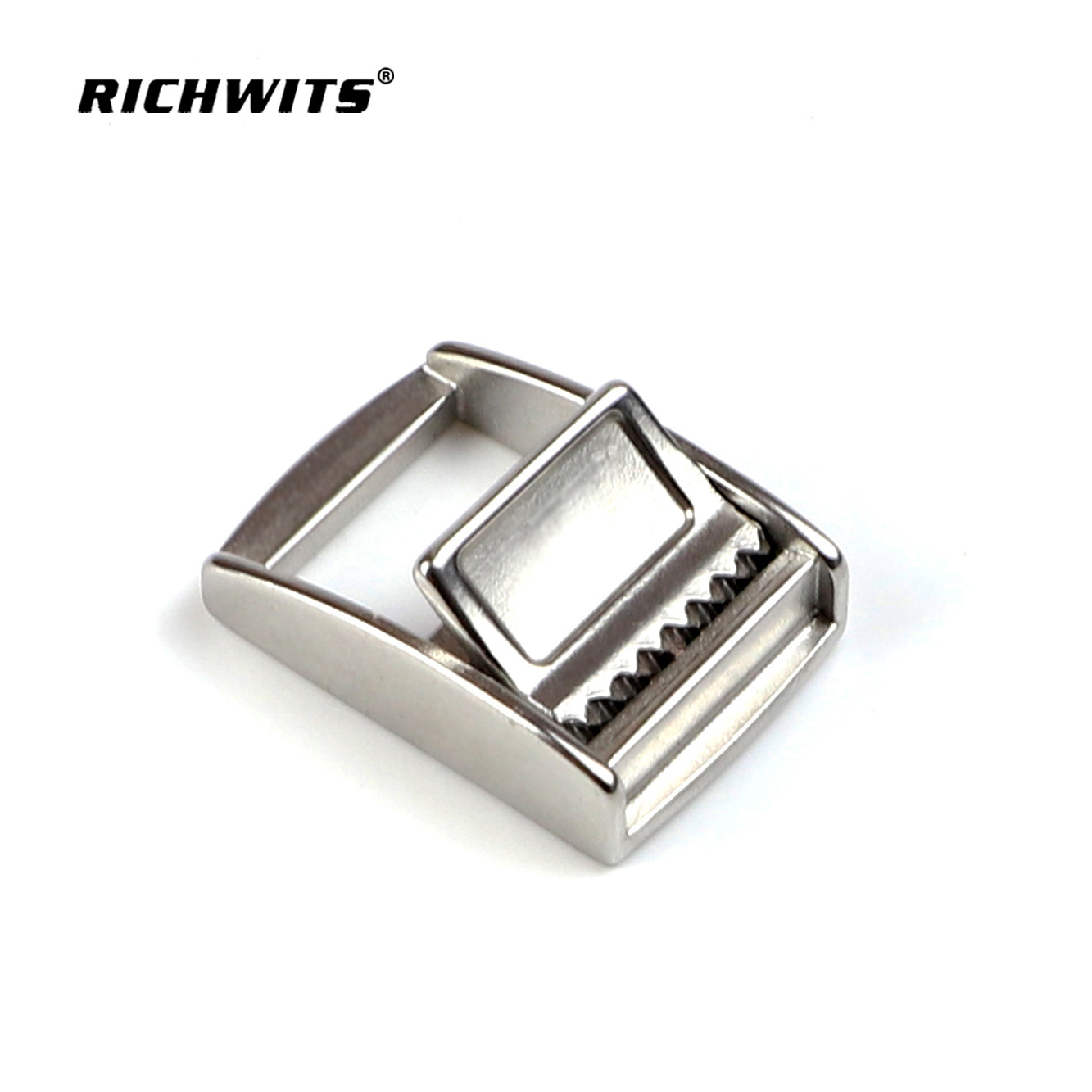

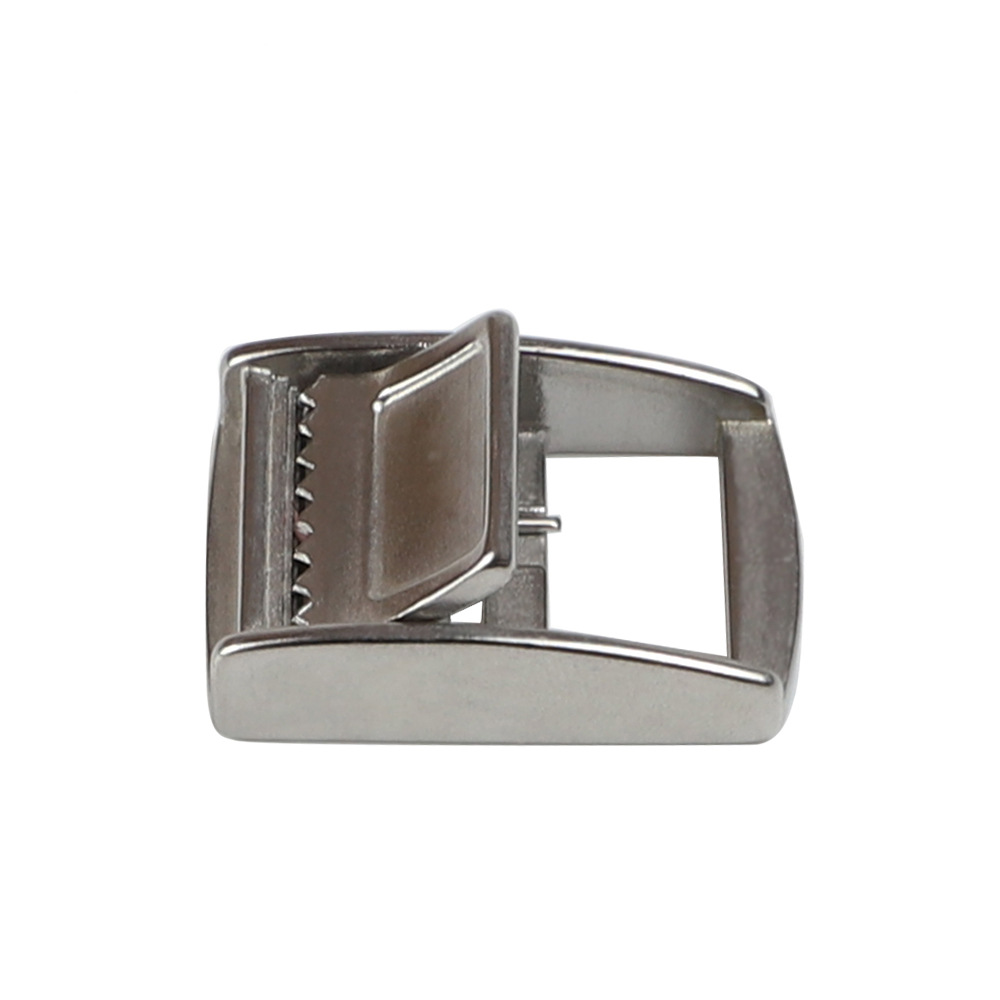

Square Cam Buckles – 304/316 Stainless-Steel Buckle – Model ZB7005 Series
RICHWITS ZB7005 gives you a compact, rectangular webbing tensioner that works from yacht sail covers to roof-rack cargo straps.Investment-cast from 304 stainless steel (316 on request), then CNC-machined and mirror-polished for lifetime immunity to salt-spray, UV and tropical humidity.
Square body design sits flush against flat surfaces; cam-lever action grips 20–38 mm webbing at 150–350 kgf—no tools, no slip, no fray.

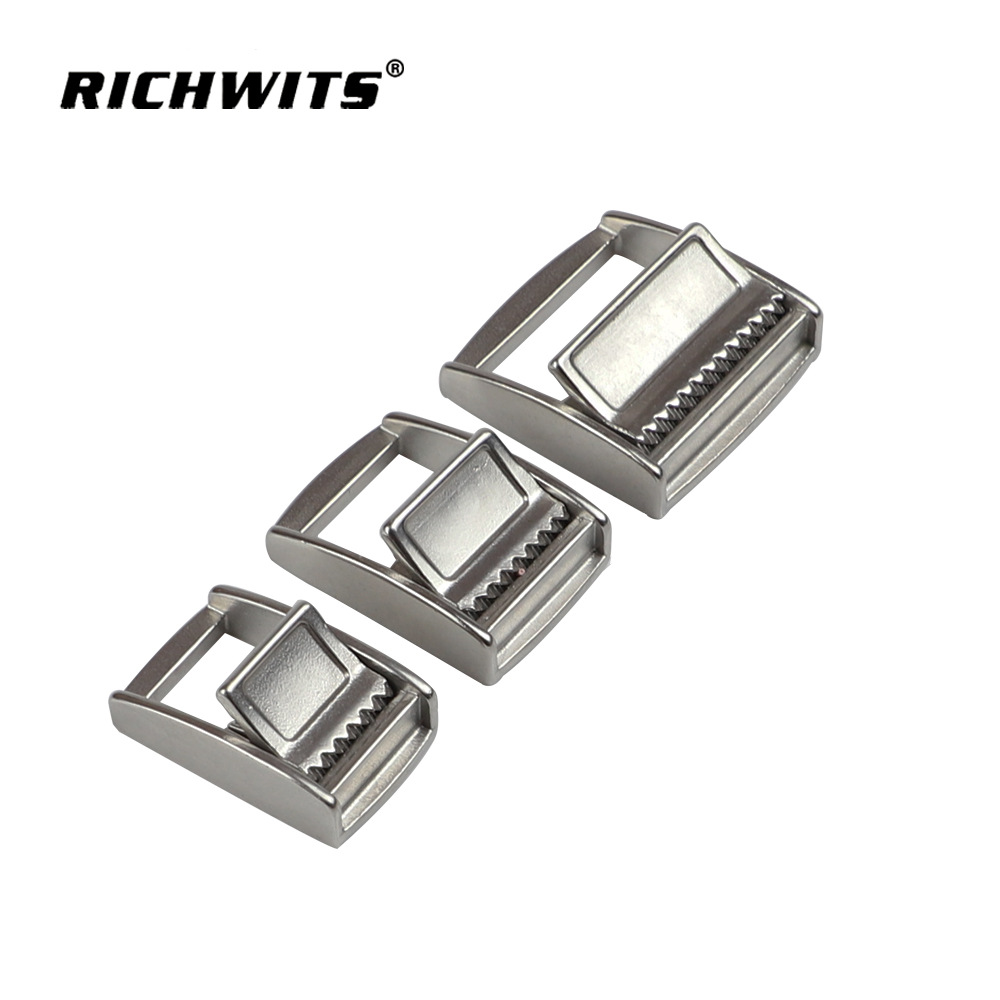

Three sizes weigh only 41–67 g—perfect for marine, automotive or architectural applications where low-profile, strong fastening is essential.

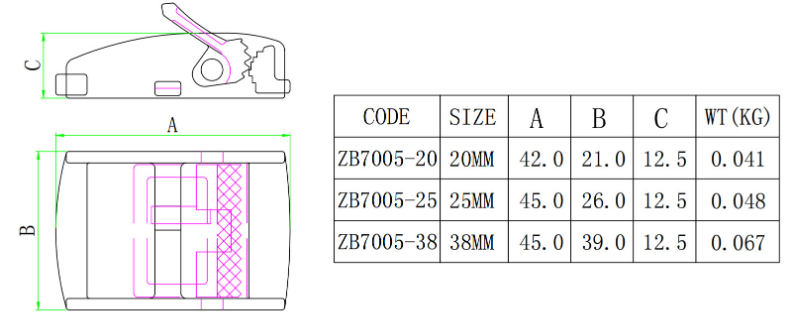

Dimension & Working Loads
Key Features & Benefits
304/316 SS Investment-Cast Body – zero welds, zero rust; 316 on request for salt-water.
Square Low-Profile Design – 12.5 mm height sits flush under covers, lids or rack bars.
Cam-Lever Quick Release – thread webbing, press lever—3-second operation, no tools.
Serrated Cam Jaw – grips polyester webbing at 350 kgf; no slip, no damage to strap.
Mirror-Polished & Passivated – salt rinses off; no pitting or tea staining.
Silent Operation – stainless cam + nylon washer—no squeak, no rattle.
Factory-Direct Price – 30 % cheaper than brass or zinc equivalents; MOQ 500 pcs.
Usage Scenarios
Yacht & Boat Covers – 25–38 mm webbing; 250–350 kgf holds sail covers in 40 kt gusts.
Roof Rack & Cargo Straps – 25–38 mm webbing; 250–350 kgf for bikes, kayaks or luggage.
Architectural Shade Sails – square body mounts flush to frame; clean aesthetics.
Hammock & Camping Gear – quick-tension and release for portable setups.
Certifications / Testing
Holding-force tested to 2 × working load (300–700 kgf)
Salt-spray 480 h (304) / 720 h (316) per ASTM B117
Passivated per ASTM A967
Webbing abrasion test: 10 000 cycles, zero cam damage
Why Choose RICHWITS
Factory-Direct – wholesale only, 30 % cost saving vs. brass/zinc equivalents.
In-Stock – 700 000 pcs ready, MOQ 500 pcs, 48 h dispatch.
Fast Logistics – FedEx/UPS/DHL global 3-7 day delivery.
OEM/ODM – custom 316 material, logo or rubber grip within 2 weeks.
Test Certificates – mill cert, salt-spray, holding-force report supplied free.
FAQ
Q1: Will 304 SS really never rust?
A1: 304 resists most salt-air; choose 316 for continuous immersion—polish yearly to keep the shine.
Q2: What holding force per buckle?
A2: 150 kgf (20 mm) to 350 kgf (38 mm); divide cargo load by number of buckles—safety factor 2:1.
Q3: Can I use 25 mm webbing in the 38 mm buckle?
A3: Yes—cam jaw adjusts to grip 20–38 mm; centred webbing gives max holding force.
Q4: Will the cam slip under vibration or shock load?
A4: No—serrated cam + spring preload grips tighter under load; tested 24 h vibration 50–500 Hz, zero slip.
Q5: Are spare 316 versions available?
A5: Yes—316 upgrade on request, MOQ 500 pcs, 25 % price adder.
Q6: Do you offer test certificates?
A6: Mill certificate for 304/316 SS, salt-spray report, and holding-force certificate supplied free on request.
