Product Overview

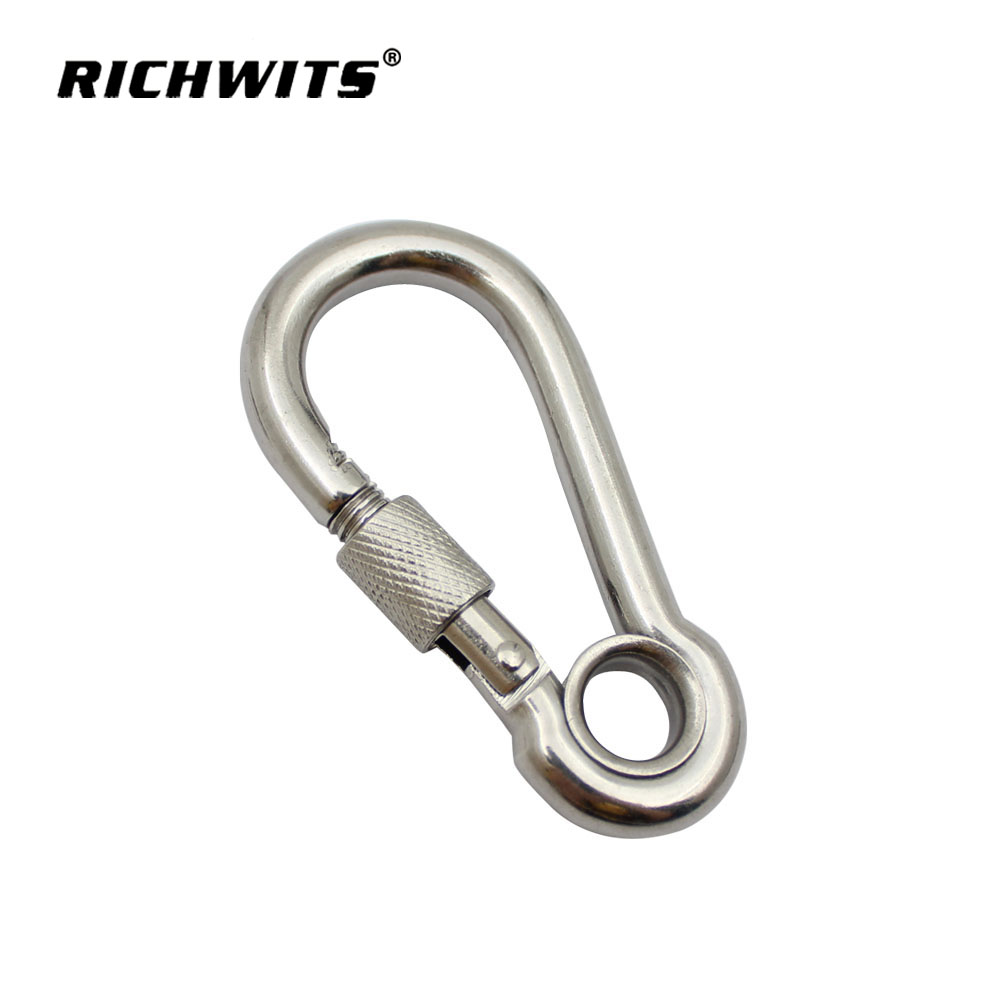

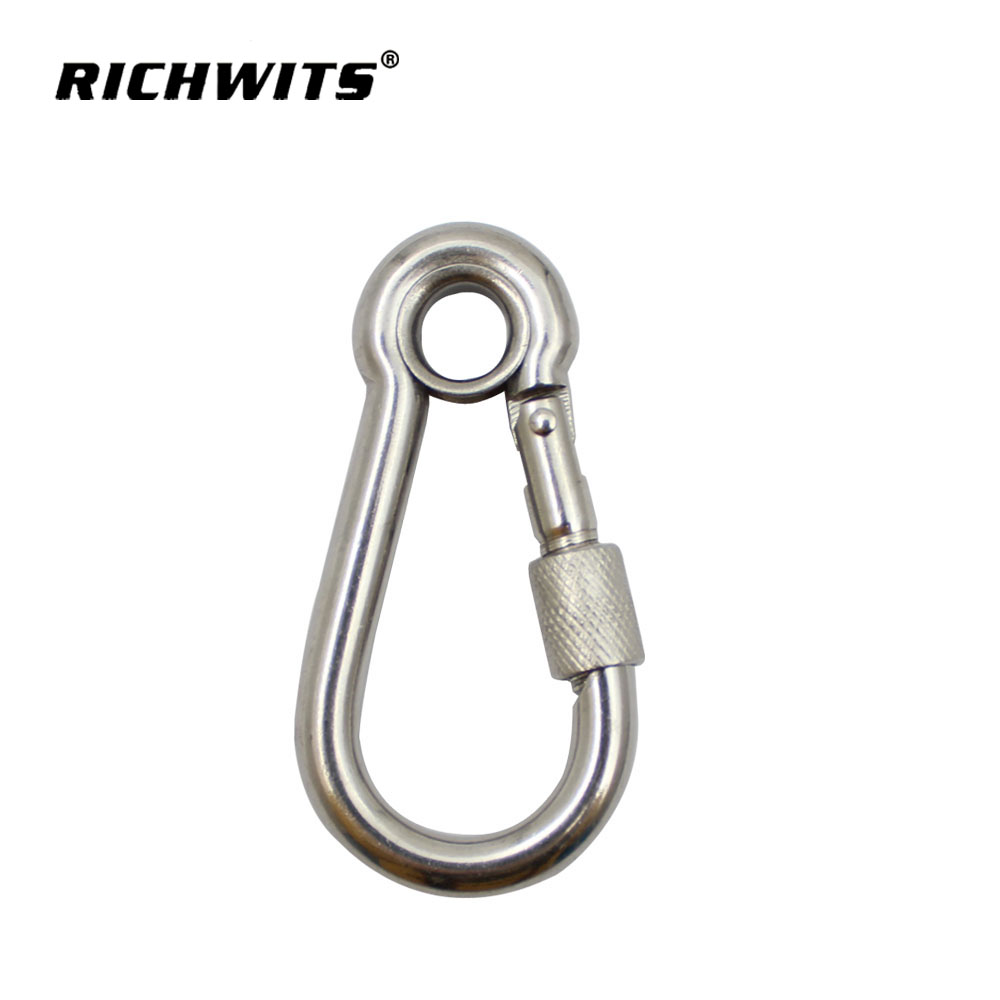

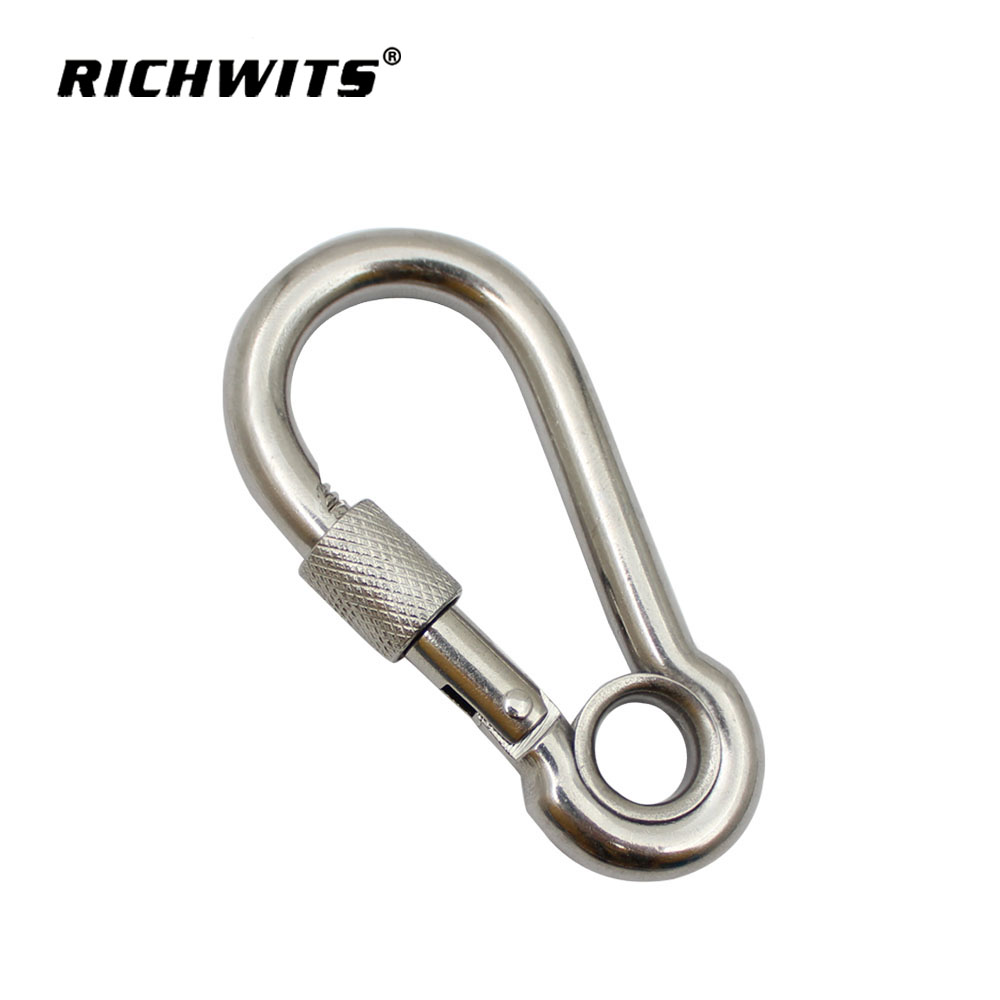

Hardware Accessories 316/304 Stainless-Steel Carabiner Hook with Eyelet – Model ZB6214 Series
RICHWITS ZB6214 gives you a marine-grade, eyelet-ended carabiner that locks with a twist—perfect for anchor rodes, stage rigging, hammock suspension or heavy-duty key rings.
Precision-investment-cast from 304 or 316 stainless steel (user-selectable), then mirror-polished and passivated for lifetime immunity to salt-spray, rain and urban humidity.
Knurled screw-lock sleeve covers the gate: hand-tighten ½ turn for locked mode, back-off for instant access—no tools, no lost pins.

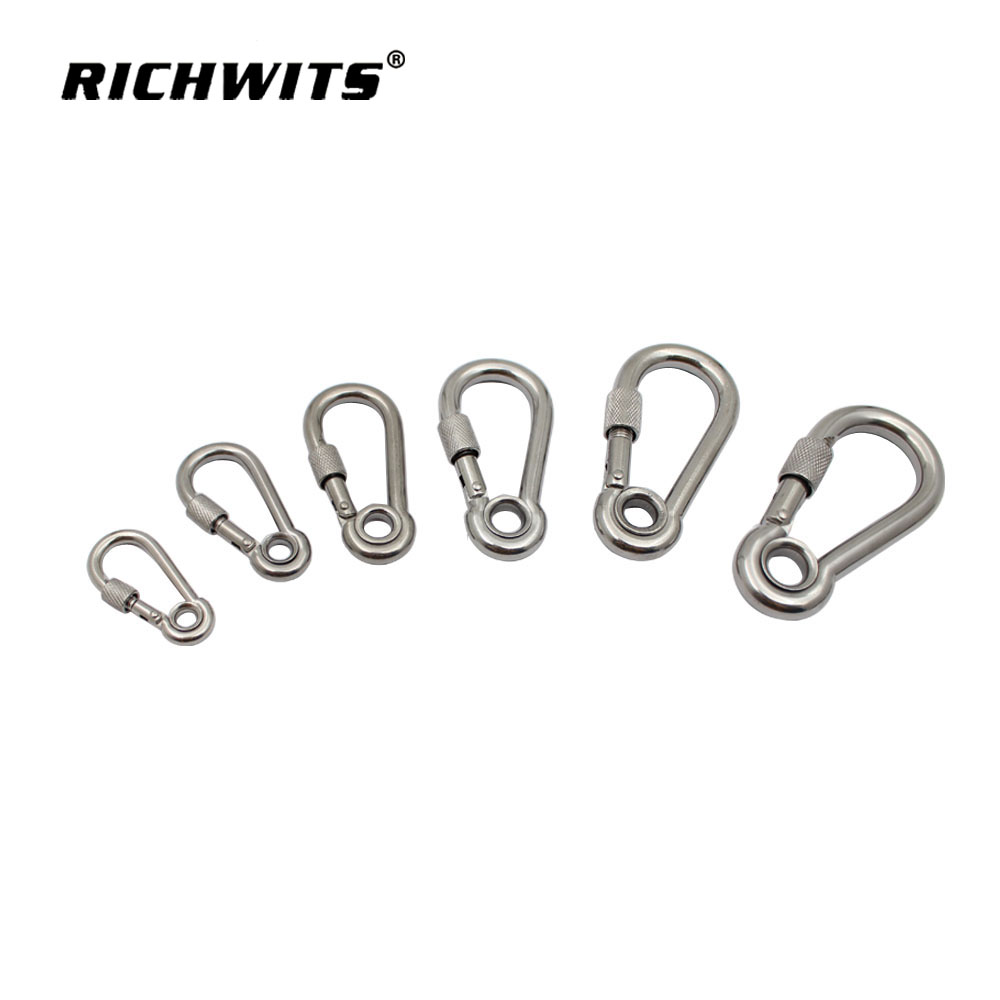

Fixed eyelet at base accepts shackles, swivels or rope thimbles; nine sizes (5 mm – 13 mm rod) deliver working-load limits from 50 kgf to 350 kgf.
Dimension & Working Loads
Key Features & Benefits
304/316 SS One-Piece Casting – zero welds, zero rust; 316 on request for continuous immersion.
Knurled Screw-Lock Sleeve – hand-tighten ½ turn for locked mode; back-off for instant access—no tools.
Fixed Eyelet Base – accepts shackles, swivels or rope thimbles; no extra hardware needed.
Mirror-Polished & Passivated – salt rinses off; no pitting or tea staining.
Large Gate Opening – gate = rod Ø + 4 mm; accepts chain, webbing or harness.
Silent Operation – stainless sleeve; no jingle, no accidental unlock.
Size for Every Load – from 19 g mini-lock (5 mm) to 381 g mega-lock (13 mm).
Usage Scenarios
Anchor Bridle & Mooring Chain – 12–13 mm rated 300–350 kgf; eyelet accepts 10 mm shackle.
Hammock / Swing Suspension – 8–10 mm rated 125–200 kgf; locked mode for overnight safety.
Stage & Aerial Rigging – 10–12 mm rated 200–300 kgf; eyelet connects to swivel pulley.
Heavy-Duty Key Rings – 5–6 mm rated 50–70 kgf; 32 g weight is pocket-friendly.
Certifications / Testing
Why Choose RICHWITS
Factory-Direct – wholesale & retail welcomed, 25 % cost saving vs. forged steel equal.
In-Stock – 300 000 pcs ready, MOQ 100 pcs, 48 h dispatch.
Fast Logistics – FedEx/UPS/DHL global 3-7 day delivery.
OEM/ODM – custom 316 material, logo or coloured sleeve within 2 weeks.
Test Certificates – mill cert, salt-spray, proof-load report supplied free.
FAQ
Q1: Will 304 SS really never rust?
A1: 304 resists most salt-air; choose 316 for continuous immersion—polish yearly to keep the shine.
Q2: What safe working load (SWL)?
A2: From 50 kgf (5 mm) to 350 kgf (13 mm); divide total load by number of locks—safety factor 4:1.
Q3: Can I use the 5 mm for a key-ring?
A3: Yes—9 mm gate clears standard split-rings; 19 g weight is pocket-invisible.
Q4: Will the sleeve unscrew under vibration?
A4: No—standard hand-torque plus ¼ turn stays tight; tested 24 h vibration 50–500 Hz, zero unlock.
Q5: Are spare 316 versions available?
A5: Yes—316 upgrade on request, MOQ 500 pcs, 20 % price adder.
Q6: Do you offer test certificates?
A6: Mill certificate for 304/316 SS, salt-spray report, and proof-load certificate supplied free on request.
