Product Overview

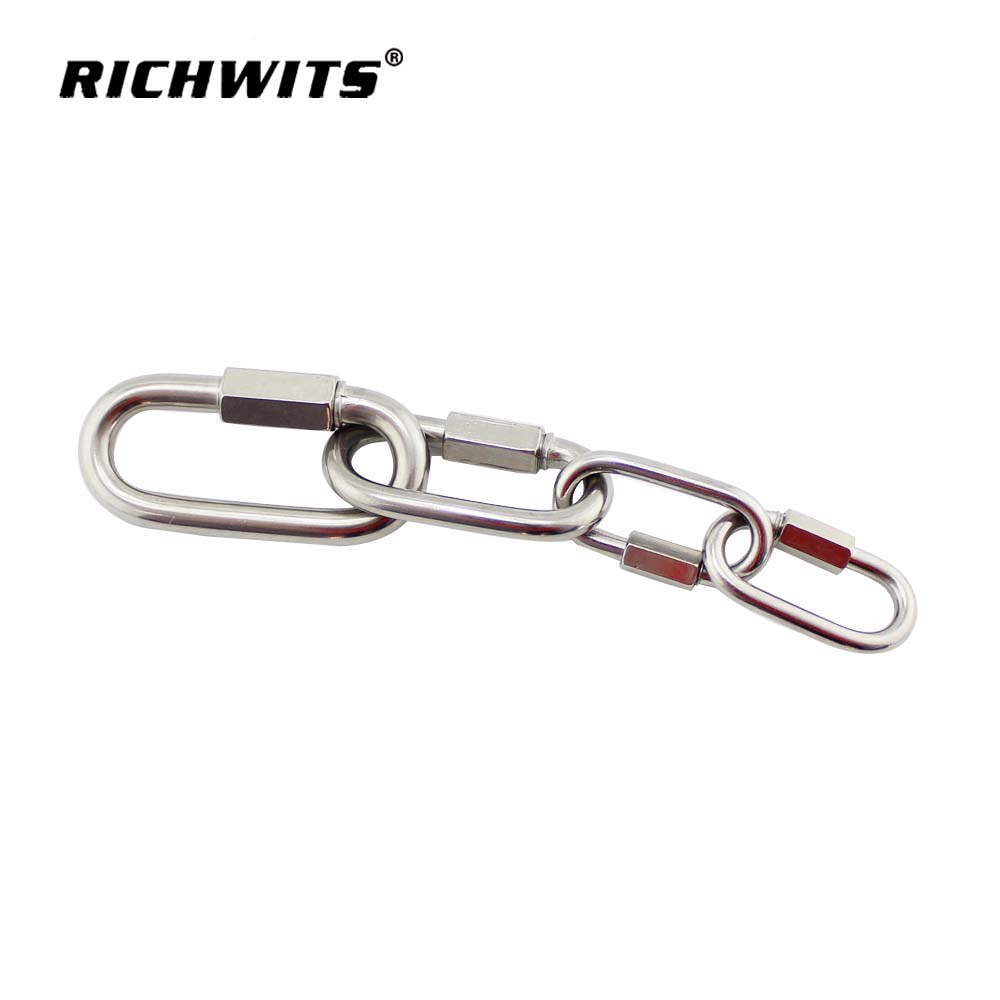

Rigging Hardware Quick Link / Stainless-Steel 304 Snap Hook Carabiner Hook – Model ZB6210 Series
RICHWITS ZB6210 gives you a tool-free, double-sided gate that works from anchor chains to gym rigs.
Precision-cast from marine-grade 304 stainless steel (316 optional on request), then tumbled and electropolished for lifetime immunity to salt-spray, chlorine and urban humidity.

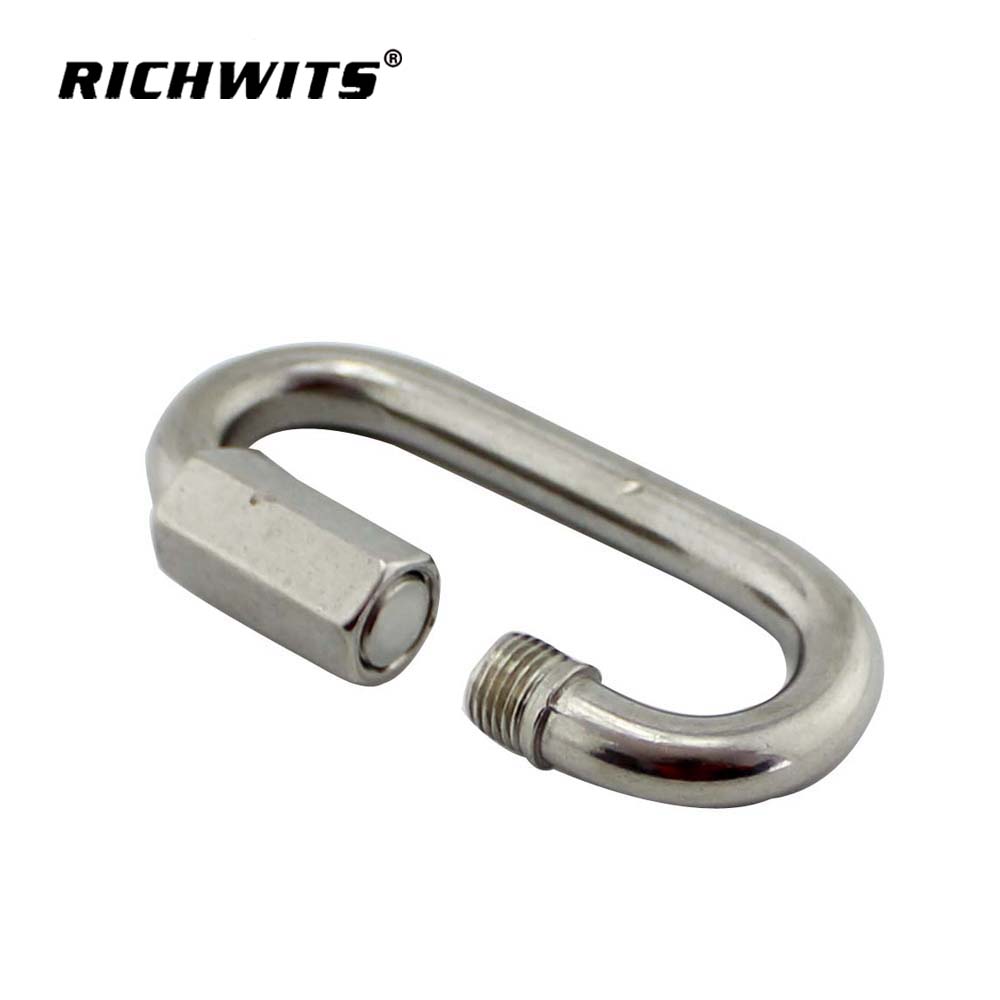

Straight-gate quick-link design: unscrew ½ turn, drop in line or chain, retighten by hand—no tools, no lost pins.

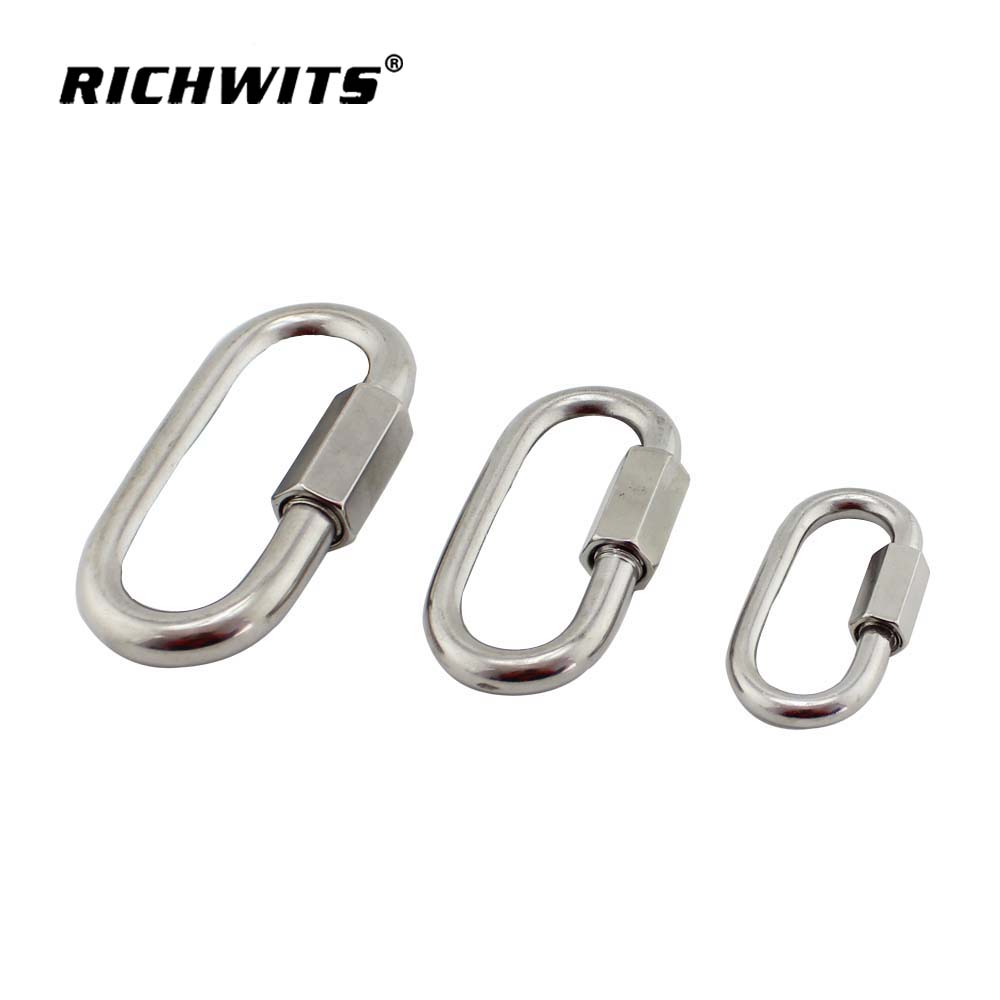

Twelve sizes (3.5 mm – 14 mm rod) cover working-load limits from 80 kgf to 1 400 kgf—perfect for anchor bridles, hammock suspension, stage rigging or heavy-duty key rings.

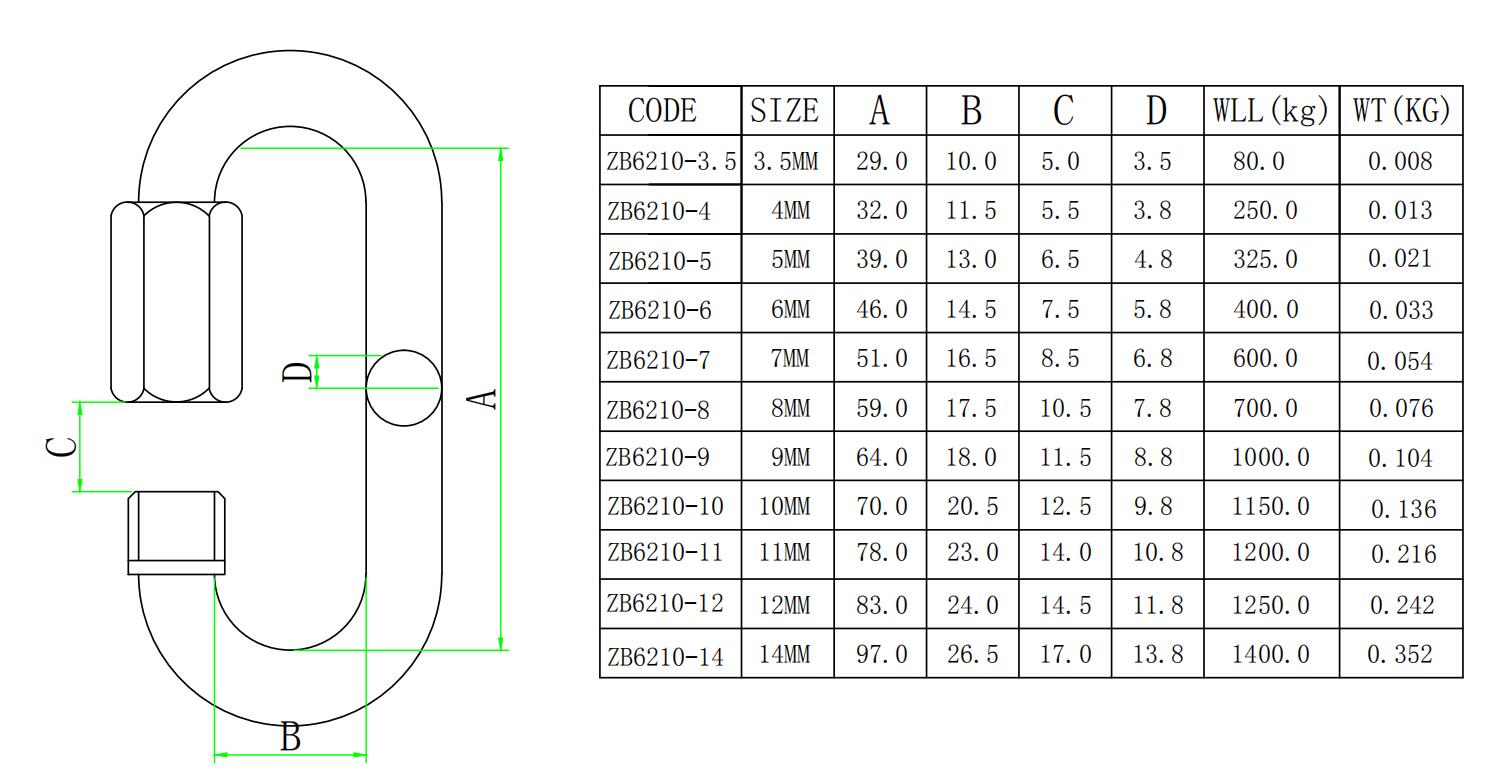

Dimension & Working Loads

Key Features & Benefits

1. 304/316 SS One-Piece Casting – zero welds, zero rust; choose 316 for salt-water on request.

2. Hand-Tight Quick Link – unscrew ½ turn, drop in line, retighten by hand—no tools, no lost pins.

3. Precision CNC Threads – stay tight under vibration; re-torque with 19 mm spanner for max load.

4. Straight-Gate Design – large throat opening; accepts chain, shackle or harness webbing.

5. Mirror-Electropolished – salt rinses off; no pitting or tea staining.

6. Size for Every Load – from 8 g mini-link (3.5 mm) to 352 kgf mega-link (14 mm).

7. Cost-Effective 304 Std – 30 % cheaper than 316 while still marine-ready.

Usage Scenarios

• Anchor Bridle & Mooring Chain – 9–14 mm rated 1 000–1 400 kgf; hand-tighten on deck.

• Hammock / Swing Suspension – 6–8 mm rated 400–700 kgf; double-gate gives redundancy.

• Stage & Gym Rigging – 10–12 mm rated 1 150–1 250 kgf; certified for aerial silks.

• Heavy-Duty Key Rings – 4–5 mm rated 250–325 kgf; 13 g weight is pocket-friendly.

Certifications / Testing

• Proof-loaded to 2 × WLL (160–2 800 kgf)

• Salt-spray 720 h (316) / 480 h (304) per ASTM B117

• Passivated per ASTM A967

Why Choose RICHWITS

• Factory-Direct – wholesale & retail welcomed, 25 % cost saving vs. forged steel equal.

• In-Stock – 300 000 pcs ready, MOQ 100 pcs, 48 h dispatch.

• Fast Logistics – FedEx/UPS/DHL global 3-7 day delivery.

• OEM/ODM – custom 316 material, logo or coloured sleeve within 2 weeks.

• Test Certificates – mill cert, salt-spray, proof-load report supplied free.

FAQ

Q1: Will 304 SS really never rust?
A1: 304 resists most salt-air; choose 316 for continuous immersion—polish yearly to keep the shine.

Q2: What safe working load (SWL)?
A2: From 80 kgf (3.5 mm) to 1 400 kgf (14 mm); divide total load by number of links—safety factor 4:1.

Q3: Can I use the 4 mm for a key-ring?
A3: Yes—5 mm gate clears standard split-rings; 13 g weight is pocket-invisible.

Q4: Will the gate unscrew under vibration?
A4: No—CNC threads stay tight; hand-torque plus ¼ turn with 19 mm spanner for max load.

Q5: Are spare 316 versions available?
A5: Yes—316 material on request, MOQ 500 pcs, 15 % price adder.

Q6: Do you offer test certificates?
A6: Mill certificate for 304/316 SS, salt-spray report, and proof-load certificate supplied free on request.
