ZB1301
RICHWITS
ZB1301
| size: | |
|---|---|
| Availability: | |
| Quantity: | |
| Feature | Description |
|---|---|
| Material | UV-stabilized marine-grade plastic, round textured surface |

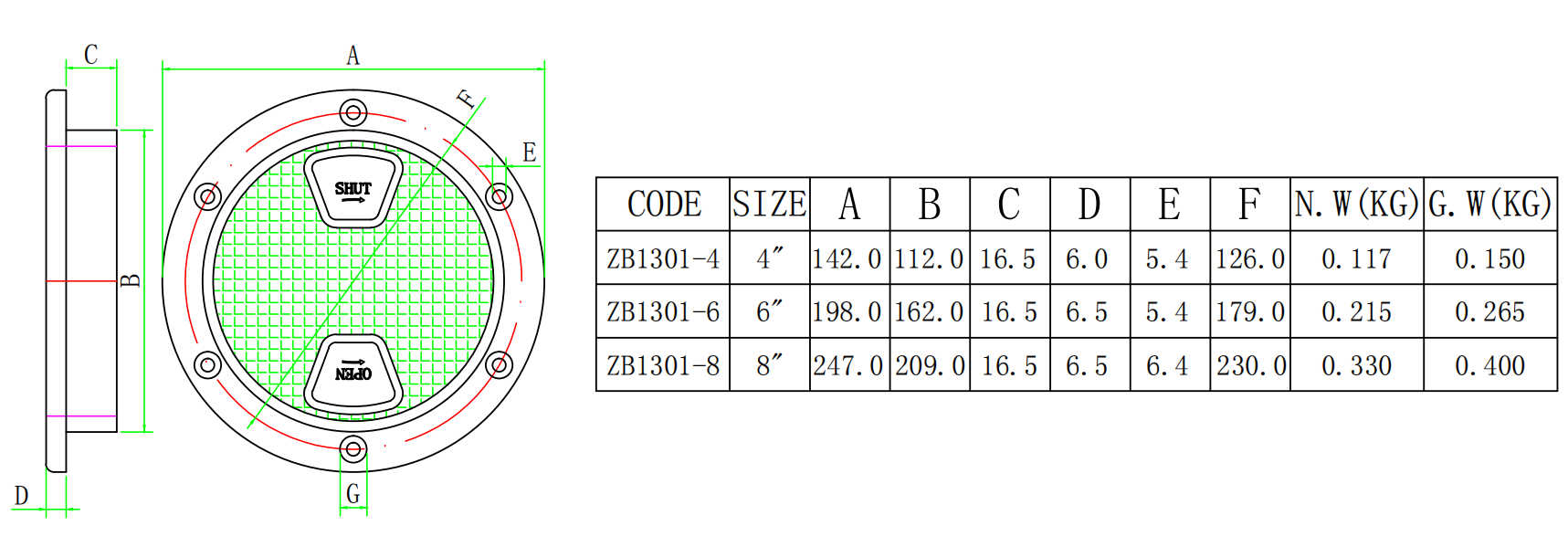

| Opening Ø | 4 in (102 mm) / 6 in (152 mm) / 8 in (203 mm) |
| Style | Snap-in gasket + 6 countersunk #8 screws (snap & screw-in hybrid) |
| Water-tightness | Closed-cell gasket integrated; apply silicone to screw holes for absolute seal |
| Flange Detail | Beveled edge + pry-out notch, pre-drilled for #8 fasteners |
| Access Purpose | Inspection of shut-off valves, back-fastenings, tank cleaning, cable routing |
| Advantage | Marine / Architectural Benefit |
|---|---|
| Lightweight & Easy Handling | 60 % lighter than 316 SS covers → lower displacement, better fuel economy |
| Excellent Corrosion & Chemical Resistance | Zero rust in seawater, oil, fuel, bleach; no anti-corrosion maintenance |
| Cost-Effective & Low Maintenance | 30–40 % cheaper than metal; smooth surface rinses clean with fresh water |

Application Scenarios
Marine & Yacht Hardware – Locking & sealing deck hatches, fish-holds, battery boxes, water-tank accesses.
Factory Safety Locking – Inspection ports on safety gates, machine guards, production-line enclosures.
Home & Architectural – Garage-door clean-outs, awning fixing ports, balcony drainage inspection.
Why does stainless steel have magnetism?
Austenitic grades are normally non-magnetic, but cold-working can induce martensite → weak magnetism. Use spectral or ID-fluid testing for accurate grade check.
Why does stainless steel rust?
Surface contaminants (iron dust, chloride, acids) break the passive film. Regular fresh-water rinse and avoid contact with carbon steel prevents corrosion.
Can the cover be walked on?
Yes, flange distributes load; rated for 120 kg static point load when fully bedded on silicone.
Do I need sealant on the snap-in part?
Snap gasket gives splash-proof seal; for hose-down or deck-wash areas, add silicone to screws for 100 % watertightness.
Is the plastic UV-resistant for tropical climates?
UV-stabilized ASA/PC blend, 5-year UV-B test shows <3 % color fade.
Can I get a square version or different color?
Square model ZB1302 and custom RAL colors available from 50 pcs MOQ, 3-week lead time.
