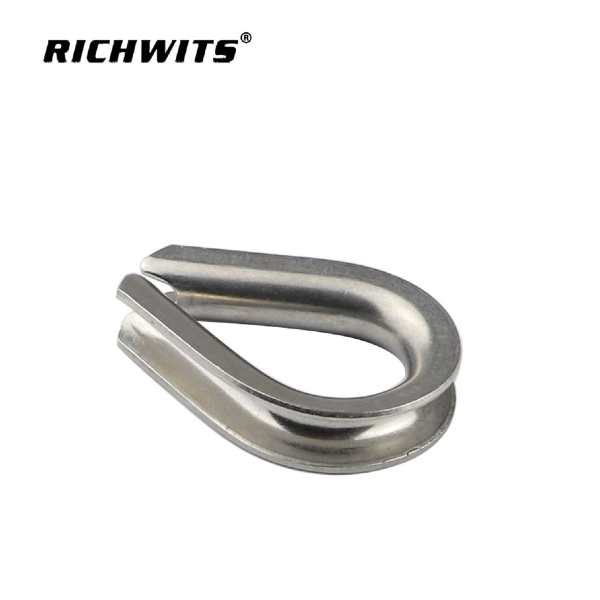

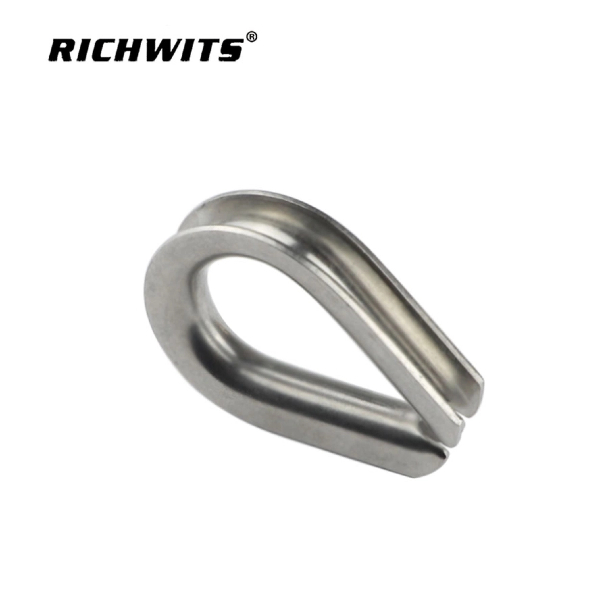

Rigging thimbles have long been essential components in wire rope and cable systems, serving as protective fittings that maintain the integrity of rope loops while bearing significant loads. Traditionally, rigging thimbles were made from standard steel or low-grade stainless alloys, primarily focusing on basic functionality and the simple need to prevent rope fraying at connection points. Over the years, however, the demand for higher performance, longer lifespan, and enhanced safety has driven innovations in material science, structural design, and manufacturing techniques.
Modern rigging applications in marine, industrial, construction, and recreational sectors demand thimbles that withstand extreme environmental conditions, heavy dynamic loads, and prolonged exposure to corrosive elements. In addition, the increasing global emphasis on safety regulations, material efficiency, and product standardization has accelerated the adoption of advanced thimble designs that go beyond traditional dimensions and shapes. The evolution of rigging thimbles now emphasizes not only strength and durability but also ergonomic installation, precise tolerances, and customization for diverse applications.
This article explores the latest innovations in rigging thimbles, examining advanced materials, structural improvements, precision manufacturing techniques, customization options, sustainability, and future trends. By understanding these developments, engineers, riggers, and procurement professionals can make informed decisions when selecting high-quality rigging thimbles for critical applications, ensuring both operational efficiency and long-term reliability.
2. Advanced Materials and Coatings
Material choice plays a pivotal role in the performance of rigging thimbles. Modern rigging thimbles leverage high-grade materials and protective coatings to enhance durability, corrosion resistance, and load-bearing capacity. Material innovation directly influences the mechanical properties of thimbles, such as tensile strength, yield strength, and fatigue resistance, all of which are critical for demanding rigging applications.
2.1 High-Grade Stainless Steel
One of the most significant advancements is the widespread adoption of 304 and 316 stainless steel. These alloys offer superior corrosion resistance, particularly in marine environments where exposure to saltwater accelerates degradation. Compared to traditional carbon steel thimbles, stainless steel options provide:
Resistance to pitting, rust, and oxidation
Extended lifespan in outdoor and high-humidity applications
Consistent mechanical performance under dynamic and cyclic loads
High-grade stainless steel also ensures that the thimble maintains its structural integrity even under frequent stress reversals, which is critical for wire ropes used in cranes, sailboats, and suspension systems.
2.2 Marine-Grade Alloys and Specialty Metals
Innovations in alloy composition have led to marine-grade and high-strength alloys for specialized rigging thimbles. These materials combine tensile strength, flexibility, and corrosion resistance, making them suitable for high-load lifting, offshore applications, and industrial rigging operations. Some thimbles incorporate nickel or molybdenum alloying to further enhance corrosion resistance in highly saline or chemically aggressive environments.
2.3 Protective Coatings
In addition to base material selection, advanced coatings such as zinc plating, powder coating, and anti-UV treatments are increasingly applied to rigging thimbles to provide an extra layer of protection. These coatings:
Reduce the impact of abrasive friction between the wire rope and thimble surface
Improve the thimble’s resistance to environmental degradation, including oxidation and UV-induced surface fatigue
Maintain surface aesthetics for visible applications, especially in high-end marine or architectural installations
Overall, material and coating innovations enhance both the functional and long-term performance of rigging thimbles, allowing them to operate safely in the harshest environments without frequent maintenance.
3. Enhanced Structural Designs
Structural design innovations have transformed rigging thimbles from simple loops to precision-engineered components optimized for safety, efficiency, and load management.
3.1 Reinforced Shoulder Shapes
Modern rigging thimbles often feature reinforced shoulders that distribute the load evenly across the thimble body. This design minimizes stress concentration points that can lead to wire rope wear or deformation at the loop connection. By spreading forces across a broader contact area, reinforced shoulders also allow for higher load ratings without increasing material thickness, making thimbles both stronger and lighter.
3.2 Lightweight High-Strength Designs
The development of lightweight yet strong thimbles is a notable innovation. By optimizing geometry, manufacturers reduce the amount of material used while maintaining structural integrity. This is particularly advantageous in applications such as sailboat rigging, outdoor suspension systems, and industrial hoisting, where every kilogram counts. Lightweight thimbles improve installation efficiency and reduce the overall weight of rigging assemblies without sacrificing load capacity or durability.
3.3 Ergonomic and Installation-Friendly Shapes
Ergonomic designs have become increasingly common in modern rigging thimbles. Curved, contoured shapes facilitate smoother rope entry and exit, simplifying installation and minimizing the risk of hand injuries. These features also reduce the potential for kinking or fraying, enhancing both operator safety and the long-term performance of wire rope assemblies.
4. Precision Manufacturing Techniques
High-quality rigging thimbles rely on precision manufacturing to meet stringent dimensional and performance standards. Small variations in dimensions can significantly affect load distribution, rope wear, and overall system reliability.
4.1 CNC Machining and Laser Cutting
Computer Numerical Control (CNC) machining and laser cutting enable exact shaping and uniformity of rigging thimbles. These techniques ensure:
Consistent dimensions across large production batches
Tight tolerances that allow seamless fit with wire rope diameters
Smooth surfaces that minimize abrasion and mechanical wear
Precision cutting also allows for subtle geometrical enhancements that improve load distribution and reduce bending stresses in the wire rope.
4.2 Advanced Casting Techniques
Modern thimbles often use die casting and investment casting to create complex geometries without compromising strength. Casting allows integration of features such as reinforced lips, ergonomic curves, and modular mounting points efficiently. Advanced casting methods also improve surface finish quality, reducing post-processing requirements and increasing production efficiency.
4.3 Impact on Performance
Precision manufacturing improves load distribution, reduces premature wear, and ensures compatibility with various hardware components, such as clips, shackles, and turnbuckles. The ability to produce uniform thimbles with predictable mechanical properties is critical for applications requiring high reliability and safety.
Comparison of Manufacturing Techniques for Rigging Thimbles
Technique
Key Benefits
Typical Applications
CNC Machining
High precision, tight tolerances
Custom thimbles, industrial rigging
Laser Cutting
Smooth edges, repeatable quality
Marine rigging, decorative hardware
Die Casting
Complex shapes, durable, lightweight
Standard industrial thimbles
Investment Casting
Fine details, corrosion resistance
High-performance marine applications
5. Customization and Modular Solutions
Modern rigging thimbles are increasingly customizable, enabling engineers to tailor solutions to specific project requirements.
5.1 Custom Wire Rope Sizes
Thimbles can now be manufactured to fit specific wire rope diameters, ensuring an exact fit that maximizes load-bearing efficiency. Precise sizing also reduces friction and wear at the rope-thimble interface, which is critical for dynamic or cyclic load environments.
5.2 Modular and Interchangeable Designs
Modular designs allow thimbles to be integrated easily with clips, shackles, turnbuckles, and other rigging hardware, increasing versatility. Standardized modular features reduce inventory complexity and facilitate rapid assembly or replacement in the field.
5.3 Advantages for Different Sectors
The flexibility offered by customizable and modular rigging thimbles benefits multiple industries:
⦁ Industrial: Optimized for machinery, cranes, and heavy-duty lifting
⦁ Marine: Adaptable to boats, docks, and offshore platforms
⦁ Recreational: Ideal for suspension systems, adventure parks, and rope structures
By leveraging these innovations, rigging thimbles can be precisely matched to operational needs, enhancing safety, reliability, and system longevity.
6. Sustainability and Eco-Friendly Production
Sustainability is increasingly influencing rigging thimble design and production, as manufacturers seek to reduce environmental impact while maintaining high performance.
6.1 Recyclable Materials
High-grade stainless steel and marine alloys used in modern thimbles can be fully recycled, promoting circular production and minimizing waste. This approach aligns with global trends toward environmentally responsible manufacturing.
6.2 Energy-Efficient Manufacturing
Advanced casting, machining, and finishing processes are designed to reduce energy consumption. These techniques not only lower operational costs but also reduce carbon emissions associated with production.
6.3 Longevity and Reduced Waste
Long-lasting thimbles reduce the need for frequent replacements, contributing to less material waste and lower transportation-related emissions. Enhanced durability ensures that a single thimble can perform reliably over extended periods, supporting eco-friendly procurement practices.
7. Future Directions in Rigging Thimble Innovation
The future of rigging thimbles is likely to be defined by further integration of technology, advanced materials, and design optimization.
7.1 Smart and Sensor-Integrated Thimbles
Emerging concepts include embedded load sensors in thimbles to monitor tension and detect stress in real-time. Such smart components could revolutionize rigging systems by enabling predictive maintenance and increasing safety in industrial, marine, and construction applications.
7.2 Nanotechnology and Hybrid Materials
Nanostructured coatings and hybrid alloys are being researched to improve tensile strength, corrosion resistance, and fatigue durability. These innovations aim to produce thimbles capable of handling higher loads without increasing weight.
7.3 Lightweight and High-Performance Composites
Future thimbles may incorporate composite materials to achieve ultra-lightweight yet high-strength performance. This can reduce installation labor, minimize system weight, and enhance flexibility across a variety of rigging scenarios.
8. Conclusion
In recent years, rigging thimbles have become highly engineered components that integrate advanced material science, innovative structural designs, precision manufacturing, and sustainable production practices. High-quality materials, reinforced geometries, tight tolerances, and customizable modular features all contribute to thimbles that are stronger, safer, and more durable than ever. As industries demand greater reliability and performance, modern rigging thimbles are also embracing smart features and high-performance alloys to meet these evolving requirements.
For engineers, riggers, and procurement professionals seeking reliable solutions, we at Wudi Zhibo Metals Co., Ltd. specialize in producing precision-engineered rigging thimbles that excel in marine, industrial, and recreational applications. Our products are designed to ensure optimal operational efficiency, extended service life, and maximum safety in critical environments. Contact us to explore our range of innovative rigging thimbles and discover how our expertise and high-quality manufacturing can support your specific application needs.
9. FAQ
Q1: What materials are used in modern rigging thimbles? A1: High-grade stainless steel (304, 316), marine-grade alloys, and corrosion-resistant coatings provide superior durability, corrosion protection, and consistent mechanical performance.
Q2: How do structural improvements benefit rigging thimbles? A2: Reinforced shoulders and ergonomic curves evenly distribute load, simplify installation, and prevent wire rope wear, enhancing both safety and operational lifespan.
Q3: Are rigging thimbles customizable for specific applications? A3: Yes, modern thimbles can be tailored to wire rope diameters and integrated with modular hardware, allowing adaptability across industrial, marine, and recreational settings.
Q4: What role does precision manufacturing play? A4: CNC machining, laser cutting, and advanced casting techniques ensure tight tolerances, consistent dimensions, and reliable load-bearing performance, essential for high-stress applications.
Q5: How are rigging thimbles becoming more sustainable? A5: Manufacturers use recyclable materials, energy-efficient production methods, and long-lasting designs to minimize environmental impact while maintaining performance.
Q6: What future innovations can be expected? A6: Smart sensor integration, hybrid alloys, nanotechnology coatings, and lightweight composites are likely to shape next-generation rigging thimbles, increasing efficiency, safety, and adaptability.
