Product Overview
The RICHWITS Stainless Steel Diamond Pad Eye Plate (Model: ZB6301) is a top-tier piece of marine rigging hardware engineered for durability, versatility, and reliable performance. Crafted from high-grade SS304 or SS316 stainless steel, this product is designed to meet the demands of both residential and industrial applications, including shade sail installation, marine vessel rigging, and heavy-duty fixing tasks. Available in four practical sizes (5mm, 6mm, 8mm, 10mm) and priced between $$0.23$$1.15 per PCS, it offers exceptional value for DIY enthusiasts, contractors, and marine professionals alike. As a core product from Zhibo Metal Products Co., Ltd.—a leading manufacturer of stainless steel rigging hardware—it boasts in-stock availability, low MOQ, and consistent quality that aligns with global industry standards.
Key Features & Benefits
High-Grade Stainless Steel Construction
Made from industrial-grade SS304 or SS316 stainless steel, this diamond pad eye plate delivers superior resistance to corrosion, rust, and harsh weather conditions. Whether exposed to saltwater, humidity, or outdoor elements, it maintains structural integrity, making it ideal for marine applications and long-term outdoor use.
Versatile Size Options for Multiple Loads
Offered in 5mm, 6mm, 8mm, and 10mm sizes, the product caters to diverse load requirements—from lightweight shade sail mounting (5mm) to heavy-duty marine rigging (10mm). Each size features precision-engineered dimensions to ensure a perfect fit with corresponding screws and fixtures.
Reinforced Installation with Expansion Accessories
Equipped with extra plastic expansion plugs, the shade sail installation kit ensures screws attach more firmly to walls, wooden surfaces, or concrete. This reinforced design prevents loosening over time, enhancing safety and stability for all fixed items.
Universal Compatibility with Rectangular/Square Shade Sails
Designed specifically for rectangular and square shade sails, the pad eye plate also works seamlessly with awnings, tarps, and other outdoor coverings. Its diamond-shaped structure distributes weight evenly, reducing stress on installation points.
Lightweight Yet High-Strength Design
Despite its lightweight (0.029kg–0.069kg per unit), the product offers impressive load-bearing capacity, thanks to its robust stainless steel build. This balance of portability and strength makes it easy to transport and install without compromising performance.
Weather-Resistant & Long-Lasting
The stainless steel material’s inherent resistance to UV rays, moisture, and temperature fluctuations ensures the pad eye plate retains its functionality for years. It outperforms standard metal hardware, eliminating the need for frequent replacements.

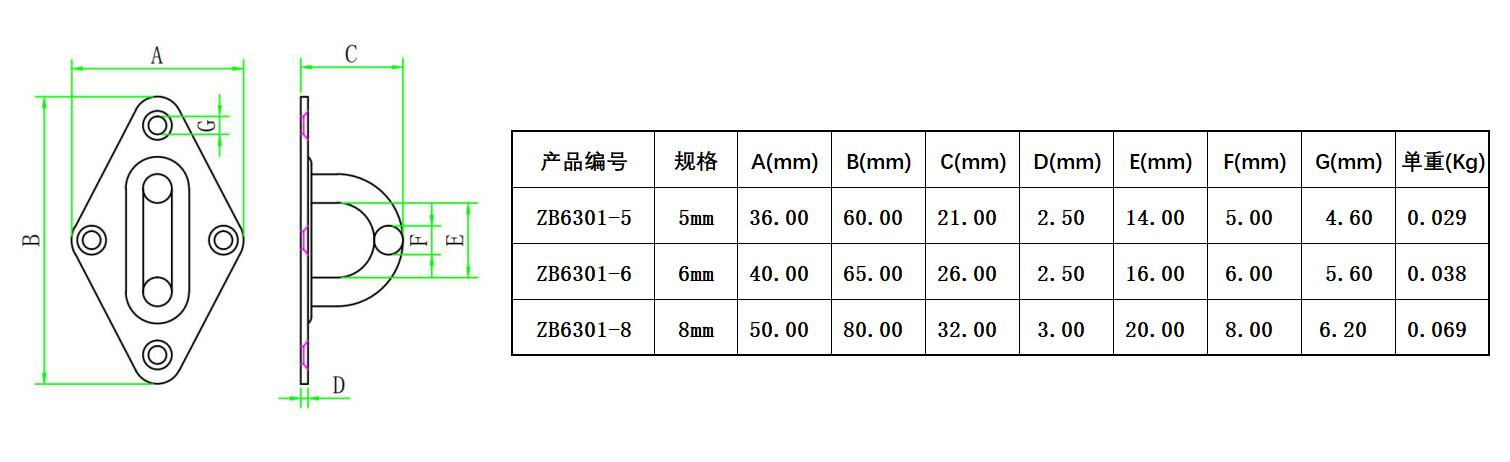

Technical Specifications
Model | Size | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | Unit Weight (kg) |
ZB6301–5 | 5mm | 36.00 | 60.00 | 21.00 | 2.50 | 14.00 | 5.00 | 4.60 | 0.029 |
ZB6301–6 | 6mm | 40.00 | 65.00 | 26.00 | 2.50 | 16.00 | 6.00 | 5.60 | 0.038 |
ZB6301–8 | 8mm | 50.00 | 80.00 | 32.00 | 3.00 | 20.00 | 8.00 | 6.20 | 0.069 |
Usage Scenarios
Residential Shade Sail Installation
Perfect for mounting rectangular/square shade sails in backyards, patios, or swimming pool areas. The reinforced installation ensures the sail stays taut and secure, providing reliable sun protection.
Marine Vessel Rigging
Ideal for boat and yacht applications—securing ropes, lines, or equipment on decks. Its corrosion-resistant stainless steel build withstands saltwater exposure, making it a trusted marine hardware choice.
Home & Garden Fixtures
Use to hang outdoor lights, planters, bird feeders, or curtain rods. The compact design blends with home decor while delivering strong fixing support.
Outdoor Recreational Facilities
Suitable for camping tents, canopies, or gazebos—providing stable anchor points for ropes and straps. Its weather-resistant feature ensures performance in camping grounds or picnic areas.
Industrial Rigging Applications
Used in light industrial settings to fix cables, hoses, or small equipment. The precision dimensions ensure compatibility with standard industrial rigging accessories.
Why Choose Us
Professional Manufacturer: Zhibo Metal is a specialist in stainless steel marine hardware and rigging products, with years of industry experience and advanced production facilities.
In-Stock Availability: Most sizes are ready for immediate shipment, reducing lead times and ensuring timely project completion.
Low MOQ Acceptable: Whether you need 1 unit or 1000+, our flexible MOQ policy caters to both small and large orders.
Quality Assured: Each diamond pad eye plate undergoes strict inspections, including spectral detection, to verify material authenticity.
Cost-Effective Pricing: Factory-direct sales eliminate middlemen, offering competitive prices without sacrificing quality.
Comprehensive Product Line: Access complementary rigging hardware (anchors, shackles, thimbles) from our catalog for one-stop shopping.
FAQ
Is magnetism a sign of low-quality stainless steel in the pad eye plate?
No. Austenitic stainless steel (SS304/SS316) is naturally non-magnetic or weakly magnetic. However, cold working during production can trigger partial martensitic transformation, increasing magnetism slightly. This does not change the material’s quality or performance—use professional methods like spectral detection or stainless steel identification liquid for accurate verification.
How to prevent the stainless steel pad eye plate from rusting?
Rust occurs due to corrosion from external substances. To avoid it: 1) Regularly clean dust or dissimilar metal particles from the surface; 2) Wipe off organic residues (vegetable juice, noodle soup) promptly to prevent organic acid formation; 3) Avoid contact with acids, alkalis, or salts (e.g., wall decoration lime water); 4) Clean the surface regularly in polluted air to prevent chemical corrosion from acid rain.
