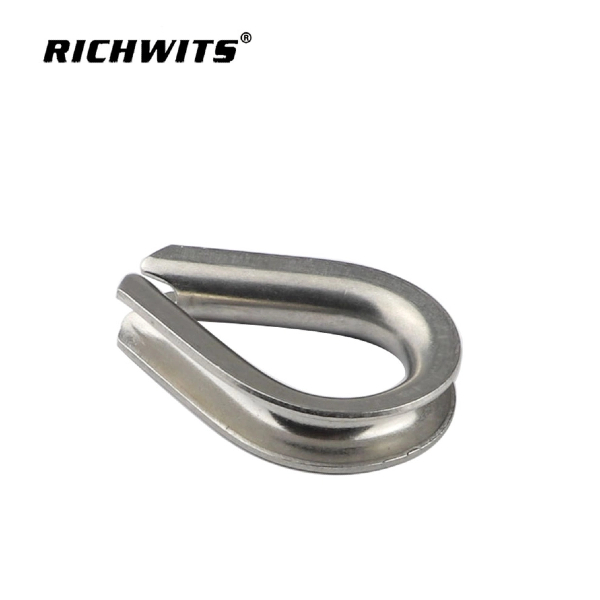

In rigging and lifting systems, rigging thimbles play an essential role in creating strong, long lasting, and reliable rope terminations. Whether you are working with wire rope, synthetic rope, or marine cables, rigging thimbles are designed to protect the rope from wear, abrasion, and deformation where loops are formed. At its core, a rigging thimble acts as a smooth bearing surface inside a loop, helping maintain the rope’s structural integrity under load and environmental stress.
Rigging thimbles are widely used across a variety of industries — from boating, shipping, and offshore work to construction, industrial lifting, and safety equipment. The choice of a proper thimble, based on application and material type, can significantly improve performance, extend service life, and enhance safety. This guide walks you through everything you need to know: what rigging thimbles are, how they work, the different types available, how to choose the right one, installation tips, and commonly asked questions.
Importance of Rigging Thimbles in Rigging Systems
Rigging thimbles contribute to system reliability by evenly distributing load forces and preventing rope damage that would otherwise occur at stress points. When a rope loop is formed without a thimble, the rope fibers or strands experience concentrated stress, which accelerates wear and increases the risk of failure. Rigging thimbles eliminate sharp bends and provide a consistent bending radius, making them indispensable in applications where strength and longevity are critical.
Additionally, rigging thimbles help maintain the proper shape and size of rope eyes, ensuring that attachments — such as shackles, hooks, and connectors — seat correctly. This reduces slippage, vibration related wear, and fatigue. A properly seated thimble also allows easier inspections of rope condition and connection security. For professionals in marine rigging, construction, industrial hoisting, or safety lines, the deployment of rigging thimbles is a fundamental practice that supports operational efficiency and regulatory compliance.

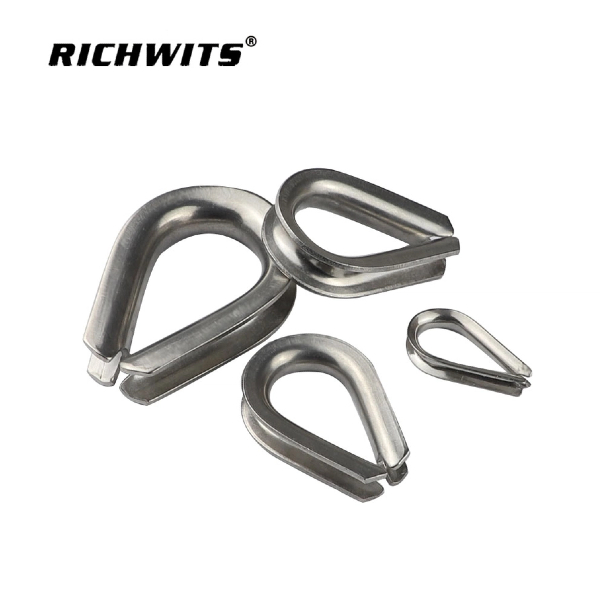

Types of Rigging Thimbles
Rigging thimbles come in multiple designs that suit different rope types, loads, and environments. Below are the most commonly used categories:
Standard / Plain Thimbles
Standard thimbles provide basic reinforcement for rope loops and are suitable for general applications where moderate loads and non extreme environmental factors are expected. These are often used in indoor rigging, general anchoring, and basic cable terminations.
Heavy Duty Thimbles
Heavy duty thimbles are built with thicker walls and reinforced construction to accept higher load capacities. They are ideal for industrial hoisting, large scale construction rigging, and heavy marine use. Their robust design helps withstand repeated load cycles.
Marine Grade Stainless Steel Thimbles
Marine rigging demands rigging hardware that resists corrosive sea air, saltwater exposure, and harsh outdoor conditions. Marine grade stainless steel thimbles are made from alloys such as 316 stainless steel to offer superior corrosion resistance, strength, and durability over time.
Galvanized Steel Thimbles
Galvanized steel thimbles are often used where corrosion resistance is needed at a lower cost than stainless steel. Their zinc coating offers protection against rust and oxidation, making them suitable for outdoor use and environments with moderate moisture exposure.
Each type of rigging thimble has specific applications, and choosing the right one depends on the rope size, load requirement, and environmental factors.
Applications of Rigging Thimbles
Rigging thimbles find wide ranging applications across diverse sectors. Their versatility makes them an essential component in any system involving rope loops or cable eyes. Below are some of the primary application areas:
Marine and Boating Systems
In the marine industry, rigging thimbles are used in sailboat rigging, anchor lines, docking lines, and lifelines. Saltwater environments are inherently corrosive, so pairing rigging thimbles with marine grade wire rope or synthetic rope is crucial. Thimbles help distribute load evenly across rope eyes, aiding in long service life and improved safety on deck.
Construction and Industrial Lifting
Construction crews and industrial riggers rely on rigging thimbles when creating load bearing loops on wire rope slings, hoisting assemblies, and structural support systems. In these applications, reliability is paramount; thimbles help maintain rope performance under repeated load cycles and heavy stress.
Outdoor Equipment and Adventure Gear
From zip lines and canopy tours to suspension bridges and safety harnesses, rigging thimbles are used within recreational and safety hardware systems. Their ability to support rope terminations under dynamic loads makes them suitable for both commercial and personal outdoor equipment.
Utility and Infrastructure
Utility sectors — including telecommunications, power distribution, and bridge support — leverage rigging thimbles to secure cables, tension lines, and guy wires. Properly installed thimbles extend the life of cables used in high tension and exposed environments.
Manufacturing and Material Handling
In factories and material handling operations, rigging thimbles support looped ends of wire rope or cable slings used for lifting heavy loads. Rigging thimbles help distribute loads evenly and minimize lateral stresses that would otherwise deform cable strands.
How to Choose the Right Rigging Thimbles
Choosing the right rigging thimble requires consideration of several factors, including rope type, rope diameter, load capacity, environment, and safety requirements. Below is a breakdown of key elements to consider:
Rope Diameter Compatibility
Rigging thimbles are sized to match specific rope diameters. Using a thimble that is too large or too small can compromise load distribution and rope integrity. Always refer to manufacturer specifications or rigging standards to ensure correct sizing.
Material Selection
Material choice affects corrosion resistance, strength, and durability:
⦁ Stainless Steel (e.g., 316) — optimal for marine and corrosive environments.
⦁ Galvanized Steel — a cost effective choice for outdoor use with moderate corrosion resistance.
⦁ Alloy Steel — high strength for heavy duty industrial applications.
Environmental Conditions
Consider whether the application will be indoors, outdoors, near saltwater, or exposed to chemicals. Marine and outdoor environments often demand corrosion resistant materials such as stainless steel.
Load Requirements
Assess the expected working load limits (WLL) and safety factors needed for your application. Heavy duty thimbles are generally specified where higher loads and repeated cycles are expected.
Regulatory & Safety Standards
Certain industries have specific rigging standards (e.g., OSHA, ASME, ISO). Ensure the selection of rigging thimbles and associated hardware complies with relevant codes and certification requirements.
Using these criteria, rigging professionals can choose the most appropriate rigging thimbles to deliver safe, reliable performance.
Rigging Thimbles vs. Other Loop Reinforcement Methods
Although rigging thimbles are a widely trusted method for protecting rope loops, there are alternative reinforcement techniques used in various industries. Below is a comparison that helps highlight how thimbles differ from other common solutions:
Reinforcement Method
Strength
Corrosion Resistance
Ease of Installation
Typical Use Cases
Rigging Thimbles
High
Excellent (SS options)
Moderate
Marine, industrial, safety
Ferrules / Sleeves
High
Depends on material
Requires swaging tools
Wire rope assemblies
Soft Rope Sleeves
Low Moderate
Varies
Easy
Temporary or light duty
Plastic/Rubber Protectors
Low
Moderate
Easy
Outdoor synthetic rope wear protection
No Reinforcement
None
Poor
N/A
Not recommended
Key insight: Rigging thimbles consistently provide a balance of durability, long service life, and strong loop reinforcement compared to methods that either lack strength or are only suited for temporary or light load use.
Installation Tips for Rigging Thimbles
Proper installation is crucial for the performance and longevity of rigging thimbles, ensuring that rope loops retain strength and safety under load. While installation can vary slightly based on rope type and hardware used, the following steps represent a general best practice approach:
⦁ Select the Correct Thimble Size: Match the thimble to the rope’s diameter according to manufacturer recommendations.
⦁ Form the Rope Eye: Bend the rope back to form a loop of the desired size.
⦁ Insert the Thimble: Place the rigging thimble inside the loop so the rope seats snugly around the thimble’s groove.
⦁ Secure with Rope Clips or Ferrules:
For wire rope, use U bolt clips or swage ferrules to secure the tail end and main part of the rope.
For synthetic rope, use soft shackles, splices, or whipping techniques as appropriate.
⦁ Tighten and Torque Fasteners: Ensure that U bolt nuts or mechanical clips are tightened to recommended torque values.
⦁ Inspect the Assembly: Check that the rope runs properly around the thimble, ensuring no kinks or sharp bends are present.
Installing rigging thimbles correctly maximizes rope life and maintains safety. In critical systems, enlist qualified rigging professionals to verify tensioning, load handling, and compliance with rigging standards.
Advantages of Using Rigging Thimbles
Integrating rigging thimbles into your rigging and cable systems delivers several performance and safety advantages:
⦁ Extended Rope Life: By preventing direct rope abrasion at loop points, thimbles reduce fiber and strand wear.
⦁ Improved Load Distribution: Thimbles provide a consistent bending radius, decreasing localized stress.
⦁ Enhanced Safety: Reducing stress concentrations minimizes risk of rope failure under load.
⦁ Reliable Loop Integrity: Thimbles maintain loop shape under tension, aiding in proper seating of shackles and connectors.
Overall, rigging thimbles contribute to stronger, more predictable, and safer rope holding systems.
Conclusion
Rigging thimbles are essential components in any rigging, lifting, or load-bearing system. They protect rope loops, enhance load distribution, and extend the life of ropes, making them indispensable in marine, industrial, construction, and safety applications. By understanding the various types, materials, sizing, and correct installation methods, we ensure maximum performance, reliability, and safety in every operation.
To achieve the best results and source high-quality rigging thimbles, we recommend consulting with experienced professionals who specialize in durable metal hardware. At Wudi Zhibo Metals Co., Ltd., we work closely with clients to provide precision-engineered rigging solutions tailored to specific needs. Whether you are securing a boat’s rigging, setting up lifting slings, or preparing critical loads for transport, we can guide you in selecting the right products, ensuring long-lasting performance and safer operations. Contact us today to learn more about our comprehensive range of rigging hardware and expert support.
FAQ
1. What are rigging thimbles used for? Rigging thimbles are used to protect rope loops by reinforcing the termination point. They provide a smooth surface that prevents wear and preserves rope strength when attached to hardware or subjected to load stress.
2. What materials are rigging thimbles made of? Common materials include stainless steel (such as 316 marine grade), galvanized steel, and heavy alloy steel. Stainless steel options are ideal for corrosive environments like saltwater.
3. How do I choose the correct size of rigging thimble? Select rigging thimbles based on the rope diameter you are using. The thimble’s groove should accommodate the rope snugly without deformation. Manufacturer charts guide correct sizing relative to rope type.
4. Can rigging thimbles be used in marine environments? Yes. Marine grade stainless steel thimbles are specifically designed for saltwater and outdoor environments, offering superior corrosion resistance and long term durability.
5. Do rigging thimbles require special tools for installation? Installation typically involves rope clips, U bolts, or swage ferrules, and may require torque wrenches or swaging tools depending on the rope and hardware used.
6. Can rigging thimbles improve rope safety? Yes. By reducing friction and preventing rope deformation at loop points, rigging thimbles enhance structural integrity and safety under load.
