What Are Common Mistakes When Using Rigging Thimbles

Rigging thimbles are essential hardware components in wire rope and cable systems, widely used across marine, industrial, and construction applications. They serve as protective devices for rope eyes, preventing deformation, abrasion, and wear at critical load points. While they may seem simple in design, improper use or installation of rigging thimbles can reduce the longevity of wire ropes, compromise safety, and increase operational risks.

Beyond their primary function of protecting rope ends, rigging thimbles also contribute significantly to the overall stability and load distribution of wire rope assemblies. In high-stress applications, such as lifting or tensioning, even minor mistakes in thimble handling can amplify stress on rope strands, leading to uneven wear and a potential reduction in safety margins. This makes it imperative for rigging operators, engineers, and maritime professionals to understand the correct use of rigging thimbles in detail.

This article explores common mistakes when using rigging thimbles, explains proper installation practices, and provides guidance on maintenance, helping engineers, sailors, and rigging professionals ensure safety and reliability in their projects. By following best practices, users can maximize the durability, performance, and safety of their rigging systems while avoiding operational inefficiencies.

1. Understanding Rigging Thimbles

1.1 Definition and Purpose

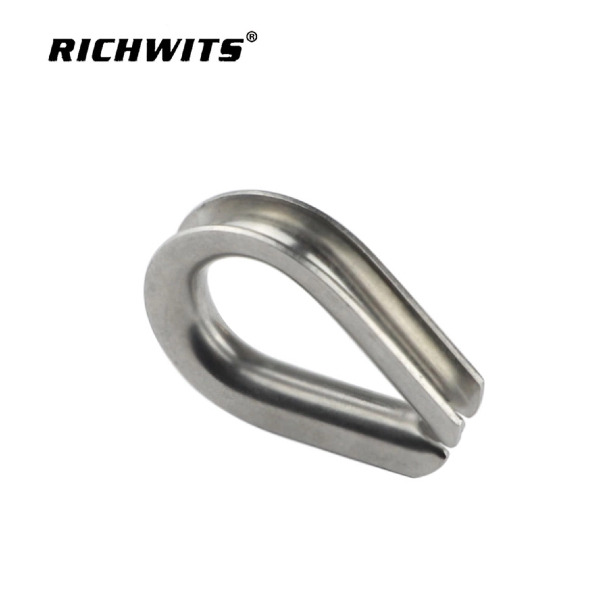

A rigging thimble is a U-shaped or teardrop-shaped metal insert placed inside the eye loop of a wire rope. Its main purpose is to:

Maintain the shape of the rope eye, ensuring that the loop does not collapse under tension.

Prevent rope strands from crushing or wearing at the termination point, reducing the risk of fraying.

Distribute load evenly across the loop, which minimizes stress concentrations and improves mechanical efficiency.

Extend the service life of the wire rope, making them highly cost-effective over long-term use.

In essence, rigging thimbles act as a reinforcing sleeve for rope loops. They are particularly crucial in environments where the rope is exposed to repetitive tension cycles, abrasive surfaces, or environmental factors like moisture, chemicals, or UV exposure. Properly installed thimbles help maintain mechanical integrity and improve overall system reliability.

1.2 Materials and Types

Rigging thimbles are typically manufactured from high-quality stainless steel, such as 304 or 316 grades, ensuring resistance to corrosion and mechanical wear. Material selection depends on the environment:

⦁ 304 Stainless Steel: Suitable for general industrial, outdoor, and low-moisture environments. Offers good corrosion resistance and mechanical strength.

⦁ 316 Stainless Steel (Marine Grade): Ideal for marine and highly corrosive environments, such as saltwater applications, coastal installations, or offshore rigs, due to its higher resistance to pitting and chemical corrosion.

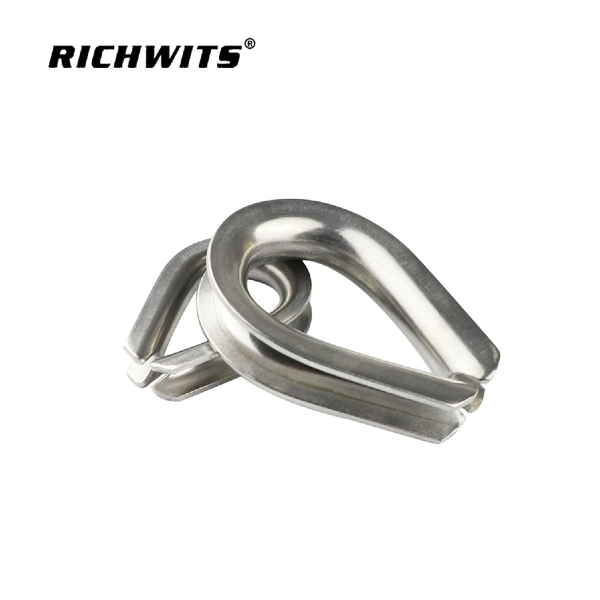

Common types of rigging thimbles include:

Understanding the different types of rigging thimbles helps users select the right product for each application, avoiding mismatch issues, reducing maintenance, and ensuring long-term reliability.

2. Installation Principles for Rigging Thimbles

Proper installation is crucial for rigging thimbles to perform effectively. Incorrect installation can compromise load distribution, increase wear, and reduce rope strength. Here are the essential principles:

2.1 Correct Rope Loop Formation

Always form a tight loop around the thimble, ensuring the rope strands lie smoothly along the thimble’s contour.

Avoid twisting, overlapping, or kinking the rope, which can reduce load-bearing capacity and create weak points.

Ensure that the rope eye fully encloses the thimble, leaving no gaps between the rope and the thimble. Gaps can cause rope abrasion, localized stress, and eventual failure.

A well-formed loop reduces dynamic movement, minimizing friction between rope strands and enhancing performance under variable loads.

2.2 Proper Clip Placement

Use wire rope clips to secure the rope around the thimble. Clips should be tightened according to manufacturer-recommended torque values.

The first clip should be positioned close to the thimble’s tip without touching it, while subsequent clips are spaced evenly along the rope.

Ensure that the U-bolt side of the clip is placed on the tail end of the rope to prevent strand crushing on the main load-bearing side.

Double-check clip tightness periodically to maintain rope integrity and prevent slippage during operation.

2.3 Sizing Considerations

The thimble diameter should match the wire rope diameter. Oversized thimbles can cause rope slippage, while undersized thimbles can crush the rope strands.

Verify the wire rope’s breaking strength and select a thimble rated for the intended load.

Thimbles that are too small may induce stress concentrations, while oversized thimbles can reduce rope eye stability and create unexpected bending points.

Pro Tip: Using a thimble table helps standardize installation, ensuring consistent performance and adherence to safety standards.

3. Common Oversights During Use

Even with proper installation guidelines, users often make mistakes in the use of rigging thimbles, which can reduce safety and rope lifespan. Highlighting these common oversights helps prevent operational issues.

3.1 Improper Rope Loop Formation

Creating a rope loop that does not conform to the thimble’s shape results in uneven load distribution. Misaligned strands may carry excessive stress, causing accelerated wear. Always ensure the rope loop fits snugly around the thimble, conforming to its full contour.

3.2 Incorrect Clip Placement

Clips positioned too close to or too far from the thimble tip compromise stability. Proper spacing ensures that the load is distributed evenly across the rope strands, preventing stress points. Even small misalignments can reduce the rope’s effective strength over time.

3.3 Using the Wrong Thimble Size

Selecting a thimble that is too large or too small for the rope diameter undermines its protective function. Thimbles must match wire rope specifications to maintain loop integrity and load stability. Size mismatches may accelerate abrasion or cause strand deformation.

3.4 Neglecting Regular Inspections

Rigging thimbles should be inspected for deformation, corrosion, or surface wear. Neglecting inspections can allow minor damage to escalate, potentially compromising safety. Routine checks help identify signs of stress before they impact performance.

3.5 Environmental Considerations

Failing to account for environmental factors—such as saltwater, chemicals, or extreme temperatures—can lead to premature corrosion or material fatigue. Selecting thimbles made from appropriate stainless steel grades ensures resilience in specific operational environments.

4. Maintenance and Longevity Tips

Routine maintenance is essential to maximize the lifespan and effectiveness of rigging thimbles.

4.1 Inspection Procedures

Check for visible deformation, cracks, or rust, which can indicate weakening.

Inspect rope strands around the thimble for flattening or fraying.

Verify that wire rope clips remain tight, aligned, and correctly spaced.

4.2 Cleaning and Lubrication

Rinse thimbles exposed to saltwater or dust to remove corrosive residues.

Apply protective lubricants to prevent corrosion and reduce friction, particularly in high-load applications.

4.3 Replacement Guidelines

Replace thimbles showing significant wear or corrosion.

Avoid reusing thimbles that are bent, cracked, or misshapen, even if minor.

4.4 Storage Best Practices

Store thimbles in dry, ventilated areas, away from moisture, chemicals, or abrasive surfaces.

Ensure that thimbles are kept separate from heavy objects that may cause deformation.

Recommended Maintenance Frequency

5. Optimizing Safety and Performance

To maximize safety and performance, rigging thimbles should always be paired with proper accessories and handled by trained personnel.

5.1 Using Quality Accessories

Wire rope clips and thimbles should match in material grade (e.g., 316 stainless steel).

Avoid mixing low-quality clips with high-grade thimbles, as weak points may form.

Ensure all accessories are certified to relevant industry standards for lifting or marine applications.

5.2 Personnel Training

Operators must be trained in correct loop formation, clip spacing, and load handling techniques.

Training should emphasize inspection routines and consideration of environmental factors, including moisture, chemicals, and UV exposure.

Correct training reduces human error, enhances rope longevity, and ensures compliance with safety regulations.

5.3 Incorporating Into Safety Audits

Include thimbles and wire rope assemblies in regular safety audits.

Maintain records of load ratings, replacement dates, and maintenance activities.

Safety audits ensure that potential risks are identified and addressed proactively, minimizing operational hazards.

6. Conclusion

Rigging thimbles are small yet essential components in any wire rope system, playing a key role in protecting rope eyes, distributing loads evenly, and preventing wear. By ensuring proper installation, choosing the correct material and size, and conducting regular inspections, we can avoid common issues that compromise safety and performance.

For professionals working in marine, industrial, or construction environments, investing in the correct handling of rigging thimbles not only extends the life of wire ropes but also reduces maintenance costs and enhances operational safety. Understanding the nuances of installation techniques, environmental factors, and preventive maintenance practices is critical for achieving reliable and efficient rigging operations.

To ensure top-quality performance and access to durable, corrosion-resistant thimbles suitable for diverse applications, we recommend exploring the solutions offered by Wudi Zhibo Metals Co., Ltd. Their expertise in stainless steel hardware and customized rigging components makes them a trusted partner for engineers, rigging specialists, and industrial operators seeking reliable, high-performance wire rope accessories. Whether you need guidance on material selection or assistance with large-scale projects, reaching out to their team can provide valuable support and technical advice.

7. FAQ

Q1: What is a rigging thimble used for?
A1: A rigging thimble protects the eye of a wire rope, distributes load, and prevents abrasion, ensuring longer service life.

Q2: How do I choose the right size of thimble?
A2: Match the thimble size to the rope diameter and check the recommended load rating. A snug fit is essential.

Q3: How often should rigging thimbles be inspected?
A3: Inspections should be frequent in harsh environments (weekly for marine use) and at least monthly for general outdoor use.

Q4: Can thimbles be reused?
A4: Yes, if they are free of deformation, corrosion, or cracks, but always perform a careful inspection before reuse.

Q5: What are best practices for installation?
A5: Form a proper rope loop, place clips at correct spacing, and tighten to the recommended torque to ensure load stability.

Q6: Which material is best for marine environments?
A6: 316 stainless steel is recommended for saltwater exposure due to its high corrosion resistance.

Q7: Can maintenance extend the life of rigging thimbles?
A7: Absolutely. Regular inspection, cleaning, lubrication, and proper storage can significantly increase the service life of thimbles, preventing premature wear and failures.
