Product Overview

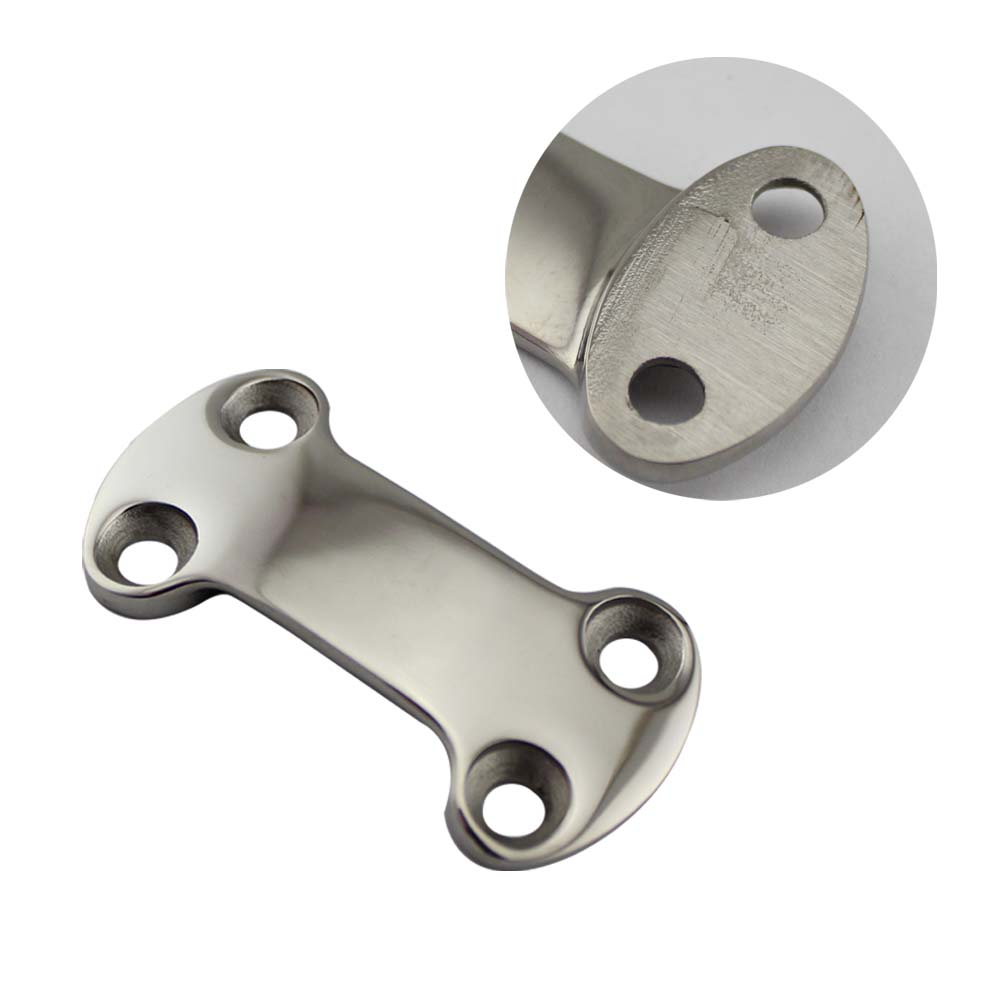

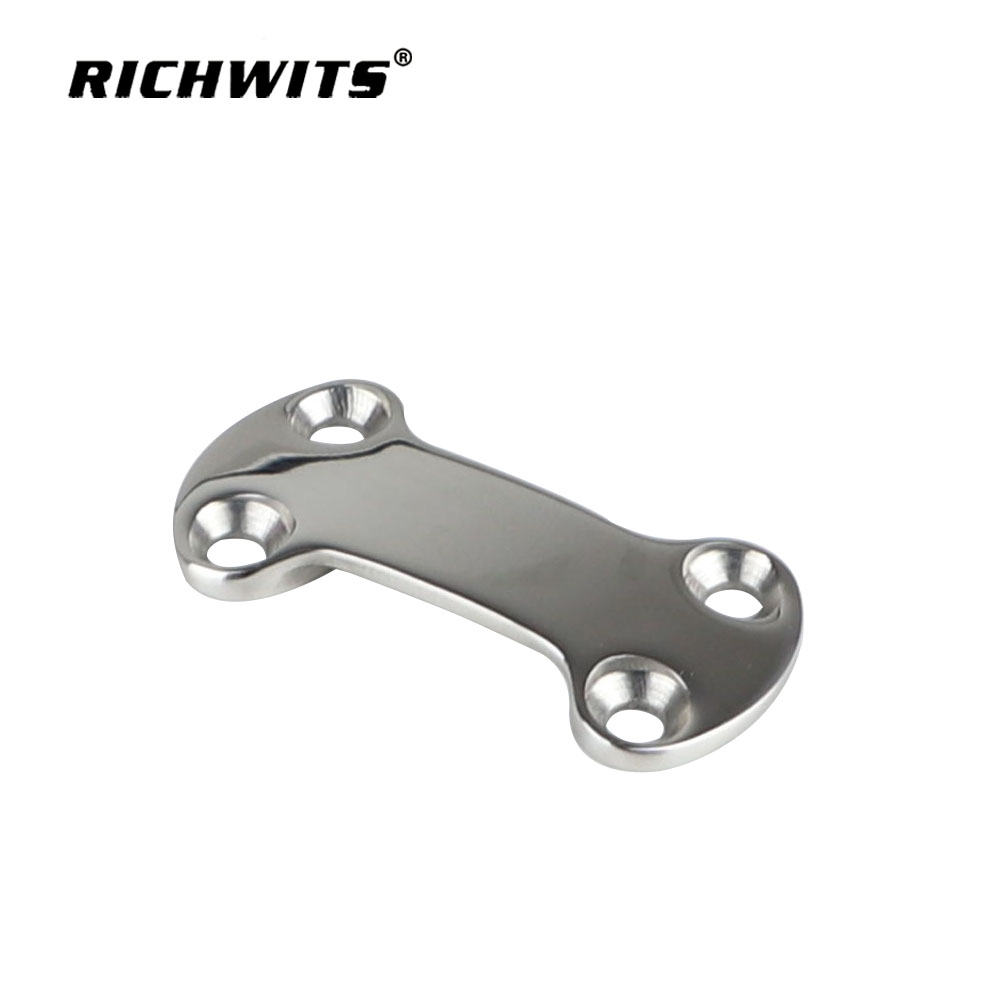

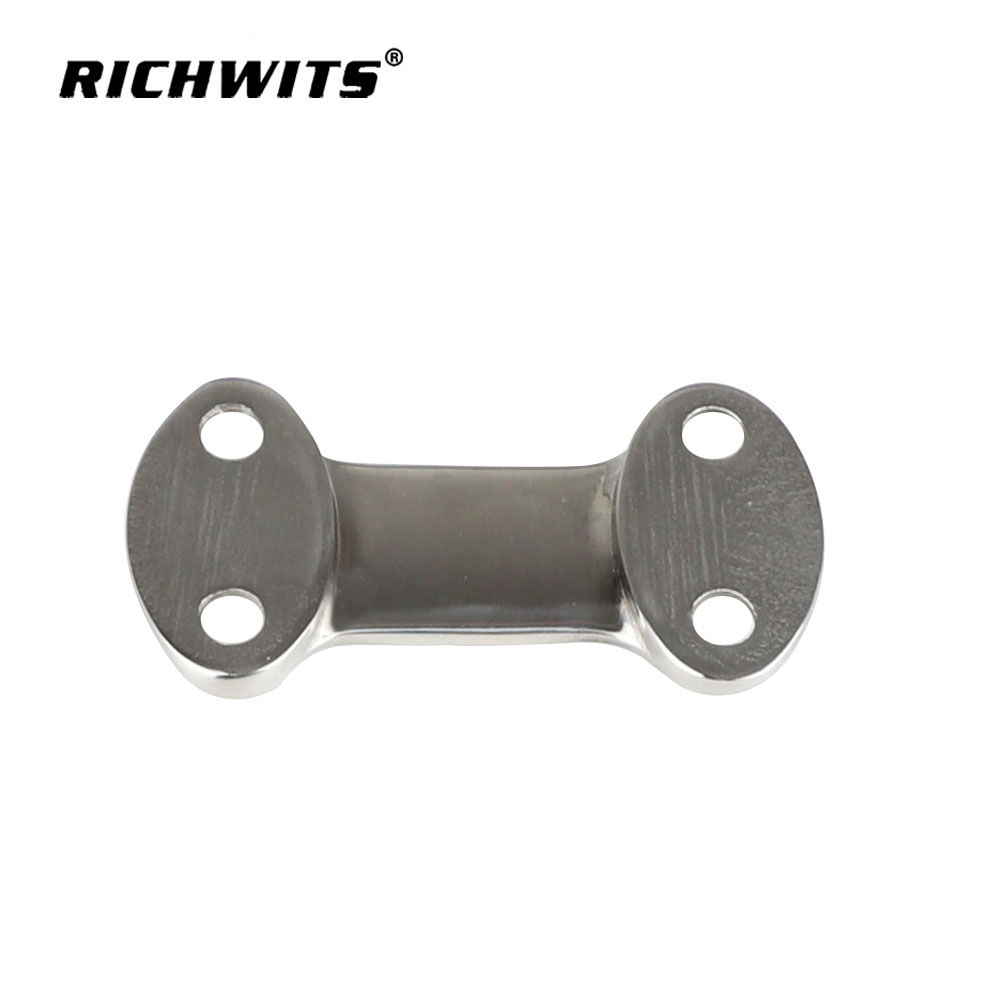

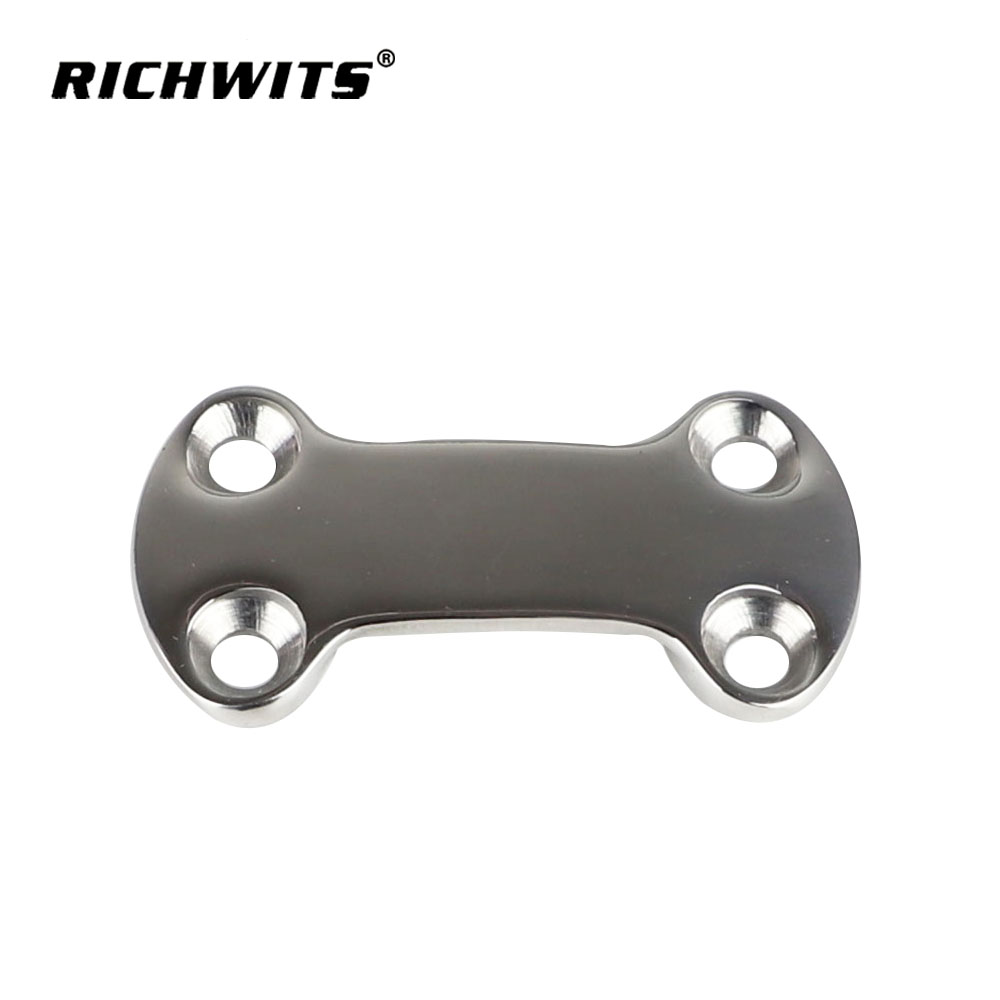

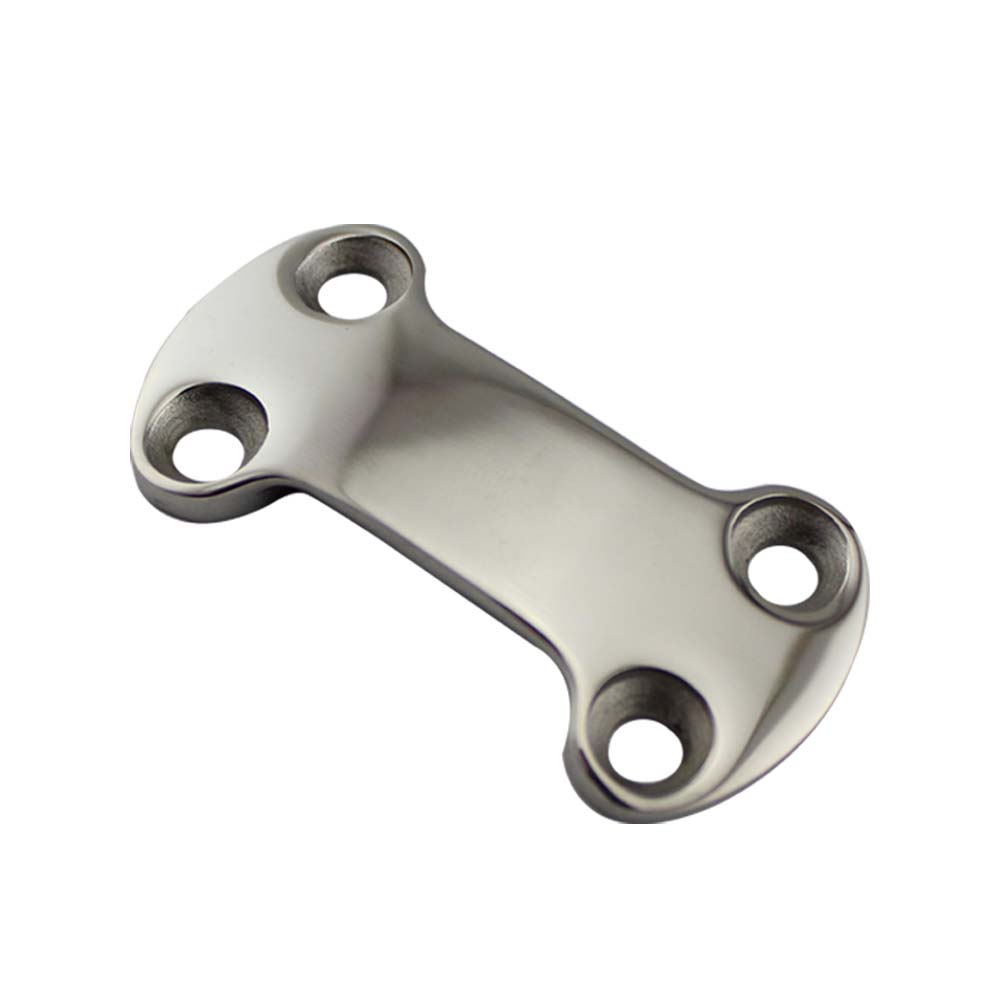

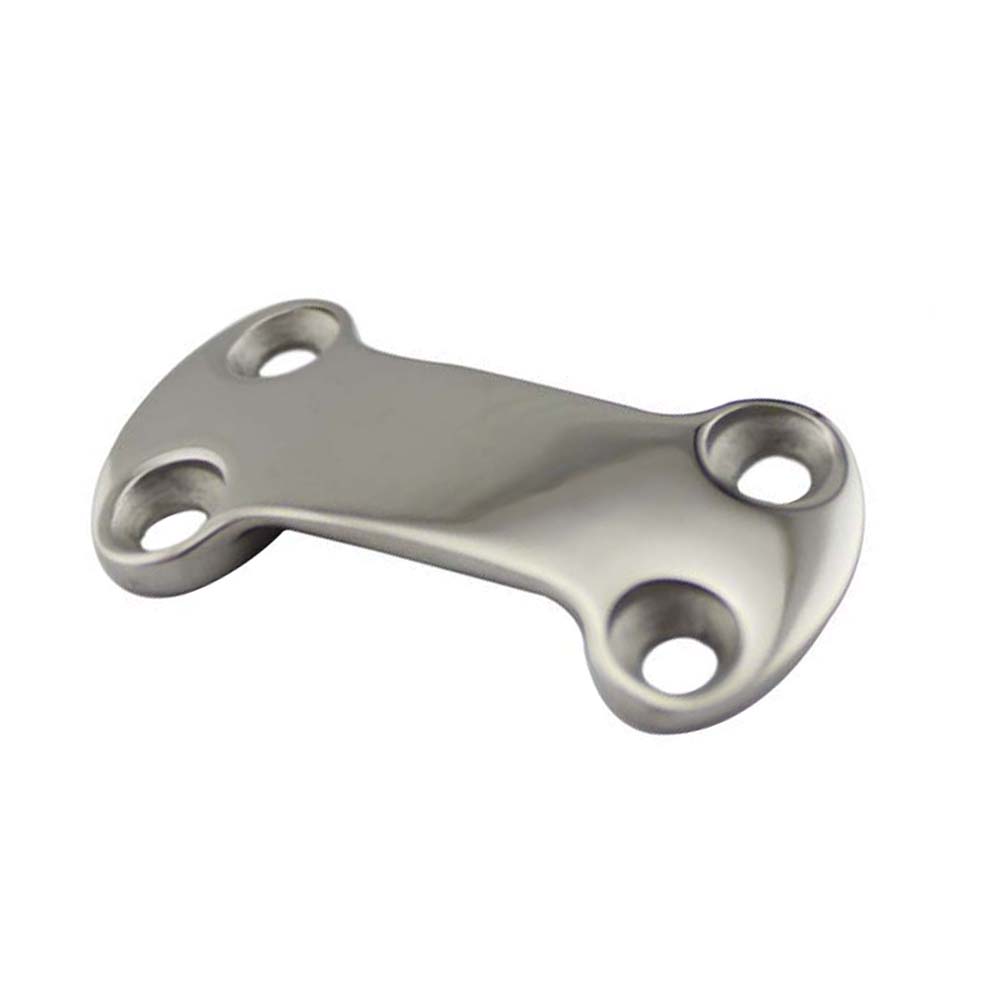

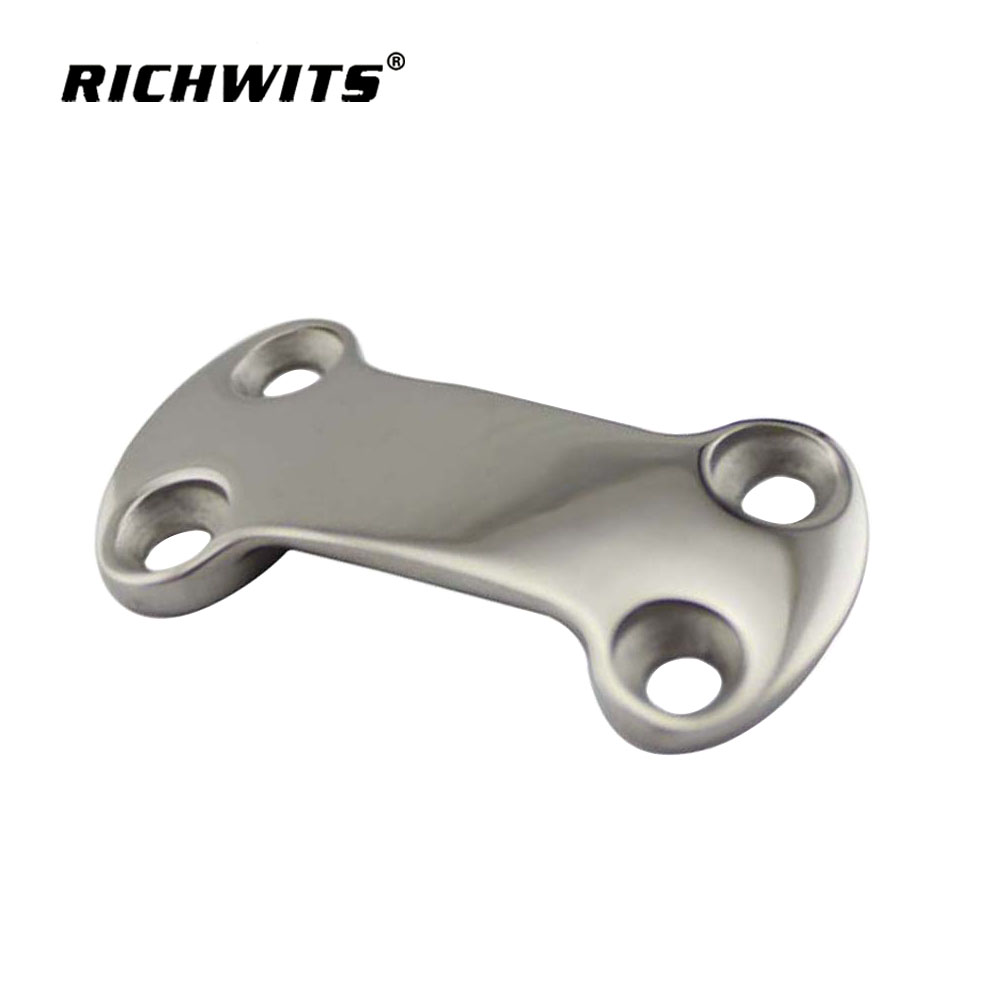

Rigging Hardware Accessories Metal Cam Buckle Plate – 304/316 Stainless-Steel Plate – Model ZB7002 Series
RICHWITS ZB7002 gives you a low-profile, four-point mounting plate that anchors cam buckles, turnbuckles or snap hooks to decks, walls or frames.
Investment-cast from 304 stainless steel (316 on request), then CNC-machined and mirror-polished for lifetime immunity to salt-spray, humidity and UV exposure.

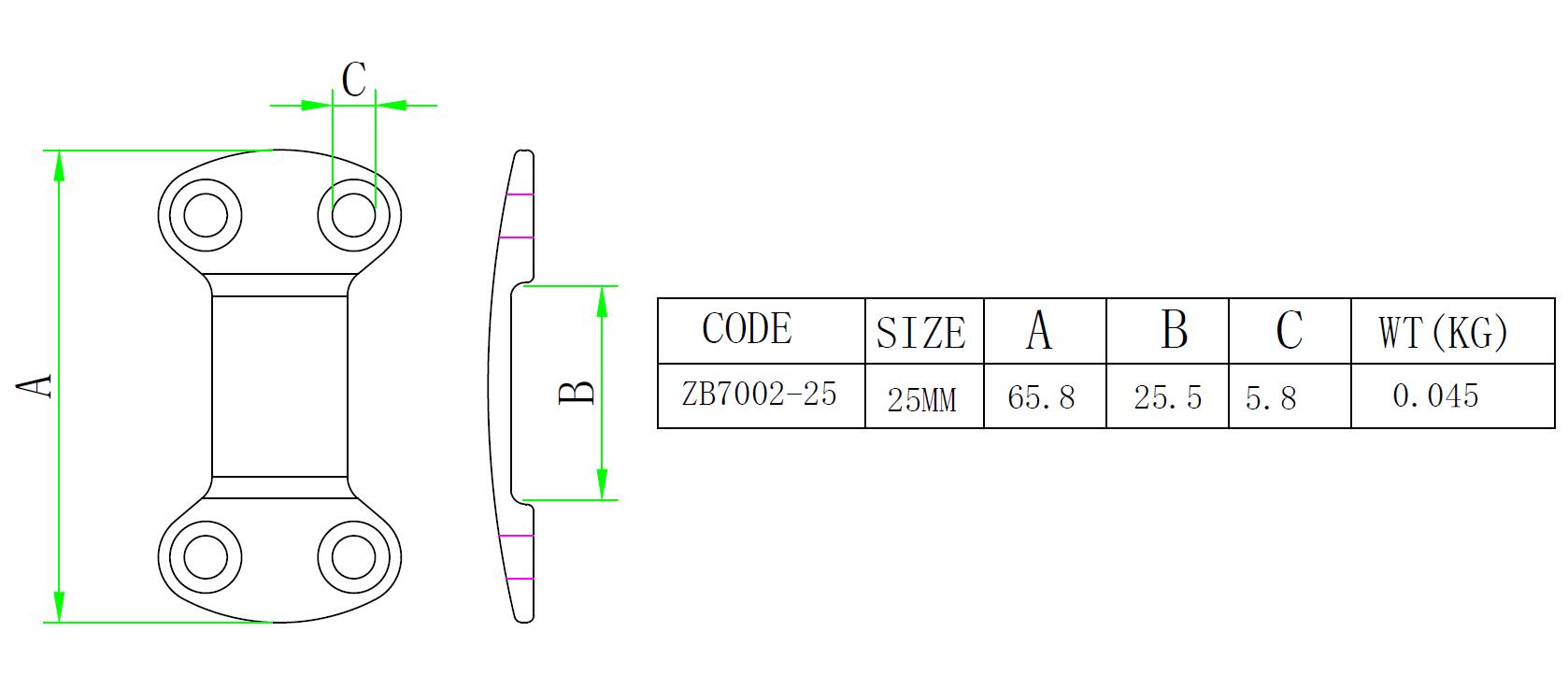

Symmetrical 4-hole pattern (5.8 mm Ø on 25.5 mm centres) accepts M5 or M6 fasteners; curved 25.5 mm profile matches tube or flat surfaces.
Single 25 mm size weighs only 45 g—perfect for yacht covers, shade sails, cargo nets or architectural rigging where discrete, strong attachment is key.
Key Features & Benefits
304/316 SS Investment-Cast Body – zero welds, zero rust; 316 on request for salt-water.
Four-Hole Symmetrical Pattern – 5.8 mm Ø holes on 25.5 mm centres; accepts M5/M6 bolts or screws.
Curved 25.5 mm Profile – matches 25 mm tube or sits flat on deck; no stress concentrators.
Mirror-Polished & Passivated – salt rinses off; no pitting or tea staining.
Low-Profile 5.8 mm Thick – sits flush under sail covers, tonneau lids or roof-rack bars.
Lightweight 45 g – strong anchor without adding topside weight.
Factory-Direct Price – 35 % cheaper than machined billet plates; MOQ 500 pcs.
Usage Scenarios
Yacht & Boat Covers – mount cam buckles or turnbuckles to coamings; 200 kgf WLL holds covers in 40 kt gusts.
Shade Sails & Awnings – four-point anchor for corner hardware; curved profile matches frame tubes.
Cargo Nets & Lashing – discrete deck plate for truck, trailer or roof-rack tie-downs.
Architectural Rigging – mirror finish matches high-end interior or exterior designs.
Certifications / Testing
Why Choose RICHWITS
Factory-Direct – wholesale only, 35 % cost saving vs. machined billet equivalents.
In-Stock – 800 000 pcs ready, MOQ 500 pcs, 48 h dispatch.
Fast Logistics – FedEx/UPS/DHL global 3-7 day delivery.
OEM/ODM – custom 316 material, logo or hole pattern within 2 weeks.
Test Certificates – mill cert, salt-spray, proof-load report supplied free.
FAQ
Q1: Will 304 SS really never rust?
A1: 304 resists most salt-air; choose 316 for continuous immersion—polish yearly to keep the shine.
Q2: What safe working load (SWL)?
A2: 200 kgf with 4:1 safety factor—perfect for covers, sails or cargo nets.
Q3: Can I use M6 bolts in the 5.8 mm holes?
A3: Yes—5.8 mm holes accept M6 bolts with standard clearance; use washers for max load distribution.
Q4: Will the plate flex under load?
A4: No—5.8 mm thickness + curved web design; tested to 400 kgf proof load, zero permanent deformation.
Q5: Are spare 316 versions available?
A5: Yes—316 upgrade on request, MOQ 500 pcs, 25 % price adder.
Q6: Do you offer test certificates?
A6: Mill certificate for 304/316 SS, salt-spray report, and proof-load certificate supplied free on request.
