How To Inspect Rigging Thimbles for Signs of Wear

1. Importance of Rigging Thimbles Inspection

Rigging thimbles are essential components in wire rope and cable systems, widely used across industries ranging from marine, construction, industrial machinery, to safety and lifting equipment. A rigging thimble provides critical support to the eye of a wire rope, protecting it from deformation, fraying, and wear caused by repeated bending, dynamic loads, or prolonged tension.

Regular inspection of rigging thimbles is not merely a maintenance step but a vital safety measure. Even slight wear, corrosion, or bending at the thimble can compromise the integrity of the entire wire rope system, potentially reducing load capacity and operational efficiency. Detecting early signs of wear ensures that rigging assemblies perform as intended, mitigating risks of sudden failure.

Moreover, proper inspection aligns with industry standards and regulatory requirements. Many professional organizations recommend routine checks of rigging thimbles to guarantee operational safety and prevent downtime. By implementing a systematic inspection routine, organizations can extend equipment lifespan, optimize performance, and enhance workplace safety.

In this comprehensive guide, we explore how to inspect rigging thimbles for signs of wear, detailing visual assessment techniques, measurement practices, compatibility checks, maintenance strategies, and advanced inspection methods. Following this guide helps professionals ensure that their rigging thimbles remain reliable under demanding operational conditions.

2. Understanding Rigging Thimbles

Definition and Function

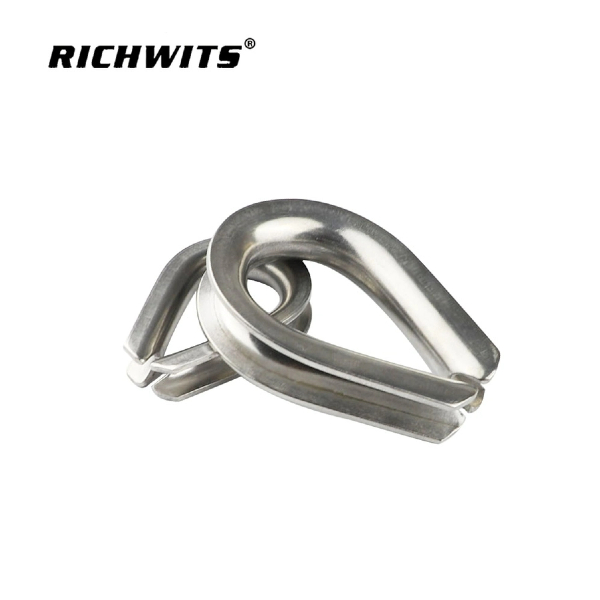

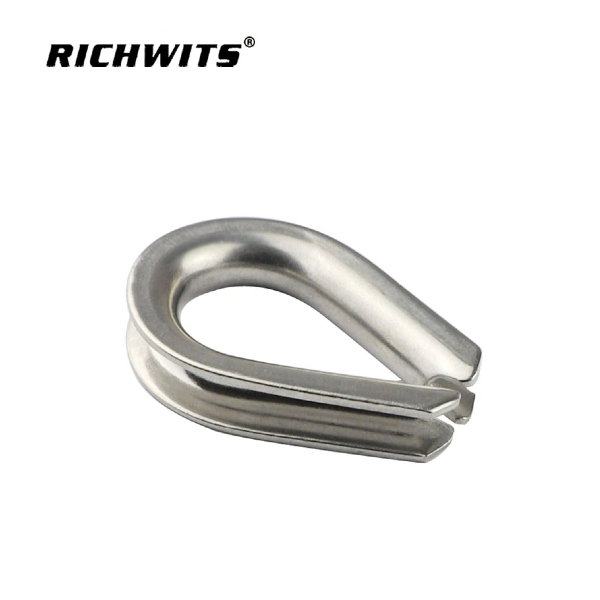

A rigging thimble is a metal insert, commonly made of stainless steel, placed inside the loop (eye) of a wire rope to prevent crushing or bending at the termination point. It forms a robust circular shape, allowing the rope to bear load without excessive stress at the loop, which is often the weakest part of a rope assembly.

Thimbles provide multiple functional benefits:

⦁ Load distribution: Ensuring that tensile forces are evenly spread along the rope eye, reducing localized stress.

⦁ Abrasion protection: Reducing friction between the wire rope and associated hardware, which minimizes wire strand breakage.

⦁ Structural longevity: Preventing deformation and fraying of the wire rope, thereby extending operational life.

⦁ Operational safety: Maintaining a secure termination that withstands environmental and mechanical stresses.

Materials and Types

Most rigging thimbles are manufactured from high-strength metals such as 304 or 316 stainless steel, which provides excellent resistance to corrosion, oxidation, and mechanical wear. Material selection depends on the application: marine environments require higher corrosion resistance, whereas indoor or temporary setups may tolerate lower-spec materials.

Thimbles come in various types, including standard, heavy-duty, light-duty, and precision-engineered thimbles. Each type is designed to accommodate specific rope diameters, load ratings, and environmental conditions, ensuring the right fit for every rigging scenario.

3. Visual Inspection Techniques

A thorough visual inspection is the first and most critical step in assessing rigging thimble wear. Early detection of surface wear, deformation, or corrosion allows preventive action before the rope or thimble fails.

Steps for Visual Inspection

Surface Examination
Examine the thimble’s entire surface for signs of corrosion, pitting, or discoloration. Special attention should be paid to curved sections, as these areas bear the highest stress during operation. Look for any irregularities that might indicate exposure to harsh environmental conditions.

Groove Assessment
The groove where the wire rope sits must be smooth and symmetrical. Uneven wear, sharp indentations, or localized flattening can increase friction on the rope and accelerate strand fatigue.

Shape Verification
Ensure the thimble retains its intended U-shape or circular curvature. Any flattening, bending, or distortion is an indicator of overload or repeated dynamic stress. Deformed thimbles can compromise rope alignment and reduce load-bearing capacity.

Environmental Considerations
Assess thimbles exposed to saltwater, chemicals, or outdoor weather. Corrosion may be subtle at first, appearing as surface dulling or slight discoloration. Detecting these signs early allows timely maintenance or replacement.

Tools for Visual Inspection

⦁ Magnifying glass or jeweler’s loupe: Detect fine cracks or surface defects invisible to the naked eye.

⦁ Adequate lighting: Bright and angled lighting improves visibility of surface irregularities.

⦁ Documentation tools: Cameras or mobile devices for photographing thimbles during inspections help track wear trends over time.

4. Measuring for Wear and Deformation

While visual checks are critical, precise measurements quantify wear and detect subtle deformations invisible to the naked eye. Measurements allow for predictive maintenance and informed replacement decisions.

Key Measurements

⦁ Inner Diameter of Thimble Eye: Should match the nominal rope diameter. Enlargement indicates deformation.

⦁ Side Wall Thickness: Measure at multiple points; reduced thickness signifies material loss due to abrasion.

⦁ Bend Radius: Assess for flattening or irregular curvature; uneven bends increase localized rope stress.

⦁ Groove Profile: Check smoothness and symmetry; irregular grooves accelerate wire rope wear.

Measurement Tools

⦁ Digital calipers: Offer high precision for inner diameter and wall thickness checks.

⦁ Micrometer: Suitable for small tolerances, especially on precision-engineered thimbles.

⦁ Templates and gauges: Compare worn thimbles to new specifications for early detection of wear trends.

Recommended Wear Assessment Table

These parameters help maintenance personnel create inspection benchmarks for rigging thimbles, ensuring consistent safety standards across operations.

5. Compatibility Check with Wire Rope and Clips

Even a well-maintained thimble can fail if not compatible with the wire rope or associated hardware. Correct compatibility ensures optimal load distribution and safe operation.

⦁ Wire Rope Diameter Matching: The thimble must snugly fit the rope without forcing the strands into the groove.

⦁ Clip Size Compatibility: Wire rope clips should be correctly sized for both the rope and thimble. Improper clip selection can reduce clamping efficiency and create stress points.

⦁ Load Consideration: Ensure that the rope-thimble assembly meets operational load requirements. Undersized or oversized components can compromise safety margins.

Proper compatibility maintains system integrity, prevents premature wear, and ensures the thimble performs its protective role effectively.

6. Maintenance Best Practices

Routine maintenance extends rigging thimble life and preserves system reliability. Preventive maintenance complements inspection and ensures optimal performance.

Cleaning

Remove salt, dust, dirt, and chemical residues.

Mild detergent and fresh water are recommended; avoid abrasive chemicals that may damage stainless steel coatings.

Dry thoroughly to prevent water-induced corrosion.

Lubrication

Apply corrosion-resistant lubricants at contact points between thimble and rope.

Avoid over-lubrication to prevent dust accumulation and slippery surfaces.

Storage

Store thimbles in a dry, ventilated area, away from moisture and corrosive chemicals.

Avoid stacking heavy equipment on top of thimbles, which may cause deformation.

Inspection Frequency

Conduct inspections before each critical operation.

Adjust frequency based on usage intensity and environmental exposure; for harsh marine or industrial conditions, inspect weekly or bi-weekly.

7. Advanced Inspection Tools

For critical operations, advanced tools provide additional assurance:

⦁ Non-Destructive Testing (NDT): Techniques such as dye penetrant or magnetic particle testing can identify micro-cracks or stress points.

⦁ Digital Measuring Devices: High-precision calipers and micrometers allow detection of subtle dimensional changes over time.

⦁ Inspection Tracking Software: Logs measurements and photographs for trend analysis, enabling predictive maintenance scheduling.

These methods, combined with visual and measurement checks, create a comprehensive inspection strategy for rigging thimbles.

8. Conclusion

Inspection of rigging thimbles is essential for ensuring the safety, reliability, and efficiency of wire rope systems. By adopting a structured approach—including visual assessment, precise measurement, compatibility checks, and routine maintenance—operators can prevent failures, extend the lifespan of both thimbles and wire ropes, and maintain consistent operational performance. Regular inspections not only safeguard equipment but also support compliance with industry safety standards, enhancing efficiency across marine, industrial, and construction applications.

To achieve the highest quality and durability in rigging hardware, we recommend sourcing precision-engineered rigging thimbles and related fittings from experienced manufacturers. At Wudi Zhibo Metals Co., Ltd., we specialize in high-quality stainless steel rigging solutions, offering a full range of products designed to meet stringent performance requirements. With expertise in manufacturing, material selection, and custom specifications, we can provide durable components that ensure long-term reliability. For those seeking professional guidance or tailored solutions for wire rope assemblies, contacting us ensures access to expertise, high-grade materials, and dependable rigging hardware that supports safe and efficient operations.

9. FAQ

Q1: How often should rigging thimbles be inspected?
A1: Inspect rigging thimbles before each significant operation or at least monthly for heavily used equipment.

Q2: Can visual inspection alone detect all wear on rigging thimbles?
A2: While visual inspections detect surface damage and obvious deformation, measurements provide more precise detection of subtle wear.

Q3: What tools are recommended for inspecting rigging thimbles?
A3: Use calipers, micrometers, magnifying devices, proper lighting, and optionally non-destructive testing equipment for high-load applications.

Q4: How can I prevent rigging thimbles from wearing prematurely?
A4: Regular cleaning, proper lubrication, compatible rope and clips, and proper storage help maintain thimble integrity.

Q5: What materials are best for rigging thimbles in marine environments?
A5: Stainless steel 316 offers superior corrosion resistance and durability in saltwater and humid environments.

Q6: Are all thimbles compatible with every wire rope?
A6: No, always ensure the thimble size matches the wire rope diameter and clip size to maintain safety and performance.
