RICHWITS is one of the premier marine hardware manufacturers in China, specializing in high-quality stainless steel solutions. Our Marine Stainless Steel 316 High Polished Boat Bimini Top Hardware Jaw Slide with Spring Pin is engineered with precision and durability in mind. Crafted from marine-grade 316 stainless steel and finished with a high-polish surface, it offers superior corrosion resistance, smooth operation, and long-lasting performance. Designed for effortless adjustment and secure installation, this hardware ensures reliable functionality for bimini top systems on various boats and yachts. With extensive industry experience and a commitment to excellence, we provide tailored solutions to meet your specific needs. Contact us today to request a quote or discuss your requirements!

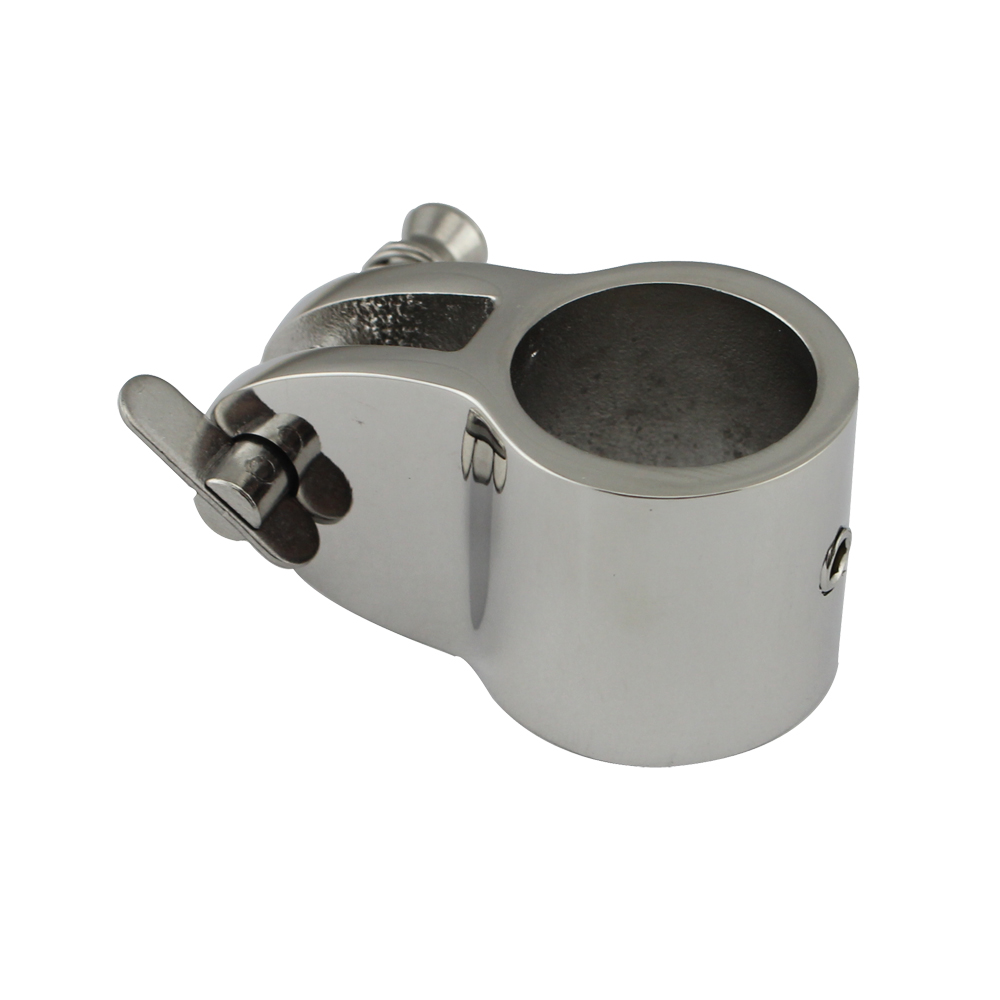

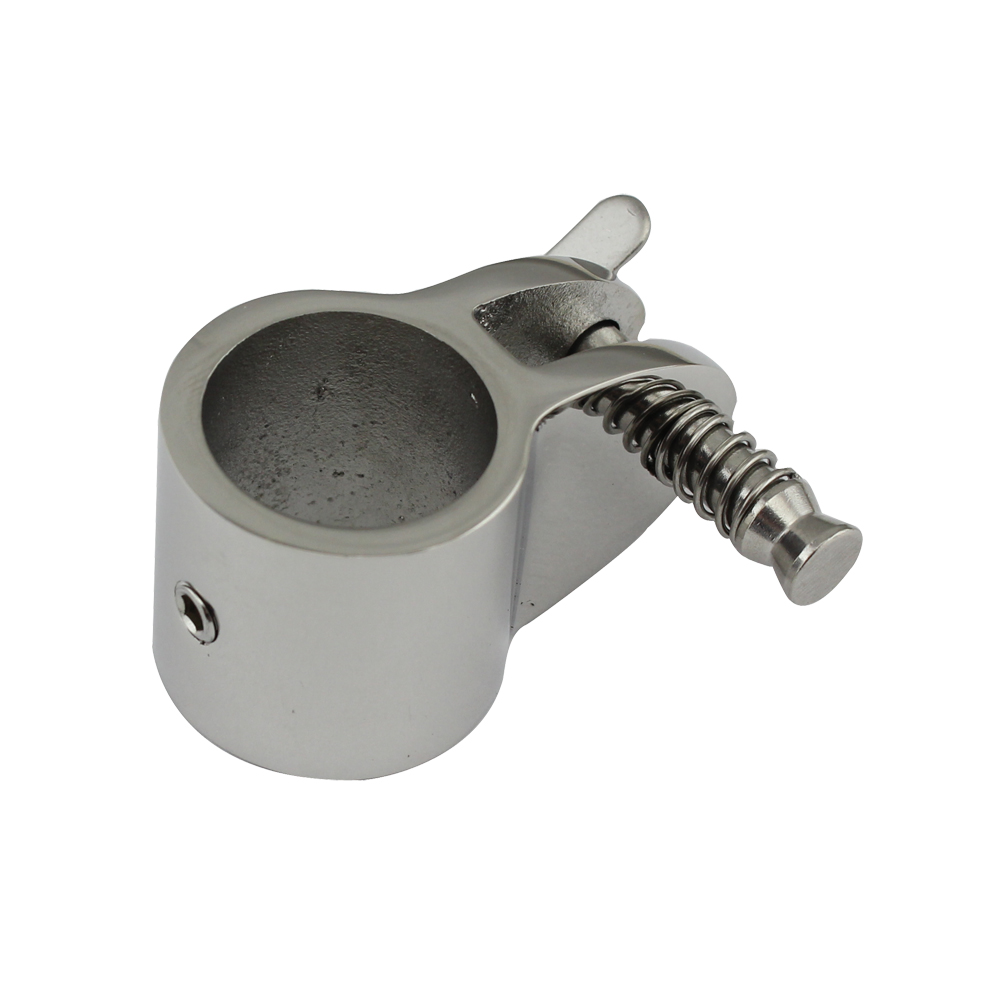

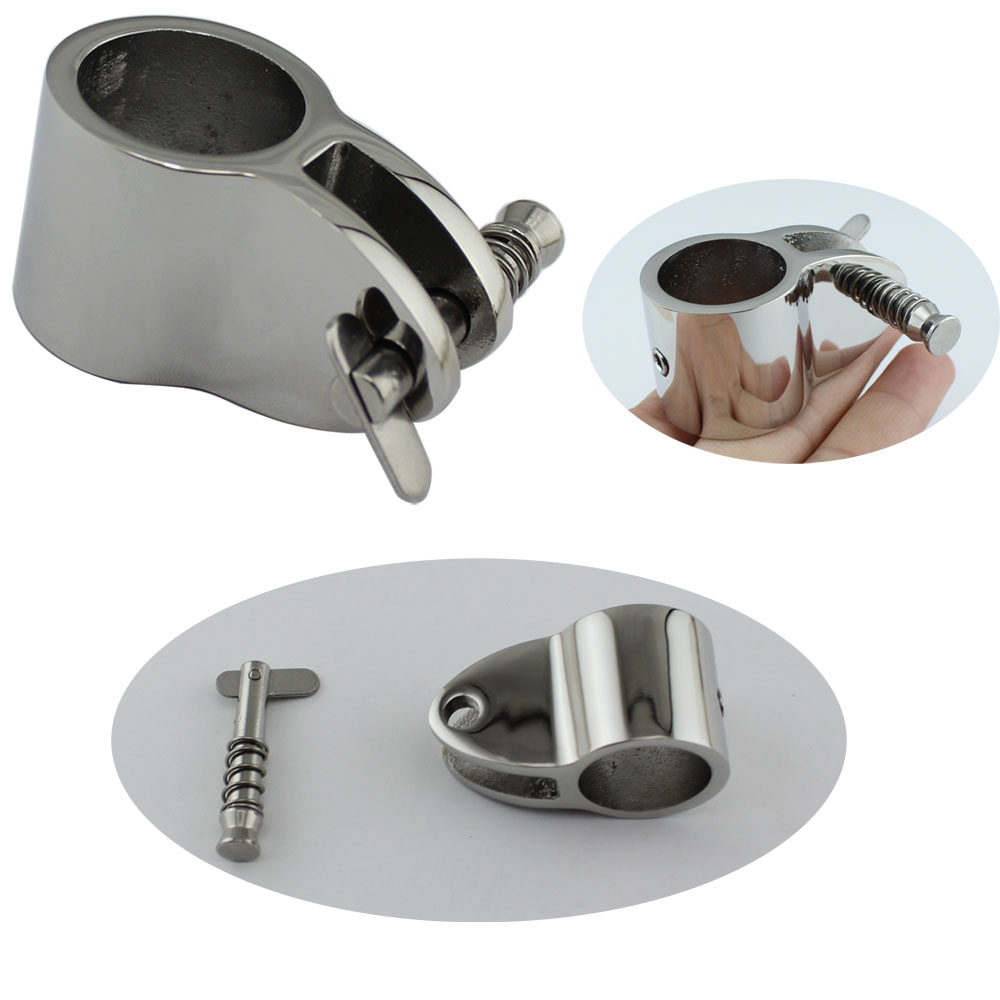

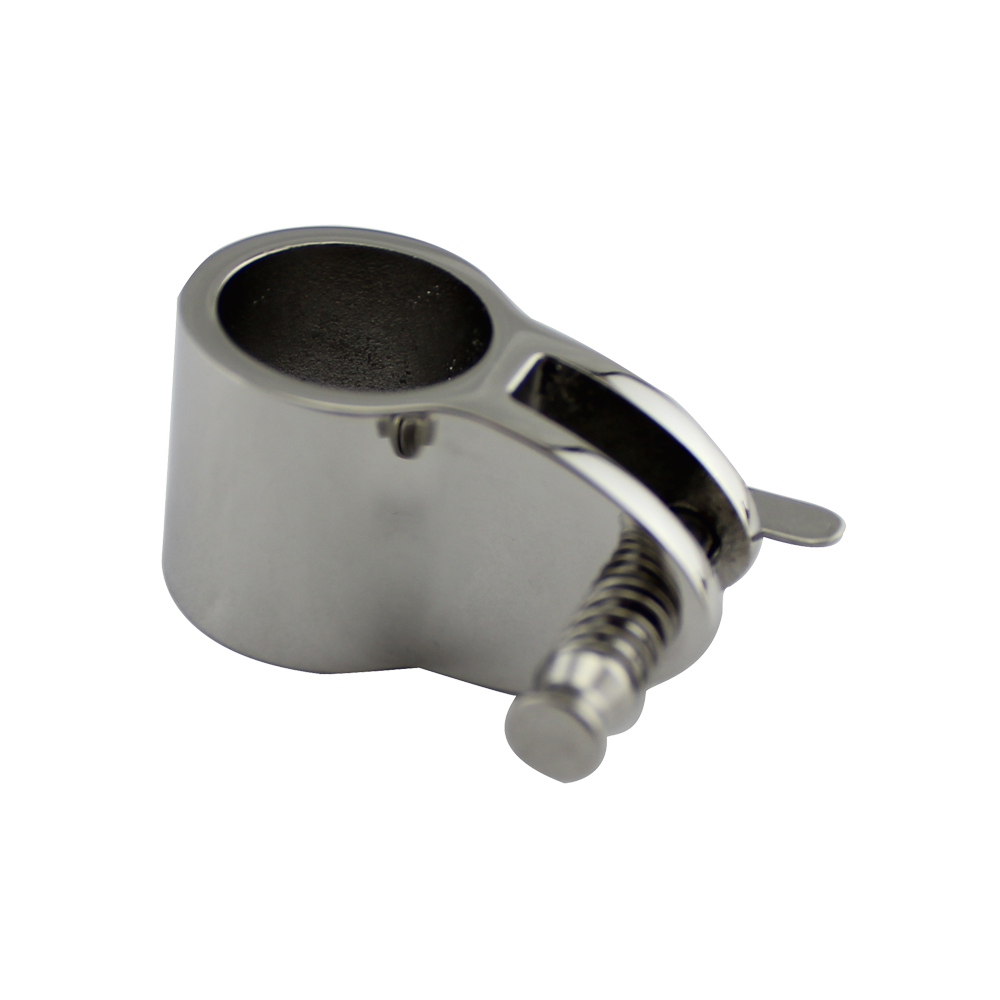

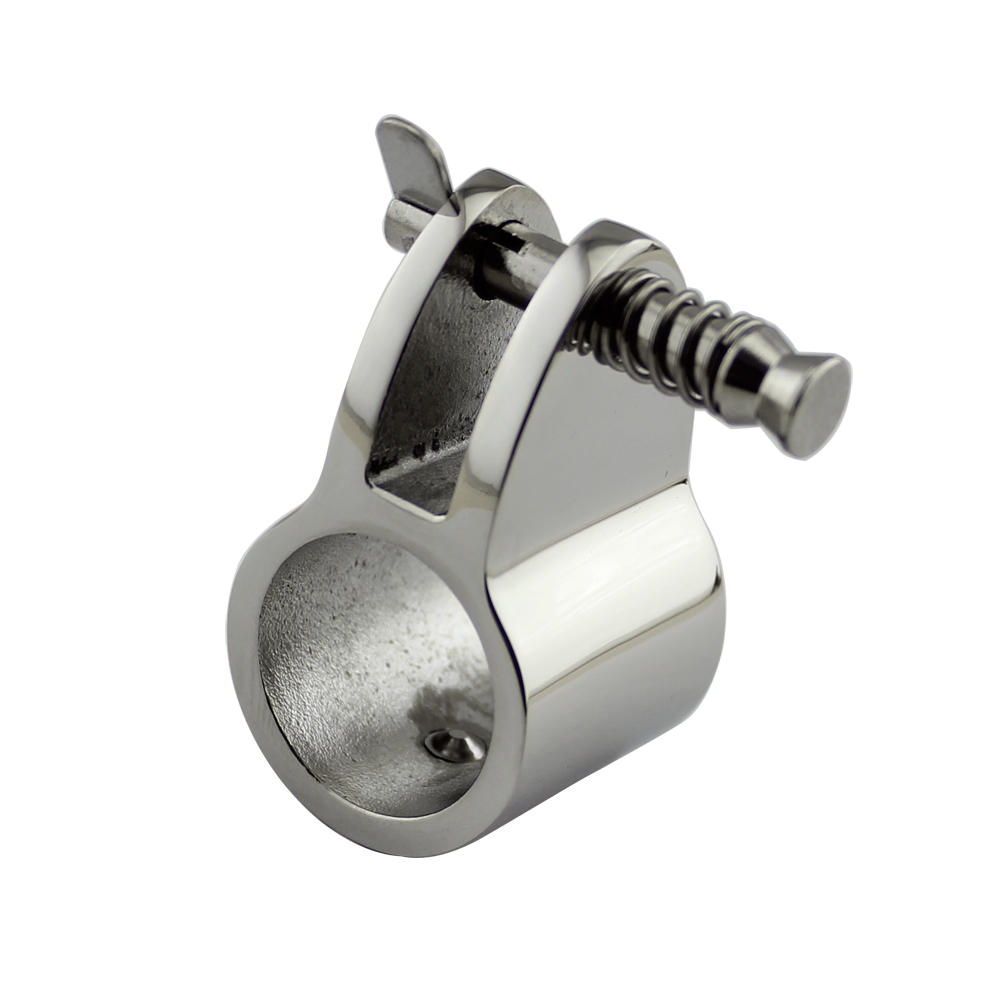

Marine Stainless-Steel 316 High-Polished Boat Bimini Top Hardware – Jaw Slide with Spring Pin RICHWITS ZB1407 jaw slide lets you fold, adjust or remove your bimini frame in one second while keeping the canopy locked at speed. Investment-cast from solid 316 SS, mirror-polished to 400 grit and then electropolished for lifetime immunity to salt-water pitting. The captive spring pin (Ø 5 × 25 mm) is also 316 SS—no lost parts, no rust streaks on canvas. Radiused jaw mouth accepts standard 7/8" (22 mm) or 1" (25 mm) OD tubing and eliminates line snags.

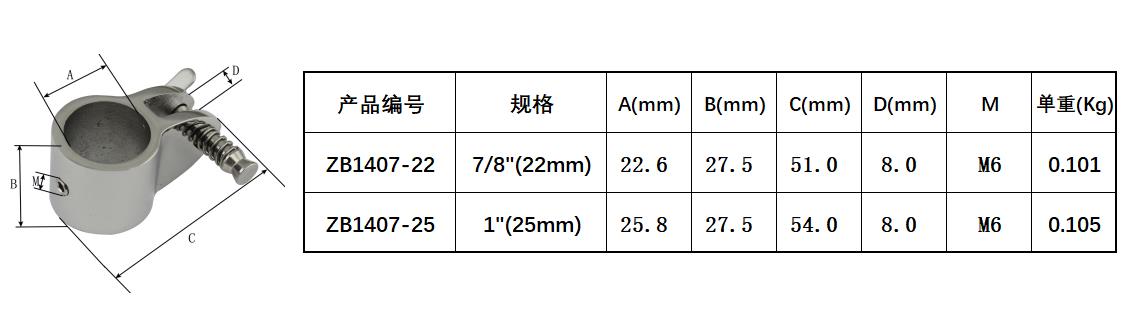

Dimension & Weight
Product Code
Tube Size
A mm
B mm
C mm
D mm
M
N.W kg
Pin Ø × L mm
Jaw Gap mm
ZB1407-22
7/8" (22 mm)
22.6
27.5
51.0
8.0
M6
0.101
5 × 25
22–23
ZB1407-25
1" (25 mm)
25.8
27.5
54.0
8.0
M6
0.105
5 × 25
25–26
Key Features & Benefits
316 SS One-Piece Casting – zero weld seams, zero failure, lifetime anti-rust.
High-Polish + Electropolish – salt rinses off; no tea staining or micro-pits.

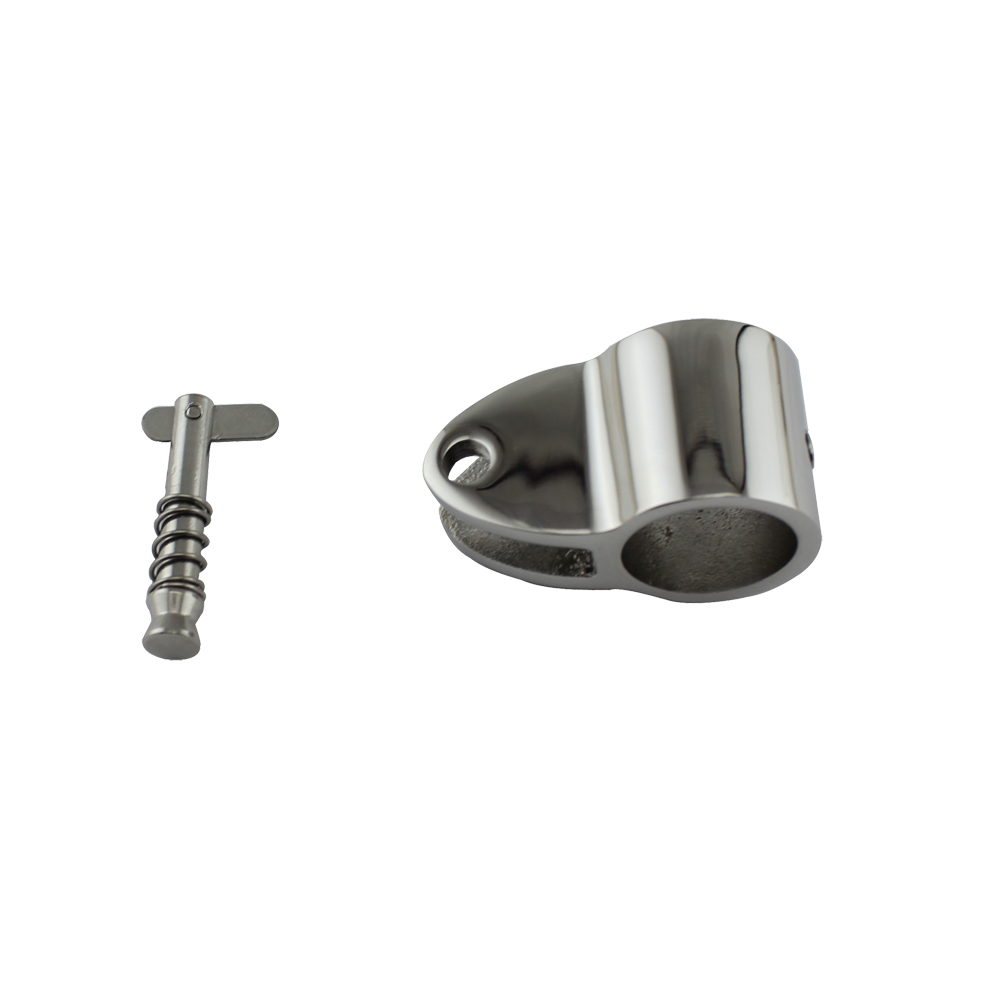

Captive Stainless Spring Pin – single-hand release, no drop-overboard risk.
Chamfered Jaw & Eye Edges – prevents chafe on canvas or sheets.
Low-Profile 27.5 mm Width – fits under boom, tonneau or sail cover.
80 kgf Safe Working Load – 4:1 safety factor, tested per ISO 12215.
Lightweight ~100 g – adds minimal topside weight for racing yachts.
Usage Scenarios
Bimini & T-Tops – quick-fold frame for low bridges or storage.
Dodger & Spray-Hood – detach canvas in seconds for engine access.
Kayak/SUP Canopy – salt-proof slide for lightweight aluminum tube.
Deck Awning – jaw slide doubles as tarp tensioner on lifelines.
Fast Logistics – FedEx/UPS/DHL global 3-7 day delivery.
OEM/ODM – custom angle, gap or logo within 10 days.
Test Certificates – mill cert, 1 000 h salt-spray, SWL report supplied free.
FAQ
Q1: Will the spring pin rust or bend? A1: Pin is 316 SS, passivated; 80 kgf shear tested—no rust, no bend.
Q2: Can I use it on 1" tube? A2: Yes, ZB1407-25 fits 25 mm OD; nylon shim included for rattle-free fit.
Q3: Does it rattle under engine vibration? A3: No—pin is spring-preloaded; add a drop of silicone grease for silent mode.
Q4: Do you supply matching eye ends or deck hinges? A4: Yes, ZB1408 eye end and ZB1409 deck hinge share the same 5 mm pin—bundle available.
Q5: Is the polish maintained after welding? A5: Weld area re-polished and electropolished free; no heat tint left.
Packing & Delivery
