Product Overview

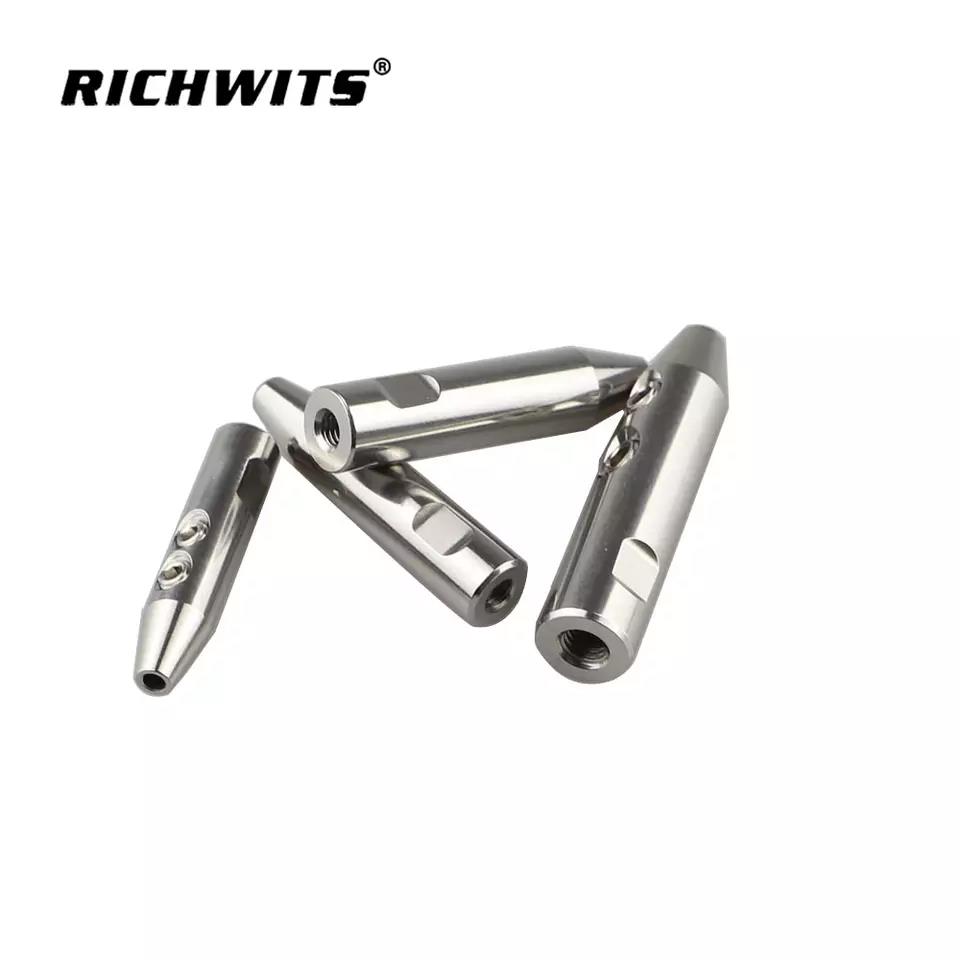

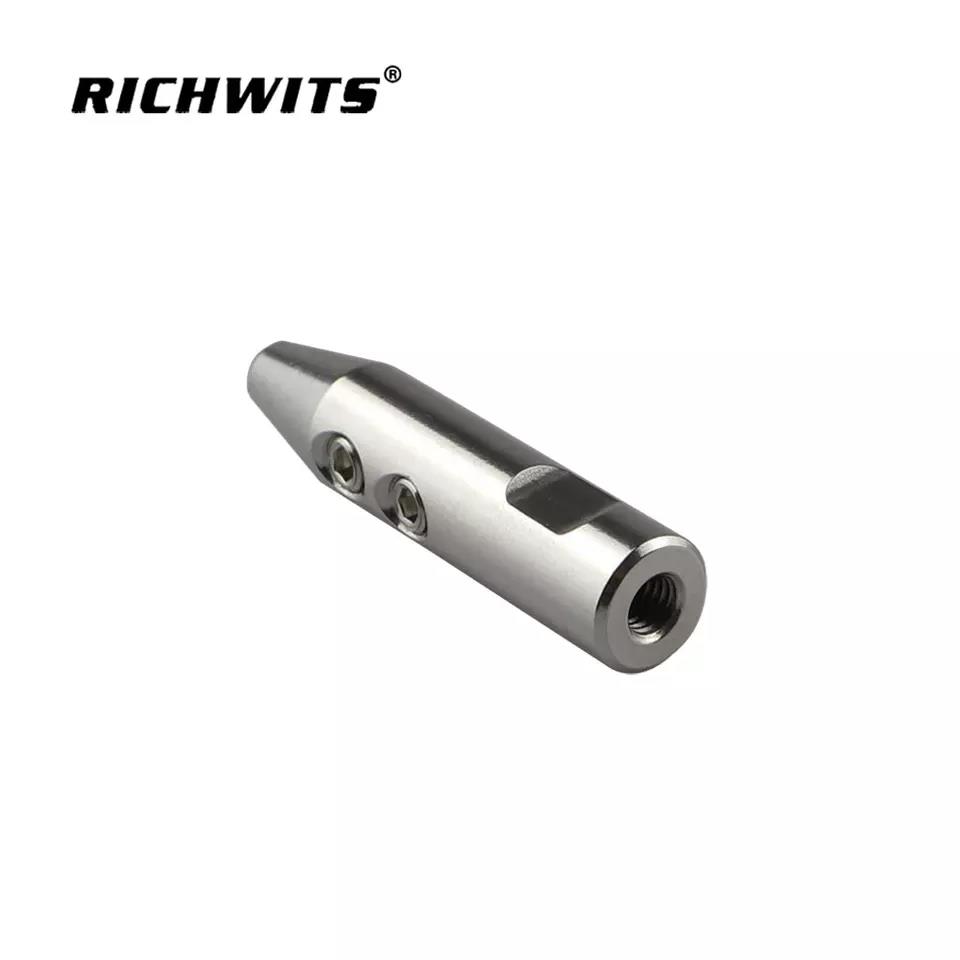

Hardware Stainless-Steel Wire Rope Thread Terminal – Model ZB6899 Series
RICHWITS ZB6899 gives you a precision-machined, salt-proof terminal that locks wire rope into threaded anchors, turnbuckles or eye bolts.
CNC-turned from 316 marine stainless (304 on request), then mirror-polished and passivated for lifetime immunity to salt-spray, humidity and chemical exposure.

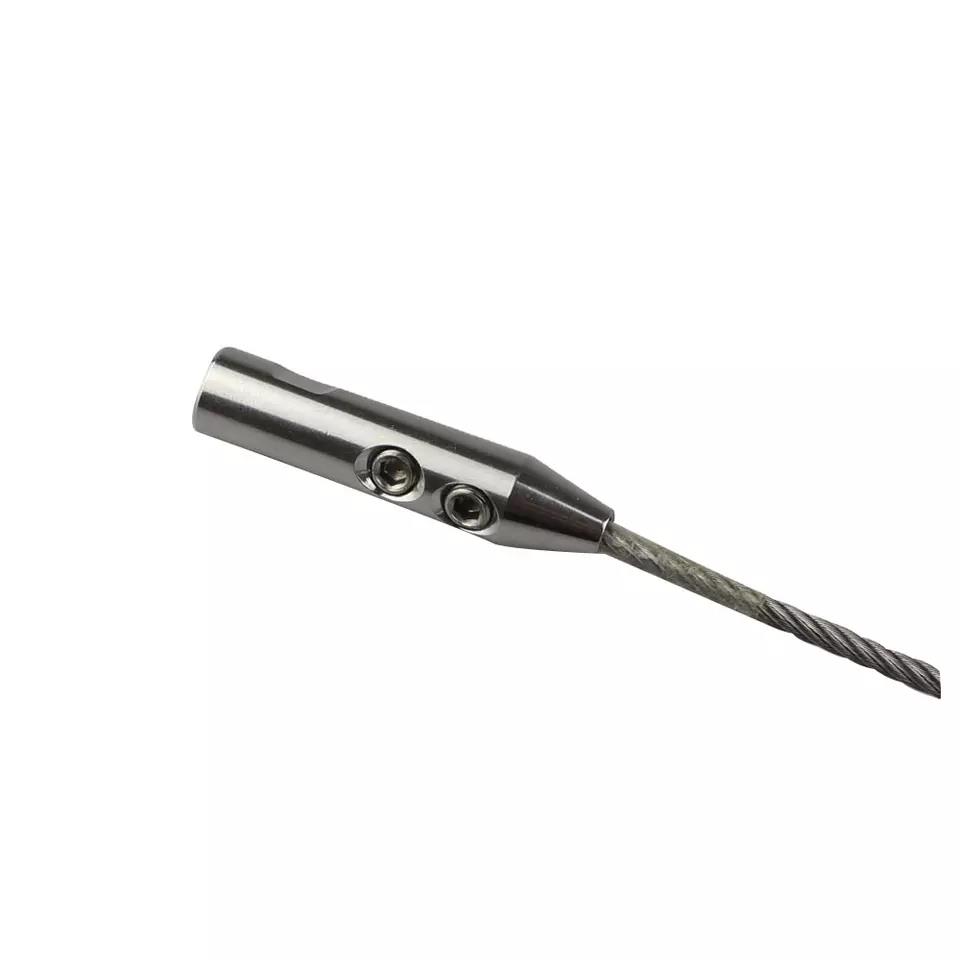

Double-cone wedge design grips 3–6 mm wire rope without crushing; M5–M8 threaded shank mates with standard rigging hardware.
Four sizes deliver working-load limits from 80 kgf to 200 kgf—perfect for shade sails, balustrades, yacht rigging or architectural cable systems.

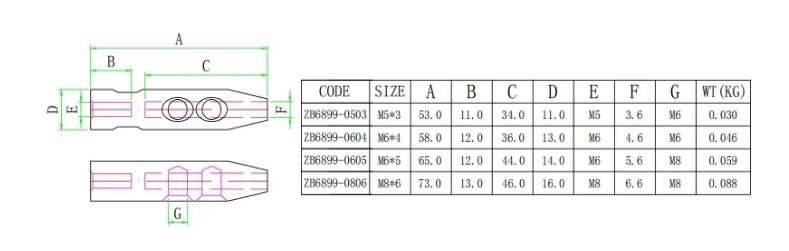

Dimension & Working Loads

Key Features & Benefits

1. 316/304 SS CNC-Turned Body – zero welds, zero rust; 316 standard for marine use.

2. Double-Cone Wedge Grip – locks 3–6 mm wire rope without crushing or slipping.

3. M5–M8 Standard Threads – mates with turnbuckles, eye bolts and rigging screws.

4. Mirror-Polished & Passivated – salt rinses off; no pitting or tea staining.

5. Hex Drive Head (G) – 6–8 mm A/F; wrench-tighten to 25 N·m for max grip.

6. Compact 53–73 mm Length – fits tight spaces in balustrades or yacht rigging.

7. Factory-Direct Price – 30 % cheaper than swaged terminals; MOQ 500 pcs.

Usage Scenarios

• Shade Sail & Awning Cables – 4–6 mm wire; M6–M8 threads for turnbuckle connection.

• Stainless Balustrades – 3–5 mm wire; concealed terminal for clean aesthetics.

• Yacht Rigging & Guard Rails – 316 SS resists saltwater; 200 kgf WLL for lifelines.

• Architectural Cable Systems – mirror polish matches high-end interior designs.

Certifications / Testing

• Proof-loaded to 2 × WLL (160–400 kgf)

• Salt-spray 720 h (316) / 480 h (304) per ASTM B117

• Passivated per ASTM A967

Why Choose RICHWITS

• Factory-Direct – wholesale only, 30 % cost saving vs. swaged equivalents.

• In-Stock – 300 000 pcs ready, MOQ 500 pcs, 48 h dispatch.

• Fast Logistics – FedEx/UPS/DHL global 3-7 day delivery.

• OEM/ODM – custom thread, logo or finish within 2 weeks.

• Test Certificates – mill cert, salt-spray, proof-load report supplied free.

FAQ

Q1: Will 316 SS really never rust?
A1: Correct—2-3 % Mo gives lifetime immunity to chlorides; polish yearly to keep the mirror shine.

Q2: What safe working load (SWL)?
A2: From 80 kgf (3 mm) to 200 kgf (6 mm); divide cable load by safety factor 4:1.

Q3: Can I use the M6×5 for 5 mm wire rope?
A3: Yes—5.6 mm bore fits 5 mm wire; 5 mm thread engagement with standard turnbuckles.

Q4: Will the wedge slip under vibration?
A4: No—double-cone design locks under load; tested 24 h vibration 50–500 Hz, zero slip.

Q5: Are spare 304 versions available?
A5: Yes—304 option on request, MOQ 500 pcs, 15 % price discount.

Q6: Do you offer test certificates?
A6: Mill certificate for 316/304 SS, salt-spray report, and proof-load certificate supplied free on request.
