Product Overview

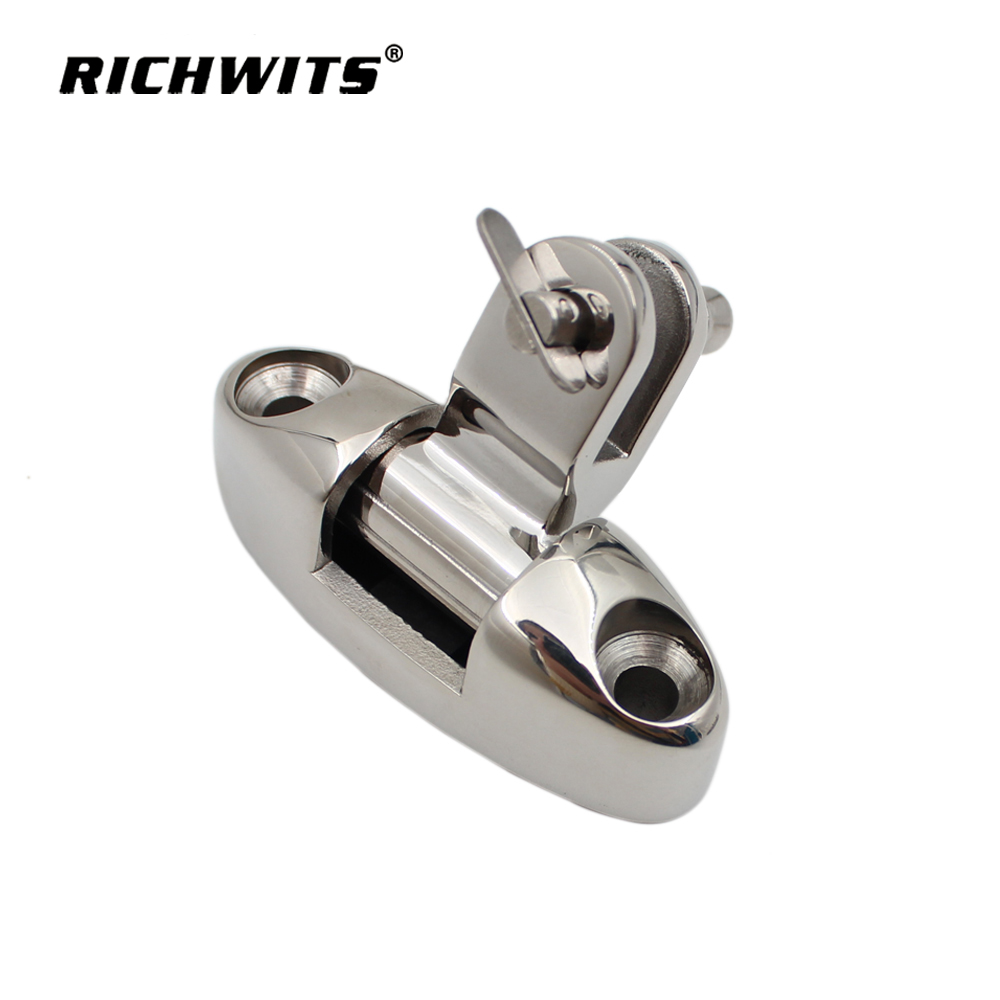

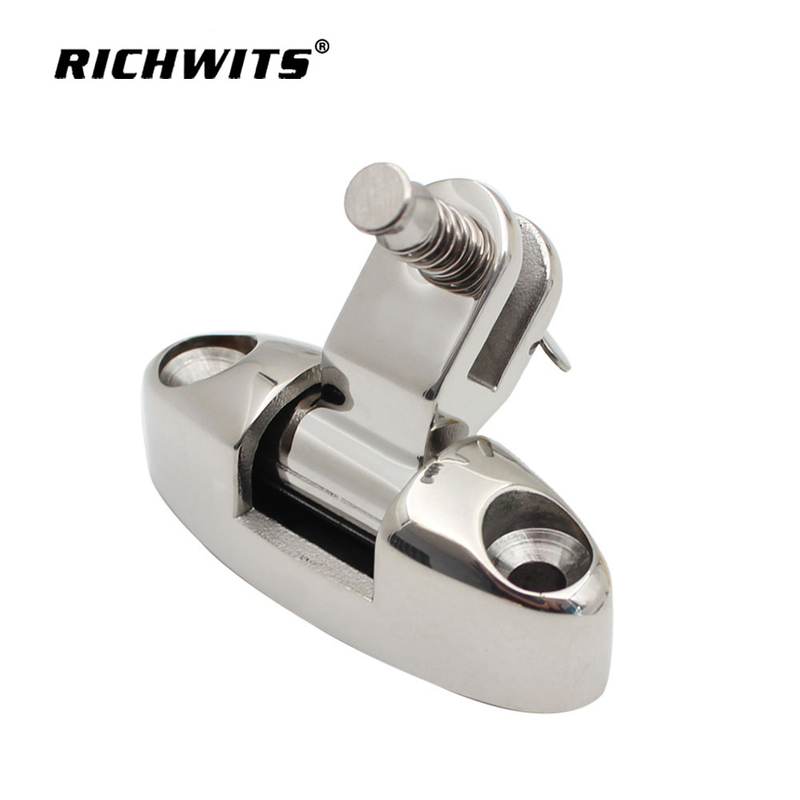

Factory Manufacturing Deck Hinge Swivel Mount with Pin from RICHWITS is a fully articulating 316 stainless-steel hinge that lets you fold, remove or lock-down biminis, tables, seats or solar arches in seconds. Investment-cast body, CNC-machined pin and 400-grit polish give yacht-grade looks plus lifetime immunity to salt-water pitting. One-hand operation—no tools needed once mounted.
Key Features & Benefits
Marine 316 SS cast body & pin – zero rust, zero weld cracks.
270° swivel + lift-off – fold frame flat or lift entire top away for storage.

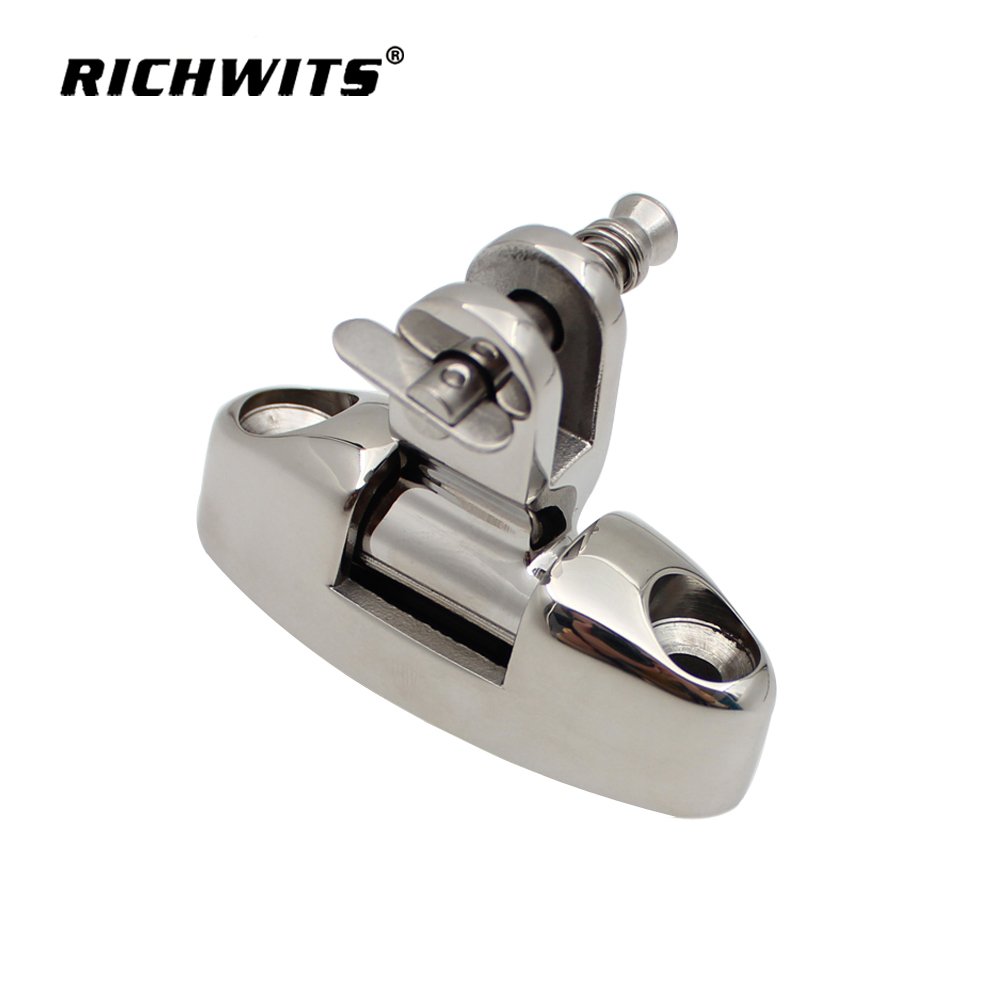

Captive spring pin – stainless detent ball prevents accidental drop-out in chop.
Low-profile base – 8 mm thick, fits under cushions or solar panels without rocker.
4 chamfered holes – accept M6 or ¼" lag screws; 50 mm spacing matches most extrusion slots.

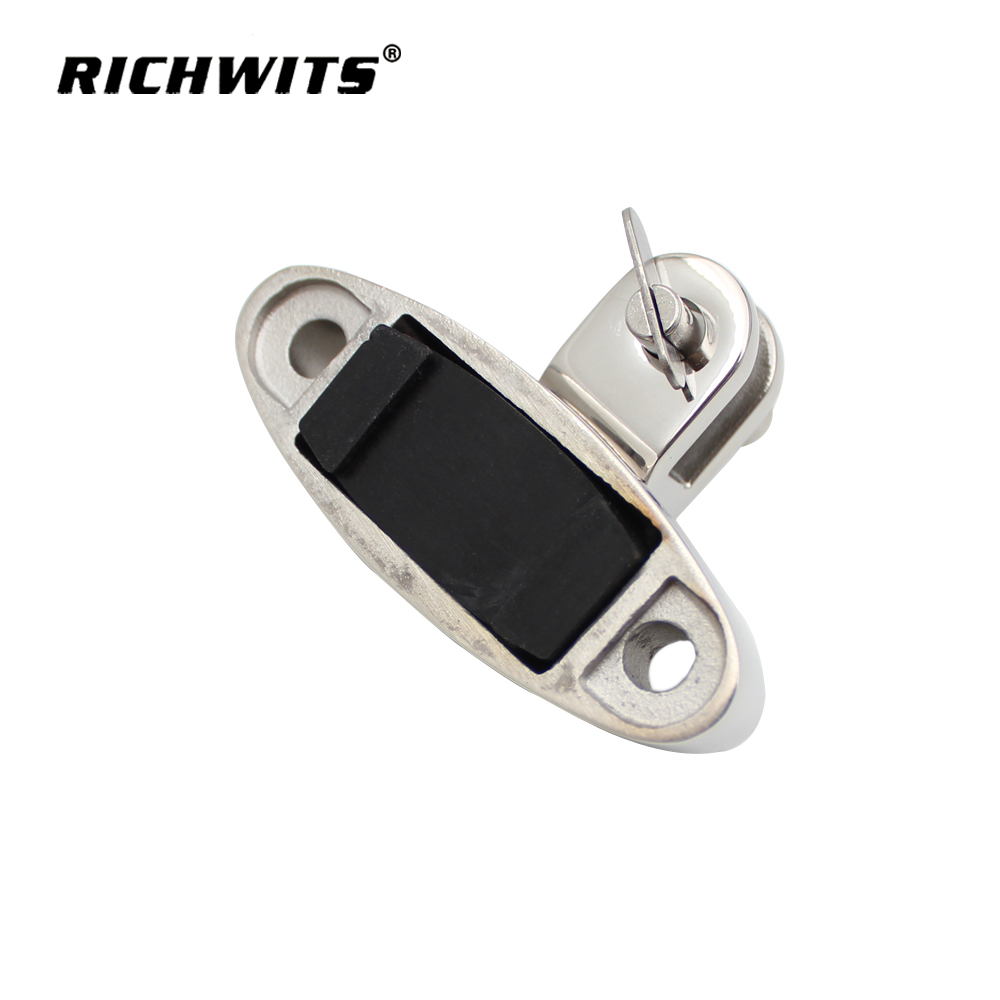

Silent UV-stable washers – eliminate metal-on-metal rattle when underway.

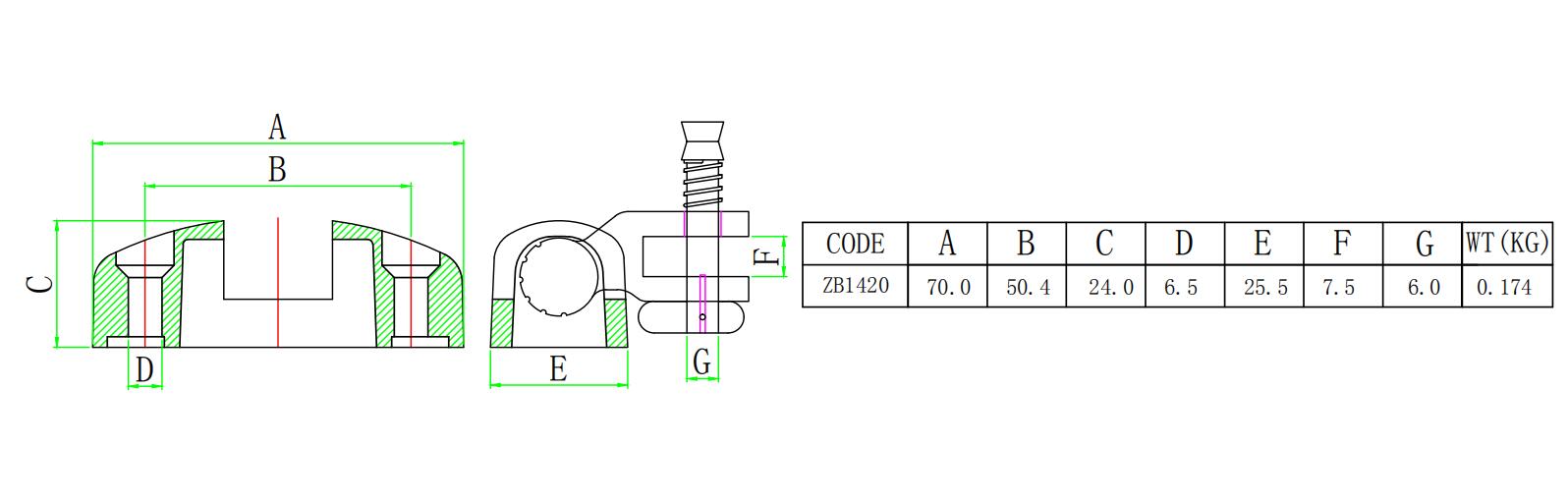

Technical Specifications
| Model | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Pin Ø (mm) | Safe WLL* | N.W (kg) |
| ZB1420 | 70.0 | 50.4 | 24.0 | 6.5 | 25.5 | 7.5 | 180 kgf | 0.174
|
Usage Scenarios
Bimini & Dodger Frames – quick-release when bridge clearance drops.
Fold-down Tables – swivel mount lets leg tuck under seat.
Solar Panel Wing – hinge panel outward for deck access, pin-lock when sailing.
Removable Ski/Towel Rail – lift off rail before covering boat for winter.
Why Choose RICHWITS
Factory-direct – 28 % below European equivalent.
In stock – 3 000 pcs ready; MOQ 50.
Fast logistics – DHL/UPS 3-6 days global.
OEM in 10 days – laser logo, special angle or extra drain hole.
Free test certs – mill cert, salt-spray 1 000 h report, pull-test data.
FAQ
Q1. Will the pin corrode inside the hinge?
A1. Pin is 316 SS, same as body; tolerances <0.05 mm so no moisture pocket → no crevice attack.
Q2. Can I swap the captive pin for a quick-pull ring?
A2. Yes, M6 threaded pull-ring pin available; MOQ 100 pcs.
Q3. What screw length for ¾" plywood deck?
A3. Use 1" (25 mm) #14 lag screw; pre-drill 3 mm pilot to avoid split.
Q4. Does it rattle under engine vibration?
A4. No—PTFE thrust washer factory-installed; silent up to 120 dB engine room.
Q5. Do you supply left-hand / right-hand pairs?
A5. Hinge is symmetrical; order two for port & starboard folding.
