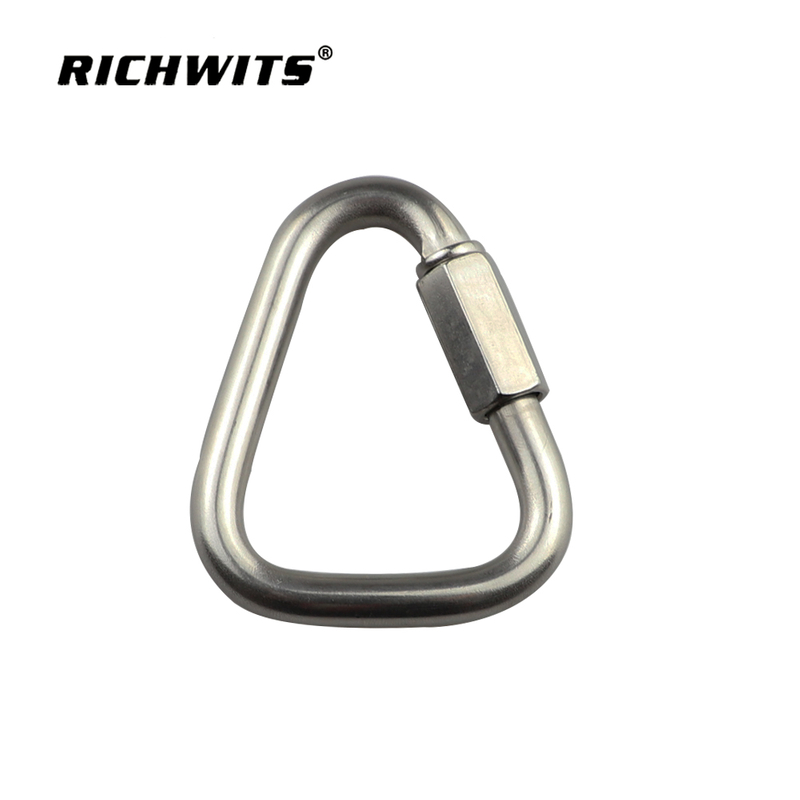

Cheap Delta Quick Link Stainless Steel Factory

Precision Engineering for Stable Load Distribution

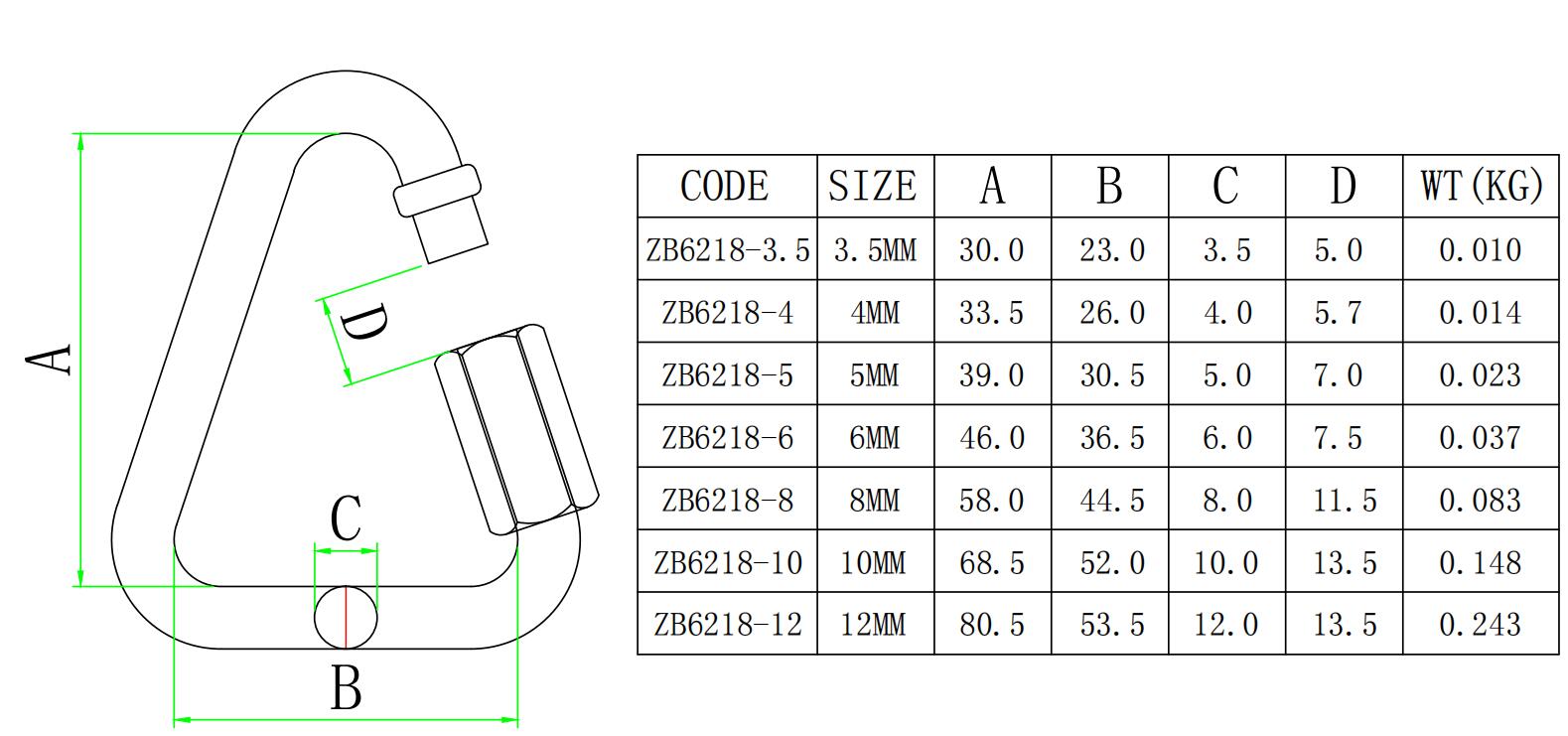

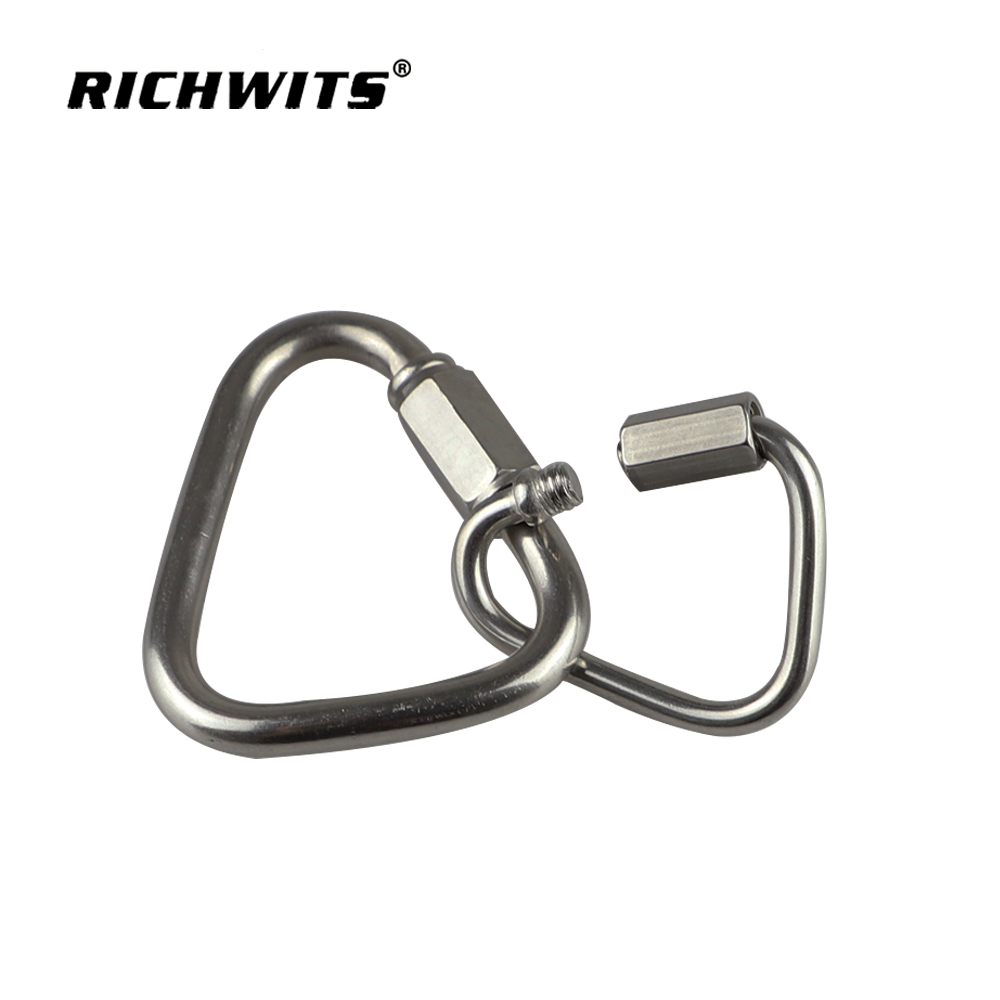

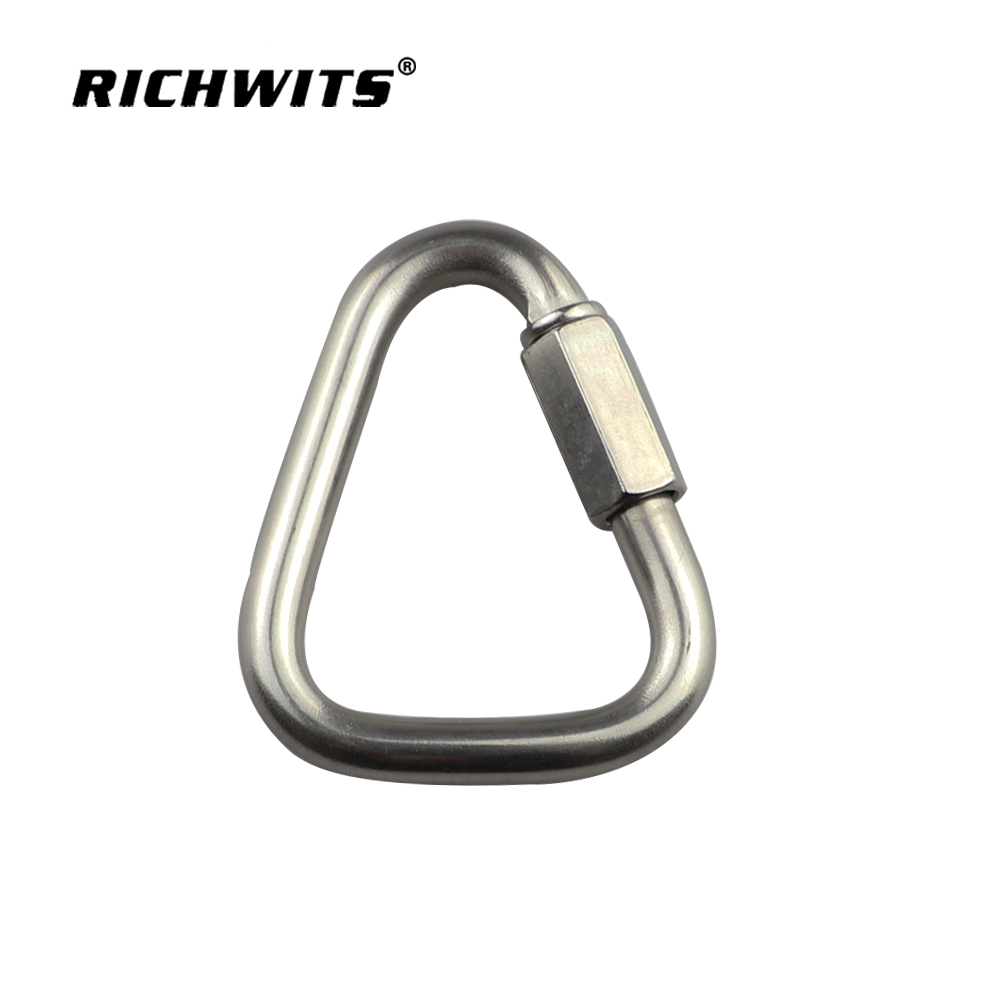

Understanding the precise geometry and load-bearing capabilities of your hardware is crucial for project safety. The ZB6218 series features a meticulously calculated triangular profile that naturally guides applied forces toward the strongest corners of the link, preventing the dangerous shifting and side-loading often experienced with standard oval carabiners. We offer a comprehensive matrix of seven standard wire diameters, ranging from the lightweight 3.5 mm profile to the robust 12 mm heavy-duty option. This extensive sizing ensures you have the exact dimensional fit for your specific webbing or chain requirements. The working load limits are strictly calibrated, providing a dependable capacity from 30 kgf up to 350 kgf. Because these links are cold-bent rather than cast, the internal grain structure of the steel remains uninterrupted, eliminating the microscopic voids that can cause sudden failures in lower-grade alternatives. Review the detailed dimension chart and application visuals below to select the optimal configuration for your structural needs.

Key Features & Benefits

Engineered for Maximum Durability and Efficiency

Every aspect of the ZB6218 series has been purposefully engineered to solve real-world connectivity challenges, combining rugged physical durability with highly intuitive daily operation.

1. 304/316 SS Cold-Bent Wire – Manufactured without welds, ensuring absolutely no cast defects or weak points. The cold-forming process hardens the steel for superior tensile strength. 316 stainless is available on request for aggressive salt-water environments.

2. Delta Wide-Throat Shape – The specialized geometry creates a generous 15–48 mm opening that effortlessly swallows wide webbing, thick chain links, or braided rope, keeping attachments securely seated at the flat base.

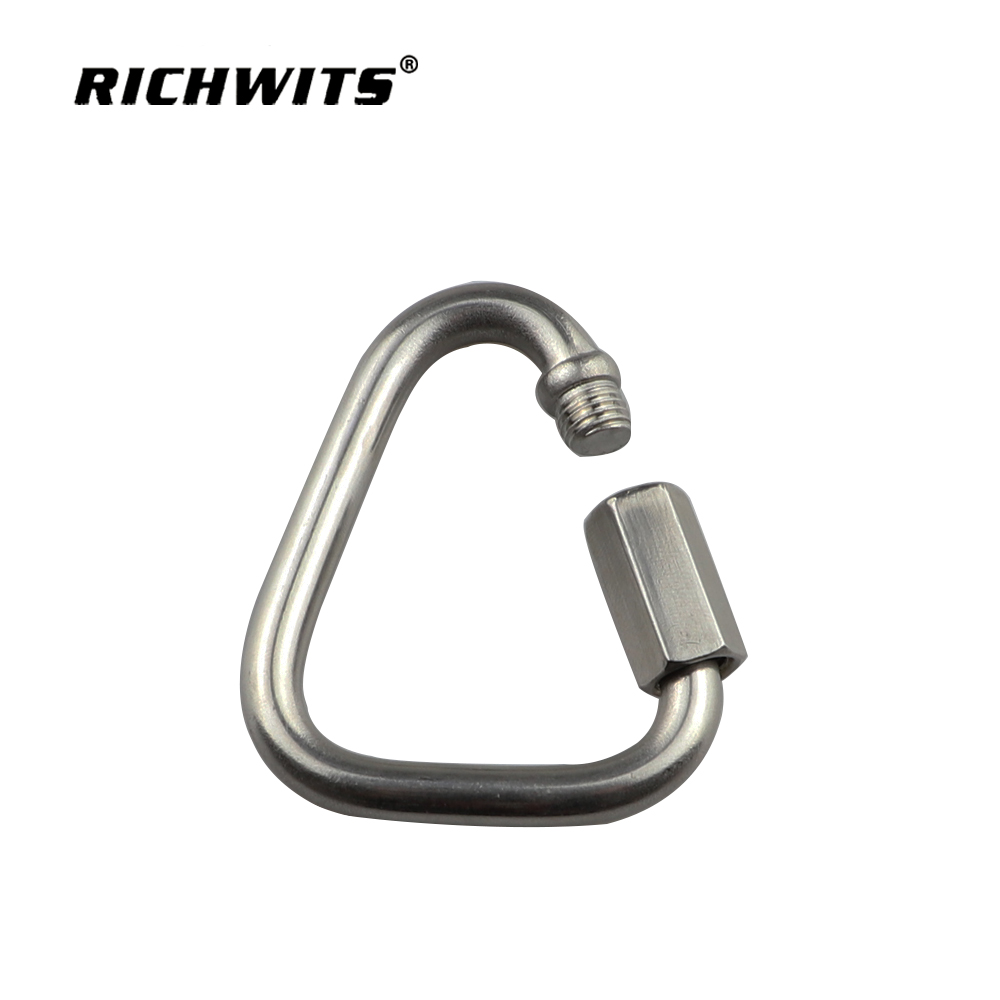

3. Hand-Tight Threaded Barrel – Designed for rapid deployment with zero tools required. The precision-cut threads offer a smooth, satisfying glide; simply unscrew to open the gate, and twist tight to achieve a rock-solid, vibration-resistant lock.

4. Electropolished Finish – Beyond its brilliant metallic sheen, this electrochemical treatment strips away microscopic surface impurities, resulting in perfectly smooth edges with no burrs. Corrosive salt and grime simply rinse off the slick surface.

5. Cost-Effective Design – Enjoy a structural solution that is up to 40 % cheaper than equivalent cast shackles. With an accessible MOQ of 500 pcs, it is the ultimate choice for large-scale project procurement.

6. Size for Every Job – Our comprehensive matrix scales perfectly to your needs, ranging from a featherlight 10 g mini-link (3.5 mm) for light suspension, up to a massive 243 g heavy-duty connector (12 mm) for serious load bearing.

7. Factory-Direct Price – Benefit from optimized supply chain economics. We cater exclusively to volume procurement, meaning you receive direct-from-the-source pricing with absolutely no retail markup or middleman inflation.

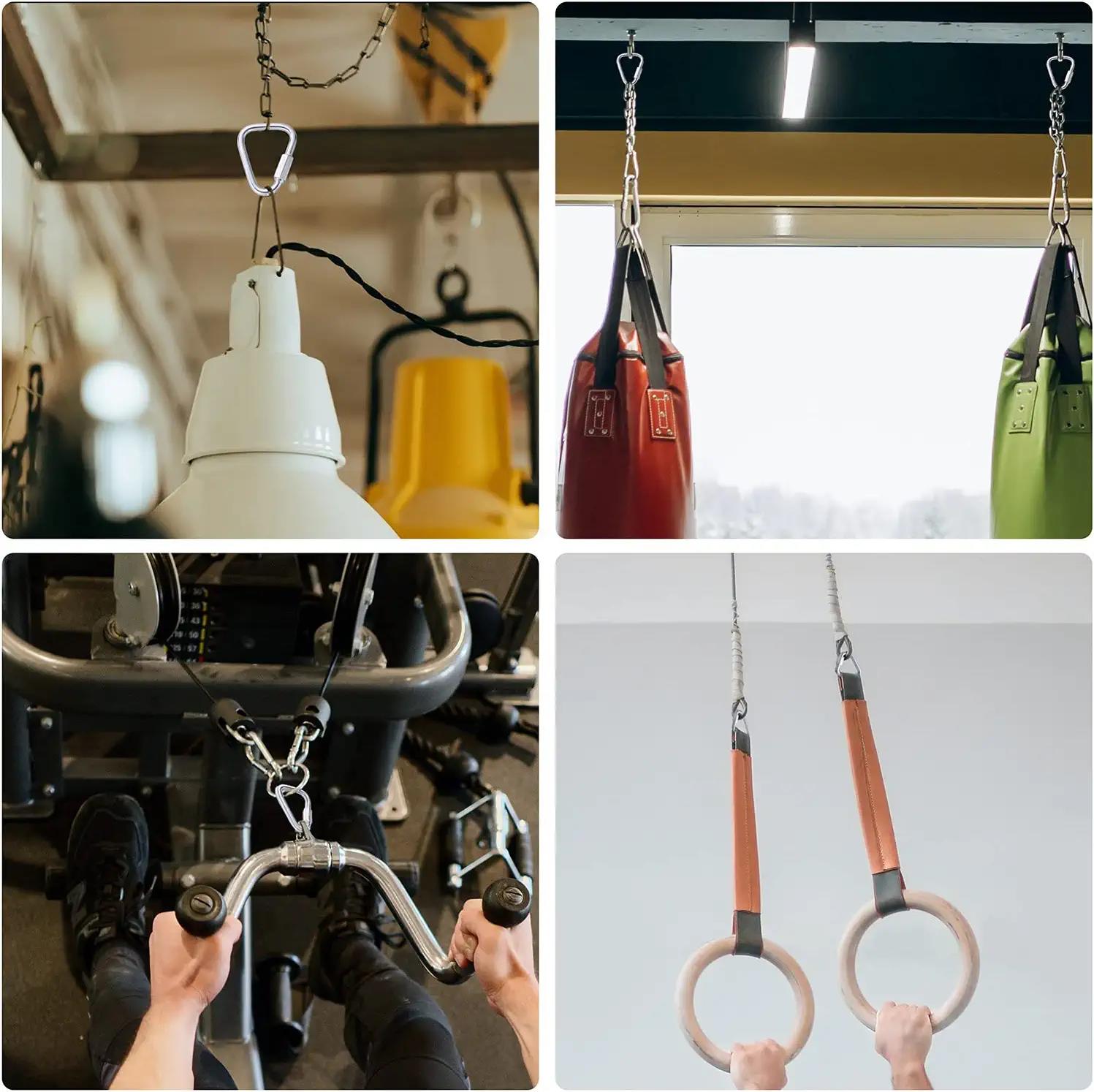

Usage Scenarios

Versatile Applications Across Demanding Industries

The highly adaptable triangular profile and robust stainless steel construction make this hardware indispensable across a wide spectrum of challenging indoor and outdoor environments.

• Tow Straps & Trailer Chains – Utilizing the robust 8–12 mm sizes rated for 200–350 kgf, these links provide critical security for vehicle transport. The oversized nut allows operators to hand-tighten the connection reliably on the road, even while wearing heavy work gloves.

• Hammock / Swing Suspension – The 5–6 mm variants, rated for 80–120 kgf, are the perfect companion for recreational rigging. The wide throat effortlessly accommodates flat tree straps without causing fabric bunching or premature friction wear.

• Shade Sails & Awnings – Employing the 6–8 mm sizes rated at 120–200 kgf, the delta shape is specifically chosen to spread the intense corner loads of heavy canvas, preventing the hardware from twisting during severe coastal winds.

• Farm & Ranch Gates – The heavy-duty 10–12 mm links, boasting a 280–350 kgf capacity, offer relentless performance in agricultural settings. The electropolished steel guarantees no rust will form, even when constantly exposed to driving rain or corrosive manure.

Certifications / Testing

Rigorous Quality Control Standards

Visual inspection is never enough when structural safety is on the line. Our manufacturing facility enforces a rigorous, multi-stage quality control protocol to ensure every single quick link performs exactly to its stated international specifications.

• Overload Verification: Every production batch is strictly proof-loaded to 2 × WLL (ranging from 60–700 kgf), guaranteeing structural integrity well beyond standard operational limits.

• Corrosion Resistance: Samples are subjected to brutal environmental simulations, enduring an exhaustive salt-spray test of 480 h for the 304 alloy, and up to 720 h for the 316 alloy, in strict accordance with the ASTM B117 standard.

• Surface Treatment: All units are thoroughly passivated per ASTM A967 protocols, chemically stripping away free iron from the surface to create a resilient, impenetrable oxide layer against rust.
