Product Overview

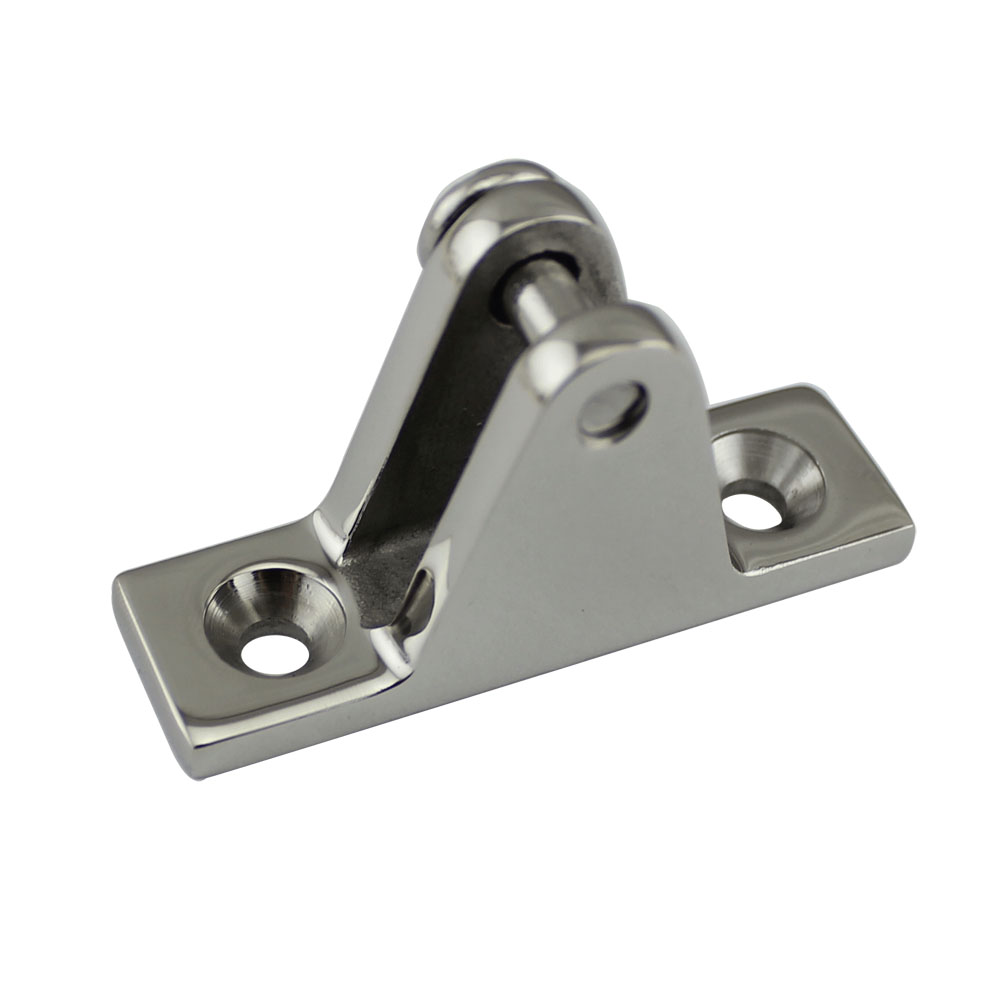

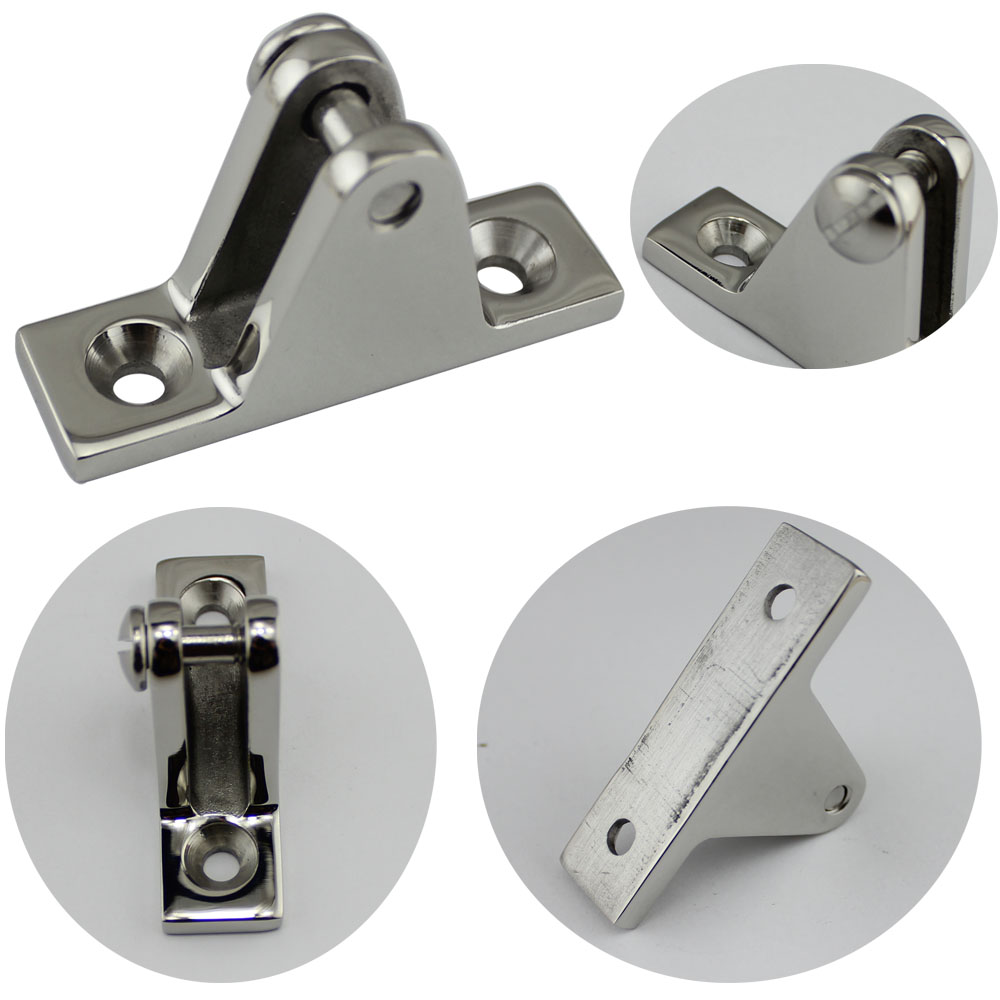

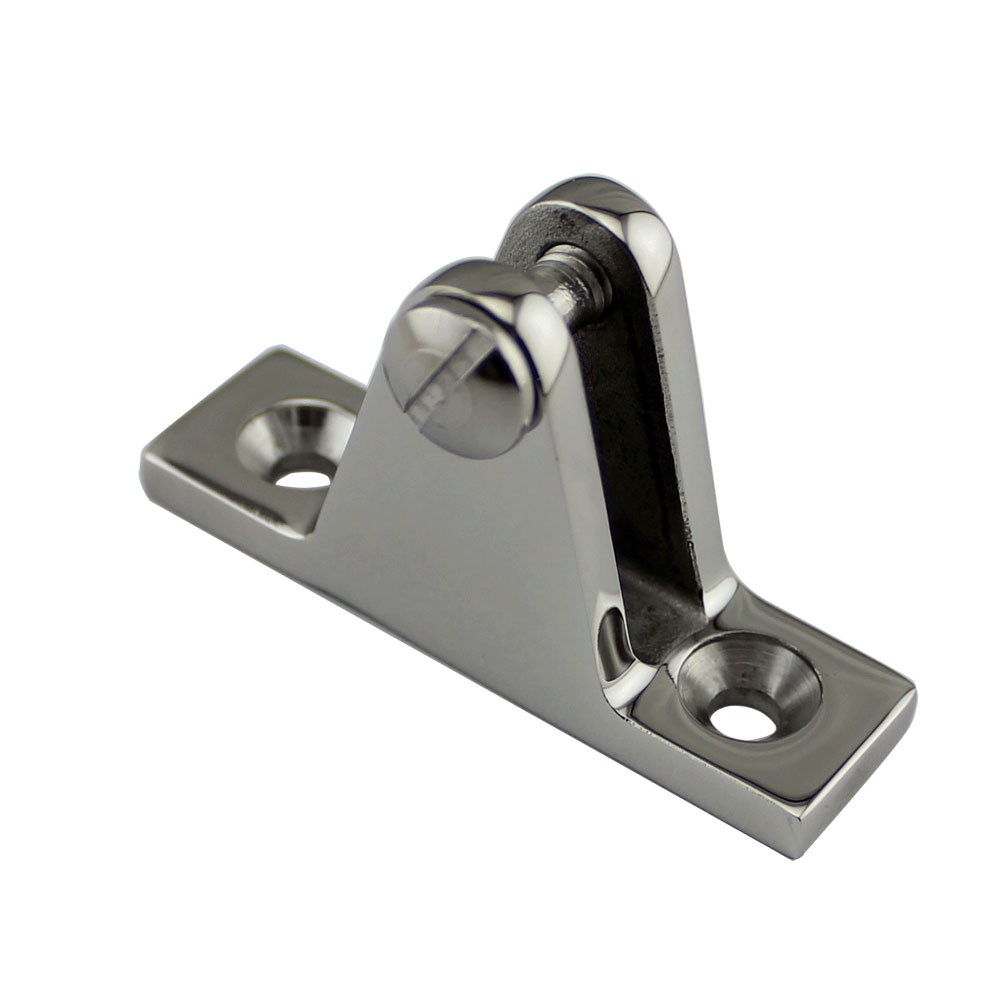

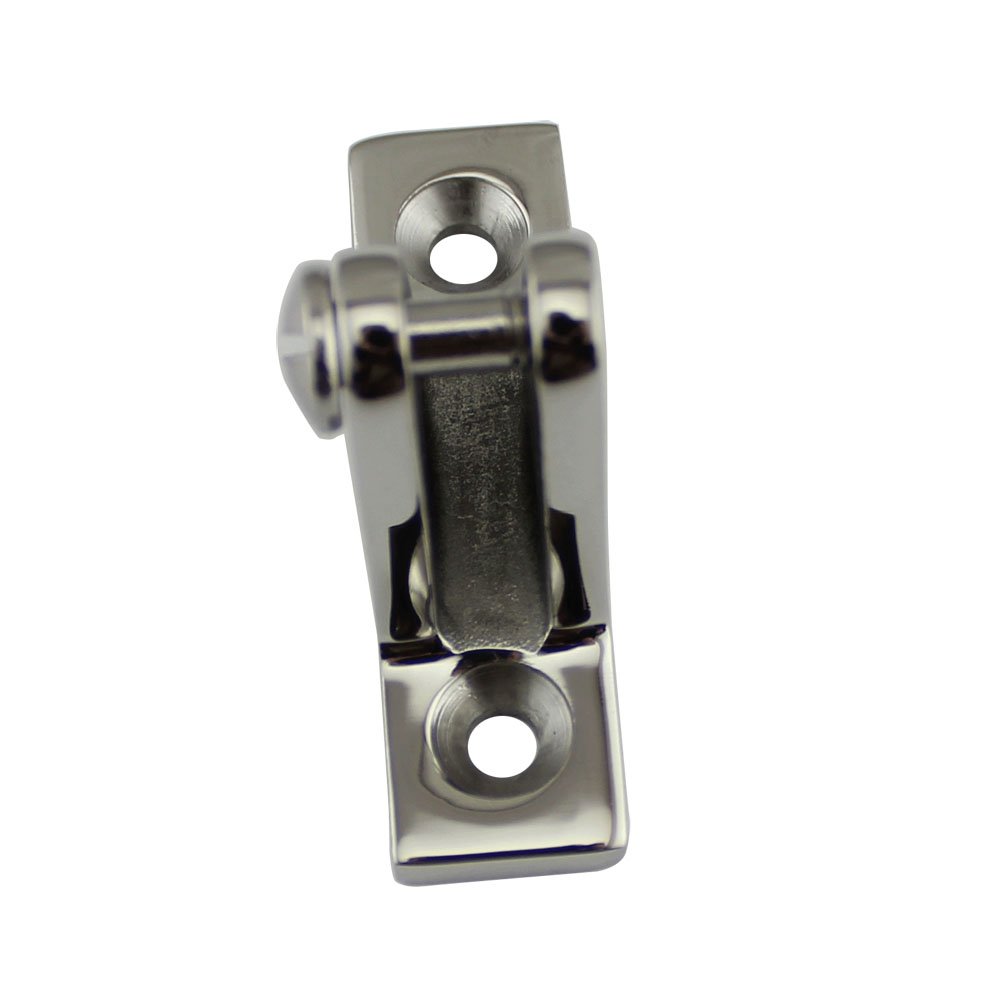

Marine Hardware Bimini Tops Deck Hinge – Stainless Steel
RICHWITS ZB1411 deck hinge is the rock-solid, invisible link between your bimini frame and the boat.
Investment-cast from solid 316 stainless steel, mirror-polished to 400 grit and then electropolished, it delivers lifetime immunity to salt-water pitting and a yacht-quality shine.
The low-profile body (only 17 mm high) keeps decks snag-free, while the 34 mm base spreads load across 2 × M6 fasteners for 150 kgf SWL—perfect for biminis, dodgers, spray-hoods or flag-pole sockets.

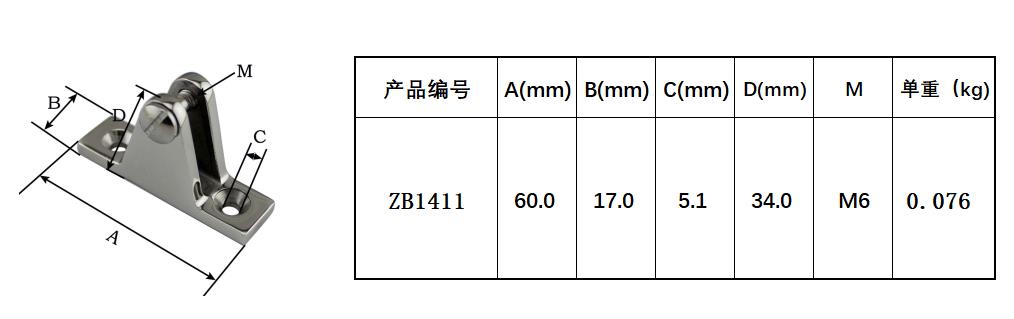

Dimension & Weight
| CODE | A mm | B mm | C mm | D mm | M | N.W kg | Fastener C’-C mm | Base Area mm² |
| ZB1411 | 60.0 | 17.0 | 5.1 | 34.0 | M6 | 0.076 | 24 | 60 × 34 |
Key Features & Benefits
316 SS One-Piece Casting – zero weld seams, zero rust, zero failure.
High-Polish + Electropolish – salt rinses off; no tea staining.
Low-Profile 17 mm Height – feet won’t trip on sheet or toe-rail.
5.1 mm Material Thickness – 150 kgf SWL, 4:1 safety factor (test report available).
Chamfered Hole Edges – accepts M6 or 1/4" lag screws; prevents gel-coat cracks.
Hidden Fasteners – counter-sunk 90° cups leave flush finish for professional look.
Lightweight 76 g – adds minimal topside weight for racers.
Usage Scenarios
Bimini & T-Tops – hinge front bow to deck for quick fold-forward.
Dodger & Spray-Hood – detach canvas in seconds for engine service.
Flag-Pole or Light Mast – base hinge pivots to lay pole flat for bridges.
Kayak/SUP Canopy – salt-proof hinge for lightweight aluminum tube.
Why Choose RICHWITS
Factory-Direct – wholesale & retail welcomed, 25 % cost saving vs. branded equal.
In-Stock – 8 000 pcs ready, MOQ 100 pcs, 48 h dispatch.
Fast Logistics – FedEx/UPS/DHL global 3-7 day delivery.
OEM/ODM – custom angle, base length or logo within 10 days.
Test Certificates – mill cert, 1 000 h salt-spray, SWL pull test supplied free.
FAQ
Q1: Will 316 SS really never rust?
A1: Correct—2-3 % Mo gives lifetime immunity to chlorides; polish yearly to keep the mirror shine.
Q2: What safe working load (SWL) per hinge?
A2: ZB1411 = 150 kgf (ultimate 600 kgf) with 4:1 safety factor—tested per ISO 12215.
Q3: Can I weld it to an aluminum deck?
A3: Use 316L filler or bolt-on method; avoid direct AL-SS weld to stop galvanic attack.
Q4: Do you supply matching screws or backing plates?
A4: Yes—M6×30 A4 lag screws, M6 nyloc nuts & 316 backing plate available, MOQ 50 pcs.
Q5: Are the holes de-burred?
A5: All edges chamfered 0.5 × 45° to prevent gel-coat cracks and hand injury.
Q6: Do you offer test certificates?
A6: Mill certificate for 316 SS, load test report, and salt-spray certificate supplied free on request.
