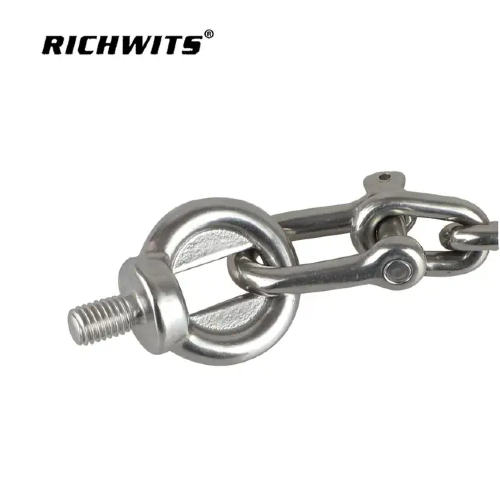

A connection point often starts with one small piece of hardware. An eye bolt is a threaded fastener with a round or oval loop at one end, used to attach ropes, cables, chains, hooks, shackles, or other rigging parts to a fixed structure. Unlike a standard bolt, which mainly joins materials together, an eye bolt creates a clear attachment point for securing, pulling, hanging, or lifting tasks. Wudi Zhibo Metals Co., Ltd. supplies stainless steel hardware for marine, outdoor, industrial, and construction applications, helping customers use stronger and more corrosion-resistant fastening solutions.
What Does an Eye Bolt Do?
It Creates a Strong Attachment Point
The looped eye is the main working part of an eye bolt. It gives users a place to connect rope, wire rope, chain, hook, shackle, or cable. This makes the product useful on boats, machinery frames, outdoor structures, brackets, warehouses, and construction sites.
A good eye bolt should have a smooth eye, accurate thread, and suitable material. If the eye is rough, it may damage rope or cable. If the thread is poorly made, installation becomes difficult. If the material does not match the environment, rust or corrosion may reduce service life.
It Transfers Load Through the Threaded Shank
The threaded shank fixes the eye bolt into the mounting structure. It may screw into a threaded hole, pass through a plate, or work with a nut and washer. When installed correctly, the force moves from the eye through the shank into the base material.
Thread length matters. A longer shank can provide more installation depth in suitable applications. Wudi Zhibo Metals Co., Ltd. offers long shank 316 stainless steel eye bolts in M6 to M12 sizes, giving customers more options for marine, outdoor, and industrial fastening projects.
It Helps Guide the Direction of Pull
An eye bolt also helps organize the direction of force. The eye gives a visible connection point, making it easier to align ropes, chains, or cables with the intended pull direction. Proper alignment helps reduce bending stress and improves fastening stability.
The key point is simple: an eye bolt is not just a looped bolt. It is a connection component that should match the load direction, mounting surface, material, and connected hardware.
The Main Parts of an Eye Bolt
Part
What It Does
Why It Matters
Eye
Provides the loop for connection
Allows hooks, chains, ropes, or shackles to attach
Shank
Threads into or passes through the mounting base
Affects installation depth and holding strength
Nut and washer
Secure through-hole installation
Improve stability and surface contact
Material
Determines corrosion resistance
Important for marine and outdoor use
Shoulder
Supports suitable angled loading in specific designs
Helps reduce bending stress when properly seated
Eye
The eye is the looped head of the product. It should have a clean shape and smooth surface so that connected hardware can move or sit properly. For visible hardware, appearance also matters. Stainless steel eye bolts are often used on boats, outdoor structures, railings, and equipment because they look cleaner after installation.
Wudi Zhibo Metals Co., Ltd. uses precision casting, precision processing, and surface treatment technologies to produce stainless steel hardware with reliable finishing and practical performance.
Shank
The shank is the threaded part below the eye. It decides how the eye bolt is fixed. A short shank may work for compact installation, while a long shank is useful when more installation depth is needed.
Long shank eye bolts are practical for marine hardware, outdoor equipment, thicker plates, and frame structures. ZB Hardware’s long shank 316 stainless steel eye bolts are designed for customers who need corrosion resistance and stable fastening.
Nut and Washer

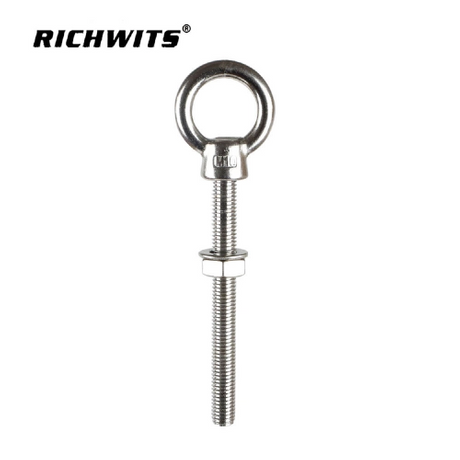

Some eye bolts are supplied with a nut and washer for through-hole installation. The eye bolt passes through the mounting material, the washer supports the surface, and the nut tightens the assembly.
A matched nut and washer can reduce installation problems. It avoids thread mismatch, improves surface contact, and makes assembly more convenient. This is useful for marine, construction, and industrial hardware projects.
Eye Bolt Materials Matter
Stainless Steel for Outdoor and Marine Use
Material is one of the most important factors in eye bolt performance. A fastener may have the right shape and size, but if the material cannot resist the working environment, it may rust, stain, or become difficult to remove.
Stainless steel is widely used because it offers corrosion resistance, durability, and a clean appearance. It is suitable for humid, wet, outdoor, coastal, and marine conditions. Compared with ordinary steel, stainless steel usually needs less maintenance and keeps a better finish in exposed installations.
Why SS316 Is Often Used Near Saltwater
SS316 stainless steel is commonly selected for marine and coastal environments because it offers stronger resistance to saltwater and chloride exposure. Saltwater spray, rain, humidity, and temperature changes can damage lower-grade fasteners faster.
For boat maintenance, dock hardware, offshore equipment, and outdoor rigging, SS316 helps reduce corrosion concerns. Wudi Zhibo Metals Co., Ltd. provides 316 stainless steel eye bolts for customers who need more dependable performance in demanding environments.
When Should You Use an Eye Bolt?
Lifting and Hoisting Points
Eye bolts can be used as lifting or hoisting points when the correct type, rating, installation method, and load direction are confirmed. Common examples include machinery handling, cargo movement, construction material lifting, and equipment positioning.
Not every eye bolt is suitable for every lifting task. The size, material, thread depth, mounting base, and load angle must match the actual project. Customers should not judge by appearance alone.
Securing and Anchoring
Eye bolts are also widely used for securing and anchoring. They can hold tie-down straps, ropes, tension cables, shade systems, storage fixtures, fencing parts, and outdoor hardware.
An eye bolt with nut and washer is useful when the structure allows through-hole fastening. This method provides stable connection for plates, brackets, frames, and panels. It also makes inspection and replacement easier.
Marine and Outdoor Hardware
Marine and outdoor environments are strong application areas for stainless steel eye bolts. Boats, docks, decks, storage systems, garden structures, and coastal facilities all face moisture and weather exposure.
Wudi Zhibo Metals Co., Ltd. supplies stainless steel eye bolt and nut products for marine, construction, and industrial needs. The company is located near Qingdao Port and Tianjin Port, supporting export service for customers in Europe, America, Southeast Asia, and other markets.
What Makes a Good Eye Bolt?
Suitable Material
A good eye bolt starts with the right material. For outdoor, humid, coastal, industrial, or marine use, stainless steel is usually a better choice. SS316 is especially valuable where saltwater exposure may occur.
Material affects corrosion resistance, appearance, maintenance, and long-term reliability. Stainless steel helps reduce rust problems and supports cleaner installation.
Proper Size
Eye bolts come in different thread sizes, shank lengths, and eye diameters. The correct size should match the mounting hole, nut, washer, cable, hook, shackle, chain, or rope.
ZB Hardware’s long shank 316 stainless steel eye bolts in M6 to M12 sizes give customers several practical options. The right model should always be selected according to project conditions.
Clean Finish and Reliable Inspection
A quality eye bolt should have complete threads, a smooth eye, clean surface, and consistent shape. These details affect installation, appearance, and compatibility with other hardware.
Wudi Zhibo Metals Co., Ltd. follows the philosophy of quality first and honest operation. For customers ordering stainless steel eye bolts, this means the product can become a more reliable part of the whole fastening system.
Conclusion
An eye bolt is a practical fastening component used to create a stable attachment point for ropes, chains, cables, hooks, shackles, and related hardware. By understanding its eye, shank, material, nut and washer, and basic function, customers can choose more suitable products for marine, outdoor, industrial, and construction projects. Wudi Zhibo Metals Co., Ltd. supplies corrosion-resistant stainless steel hardware, including Long Shank 316 Stainless Steel Eye Bolts M6-M12, for customers who need dependable fastening solutions. Contact us to discuss your size requirements, application environment, and product needs.
FAQ
What is an eye bolt used for?
An eye bolt is used to create a fixed attachment point for rope, cable, chain, hook, shackle, or similar hardware. It is commonly used for securing, anchoring, pulling, hanging, and suitable lifting tasks.
Is a stainless steel eye bolt good for outdoor use?
Yes. A stainless steel eye bolt is suitable for outdoor, humid, and marine environments because it offers better corrosion resistance than many ordinary steel fasteners.
What is the benefit of a long shank eye bolt?
A long shank eye bolt provides more installation length. It is useful when the project requires deeper thread engagement or through-hole fastening through thicker materials.
Can an eye bolt be used with a nut and washer?
Yes. Many eye bolts can be installed through a hole and tightened with a nut and washer. This improves surface contact, fastening stability, and installation convenience.
