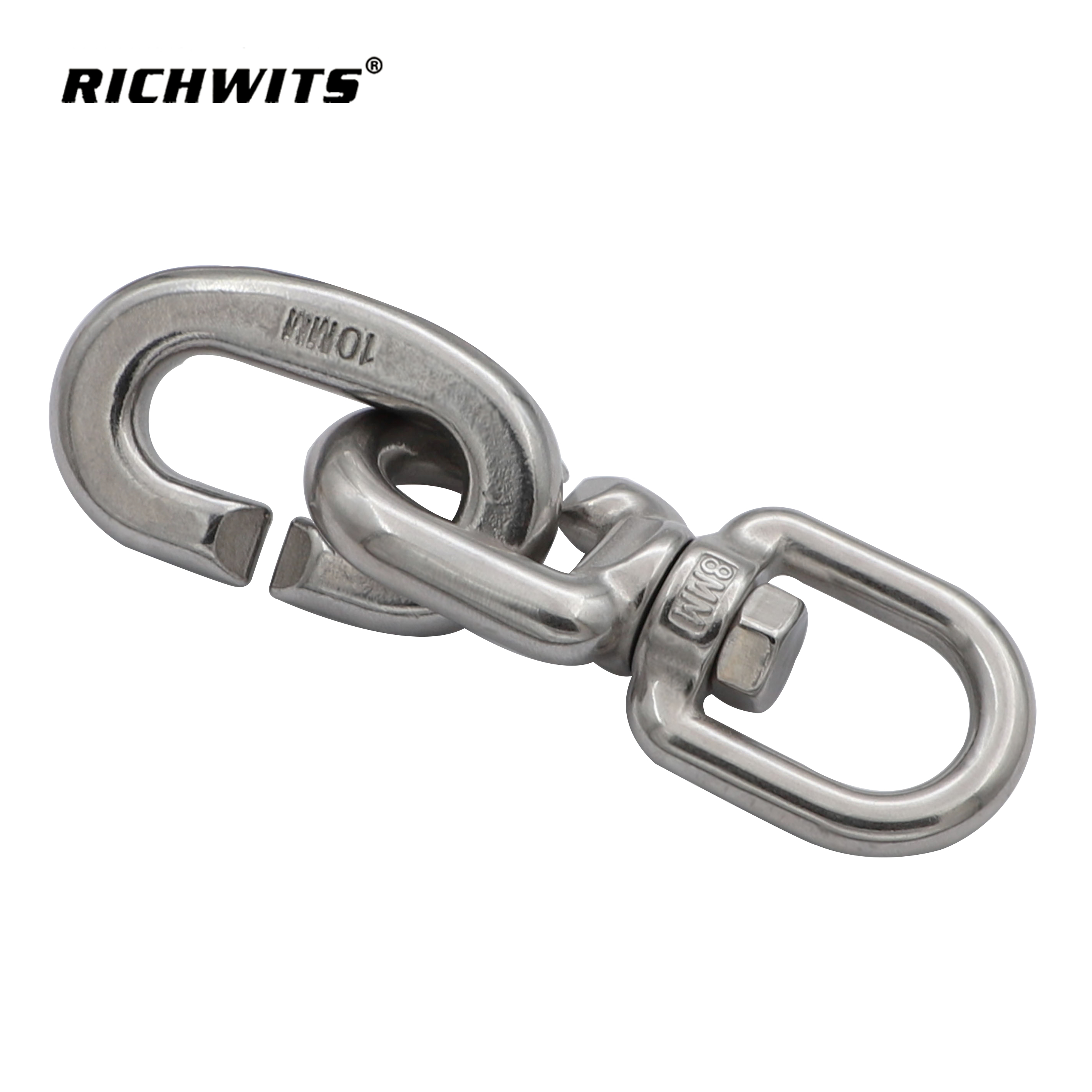

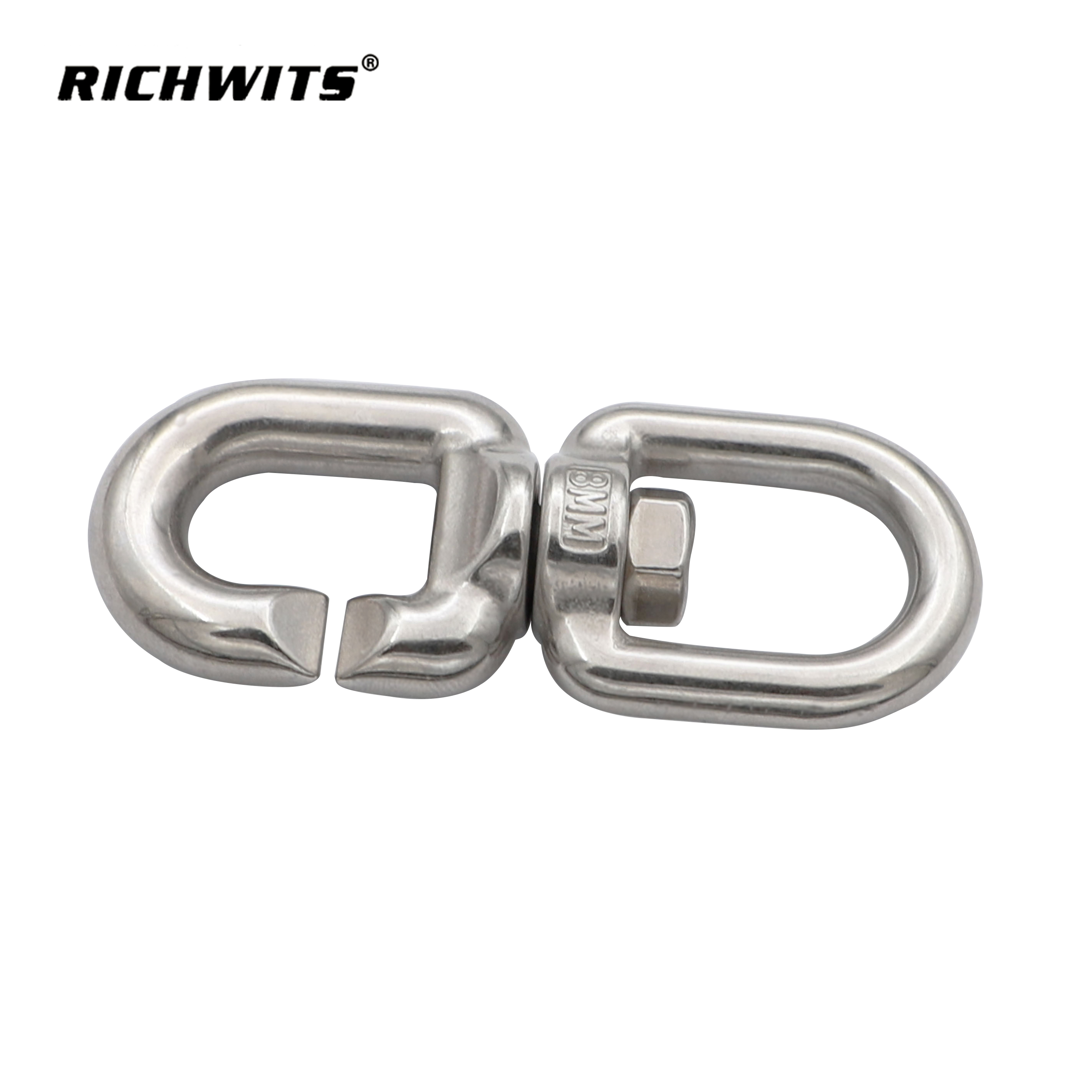

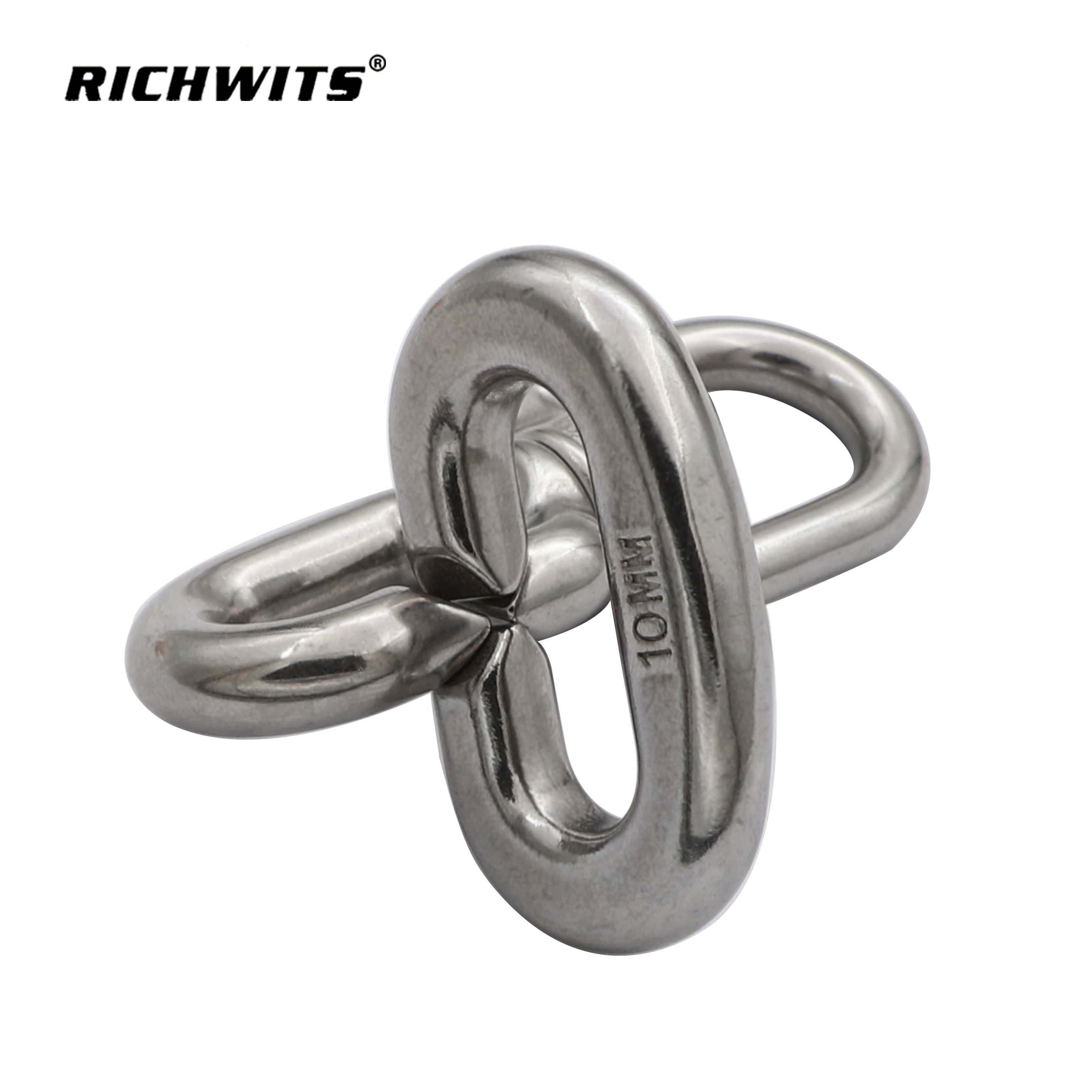

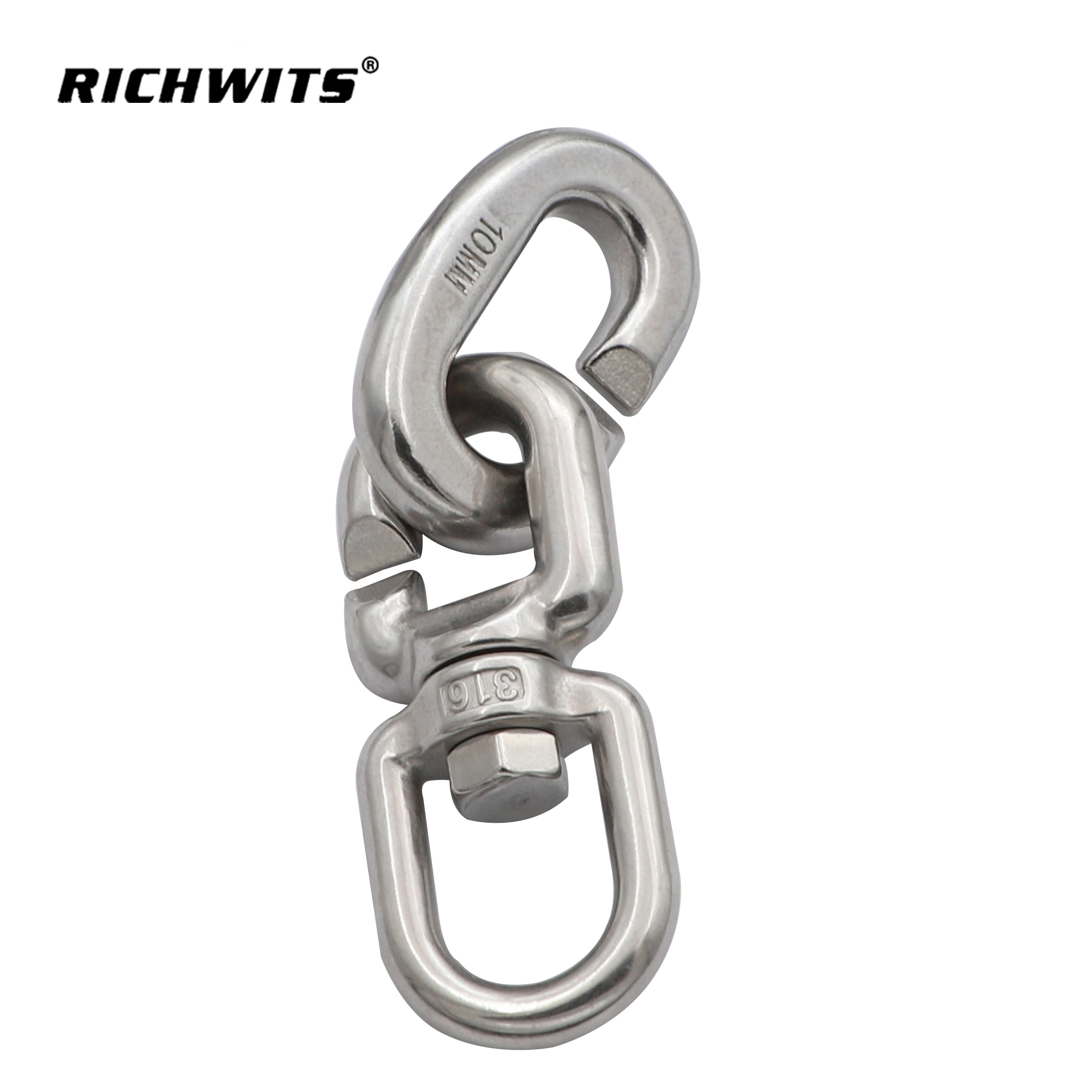

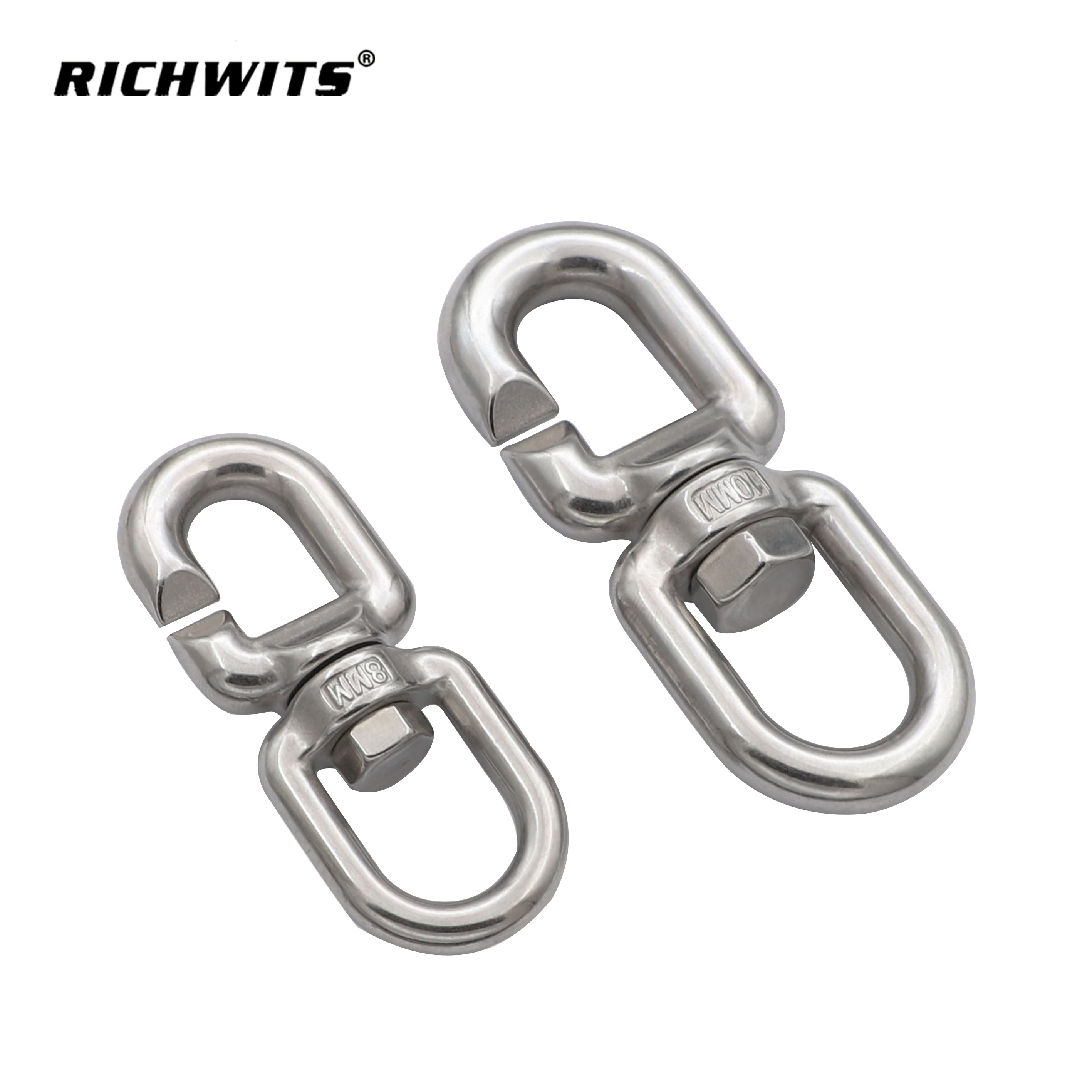

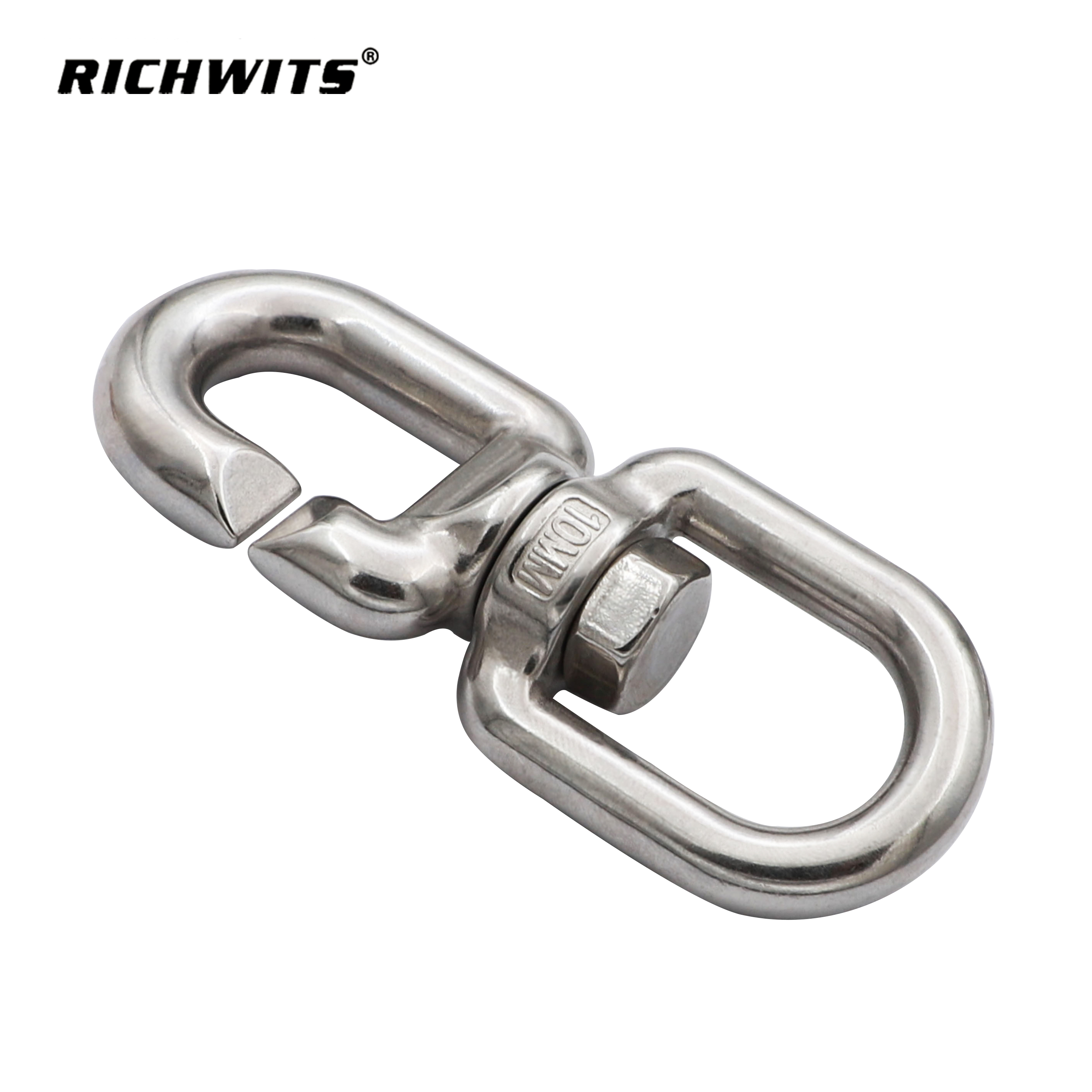

Stainless Steel 316 Marine Rope C Shape Figure 8 Chain Quick Connect Swivel Ring

Product Overview

The RICHWITS Stainless Steel 316 Marine Rope C Shape Figure 8 Chain Quick Connect Swivel Ring is a high-performance marine hardware solution engineered for dynamic rigging and anchoring applications. As a core component in marine and industrial rigging systems, this C-shaped figure 8 swivel ring features precision casting craftsmanship, mirror-polished surface, and a robust quick-connect mechanism—delivering seamless rotation and secure attachment under heavy loads. Constructed from marine-grade 316 stainless steel, it offers exceptional corrosion resistance against saltwater, humidity, and harsh marine environments.

Key Features & Benefits

Precision Casting Craftsmanship

Manufactured via precision investment casting, ensuring a solid, uniform structure without porosity or weak points. The one-piece casting design eliminates welded joints that could fail under stress, providing superior load-bearing capacity and durability compared to assembled or stamped alternatives. Ideal for heavy-duty marine and industrial applications where structural integrity is paramount.

360° Swivel Function for Tangle-Free Operation

The integrated ball-bearing swivel mechanism allows full 360-degree rotation under load, preventing rope, chain, or cable from twisting, kinking, or hockling during use. This feature is critical for mooring systems, lifting operations, and dynamic rigging where line rotation would compromise safety or efficiency. The smooth swivel action reduces wear on connected components, extending overall system lifespan.

Quick-Connect C Shape Figure 8 Design

The innovative C-shaped figure 8 profile features a spring-loaded or screw-lock quick-connect gate (depending on model variant), enabling rapid attachment and detachment of chains, ropes, and shackles without tools. The figure 8 geometry distributes load evenly across both connection points, maintaining balanced stress distribution even under uneven loading. This design eliminates the need for additional connectors, streamlining rigging setups and reducing hardware weight.

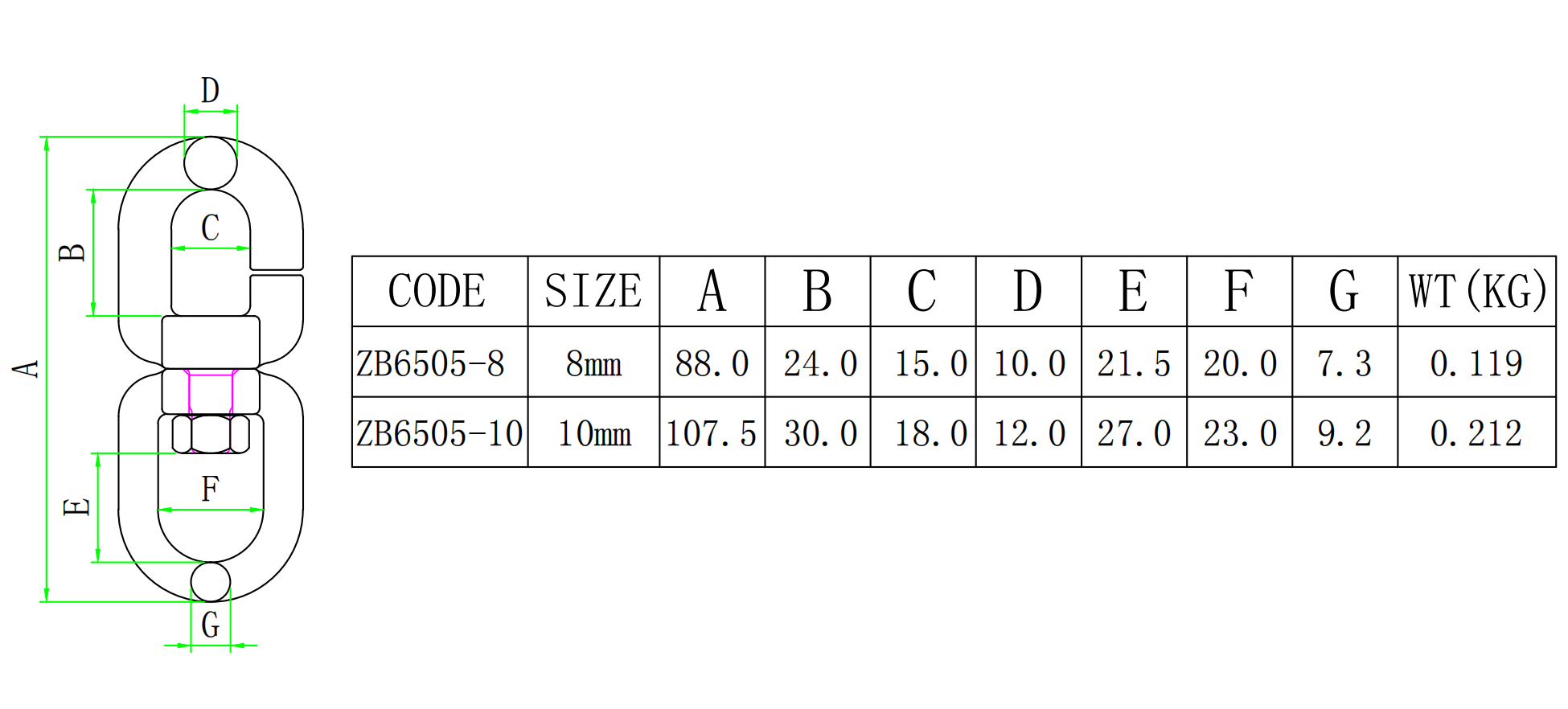

Technical Specifications

Usage Scenarios

Marine Anchoring & Mooring Systems

The marine swivel ring is essential for boat anchoring setups, connecting anchor chains to anchor rodes while allowing free rotation to prevent line twist. In mooring applications, it connects mooring lines to buoys or dock cleats, accommodating tidal movements and vessel swing without inducing torque in the line. The 316 stainless steel construction ensures years of reliable service in saltwater immersion.

Yacht & Sailboat Rigging

Yacht enthusiasts and professional riggers trust this quick connect swivel ring for spinnaker halyards, running backstays, and adjustable sheet systems. The quick-connect C gate allows rapid sail changes during racing, while the swivel prevents halyard twist that could jam in masthead sheaves. The mirror-polished finish complements the aesthetic of luxury vessels.

Commercial Fishing & Aquaculture

Used in commercial fishing gear for connecting nets, lines, and trap systems. The swivel function prevents net rotation that could tangle or damage catch, while the quick-connect feature enables rapid gear changes between sets. In aquaculture operations, it connects mooring grids and feeding systems, with 316 steel resisting biofouling and saltwater corrosion.

Industrial Lifting & Rigging

Beyond marine use, this stainless steel figure 8 ring serves industrial lifting applications where rotation prevention is critical. Use it in crane rigging, hoisting chains, and material handling systems where load rotation could destabilize lifts. The high WLL and 5:1 safety factor meet industrial safety standards.

Why Choose Us

Leading Chinese Marine Hardware Manufacturer

Wudi Zhibo Metal Products Co., Ltd. (RICHWITS) specializes in stainless steel marine hardware and rigging, with decades of export experience to the US, UK, France, Japan, Korea, and Australia. Our strategic location near Qingdao/Tianjin ports ensures convenient, cost-effective global shipping and logistics support.

Superior Craftsmanship & Material Integrity

Precision investment casting combined with CNC machining ensures dimensional accuracy and structural perfection. We use genuine AISI 316 stainless steel with full material certification, verified through spectral analysis. Every swivel ring undergoes 100% load testing and magnetic particle inspection to detect any subsurface defects.

FAQ

What is the advantage of a figure 8 swivel ring over a standard swivel shackle?

The figure 8 design provides two integrated connection points in a single, compact component—eliminating the need for multiple shackles or connectors. The C-shaped quick-connect gate allows tool-free attachment, while the figure 8 geometry ensures balanced load distribution across both loops. Compared to standard swivel shackles, this design reduces overall rigging weight, minimizes connection points (potential failure points), and streamlines assembly time.

How does the 316 stainless steel benefit marine applications specifically?

AISI 316 stainless steel contains 16-18% chromium, 10-14% nickel, and critically 2-3% molybdenum. The molybdenum addition provides exceptional resistance to chloride-induced pitting and crevice corrosion—the primary failure modes in saltwater environments. While 304 stainless steel performs adequately in freshwater or indoor use, 316 is the professional standard for marine immersion, coastal exposure, and chemical processing applications. Our 316 swivel rings maintain structural integrity and appearance even after years of saltwater exposure.
