Safe fastening starts before the first turn of the wrench. An eye bolt is only reliable when it is selected, installed, aligned, and inspected correctly. The same product can perform very differently if the load direction, thread engagement, surface contact, or connected hardware is wrong. Wudi Zhibo Metals Co., Ltd. supplies stainless steel eye bolts, eye bolt and nut sets, and long shank 316 stainless steel eye bolts for marine, outdoor, industrial, and construction-related fastening needs.
Step 1: Select the Right Eye Bolt Before Installation
Match the Eye Bolt to the Load Direction
The first question is how the force will pull on the eye bolt. A straight vertical pull, an angled pull, and a side force do not create the same stress. A non-shouldered eye bolt is generally more suitable for straight, in-line loading and should not be treated as a universal solution for angular loading.
If the application involves side force or angled pulling, the eye bolt type, mounting surface, and working load should be checked more carefully. For demanding work, the product should match the actual load direction instead of being selected only by size or appearance.
Match the Material to the Environment
Material choice directly affects service life. For indoor dry areas, corrosion pressure may be low. For marine, outdoor, humid, coastal, or industrial environments, stainless steel is usually a better choice.
SS316 stainless steel is especially useful near saltwater because it offers stronger resistance to chloride exposure. For boat hardware, dock fixing, outdoor rigging, and coastal equipment, Wudi Zhibo Metals Co., Ltd. provides stainless steel eye bolts designed to reduce rust concerns and support longer-term use.
Match the Size to the Connection Hardware
The eye bolt must match the parts around it. Thread size, shank length, eye inner diameter, washer, nut, shackle, chain, hook, cable, and rope size all affect installation.
If the eye opening is too small, the connected hardware may not fit freely. If the shank is too short, thread engagement may be weak. If the nut or washer does not match the thread, the connection may loosen or fail. For this reason, long shank eye bolts and eye bolt with nut sets are useful when customers need more stable assembly.
Step 2: Inspect the Eye Bolt and Mounting Point
Checkpoint
What to Look For
Risk Reduced
Threads
Clean, complete, not worn
Poor engagement or loosening
Eye shape
No bending, cracks, or elongation
Sudden failure under load
Shoulder or washer contact
Full seating against surface
Bending stress and instability
Mounting hole
Correct size and depth
Weak fastening
Connected hardware
Proper fit without forcing
Side loading or overload
Check Threads and Surface Cleanliness
Before installation, the thread should be clean, complete, and free from damage. Dirt, burrs, worn threads, or mismatched holes can reduce fastening strength. The mounting hole should also be clean and correctly sized.
For stainless steel eye bolts, a clean surface also helps installation feel smoother and reduces the chance of thread damage during tightening. Wudi Zhibo Metals Co., Ltd. uses precision processing and surface treatment to support better fit, cleaner appearance, and more reliable assembly.
Check the Eye and Shank
The eye and shank should be inspected before use. If the eye is bent, cracked, stretched, or visibly deformed, the product should not be used. If the shank is bent or the thread is damaged, replacement is the correct decision.
An eye bolt is a small part, but it often works as a key connection point. Any visible defect can affect safety. Inspection should be treated as a normal step, not an optional detail.
Step 3: Install the Eye Bolt Correctly
Seat the Eye Bolt Fully
An eye bolt should be fully seated against the mounting surface. If the product has a shoulder, the shoulder should sit firmly against the surface. If the eye bolt is only partly threaded in, the connection may not have enough engagement.
The mounting surface should also be strong enough for the task. A strong eye bolt cannot perform properly if the base material is weak, thin, cracked, or unsuitable for the load.
Use Washer and Nut Correctly
For through-hole installation, the eye bolt passes through the mounting material and is tightened with a nut and washer. The washer helps improve surface contact, while the nut secures the assembly from the opposite side.
The nut should be tightened firmly, but the part should not be damaged by excessive force. A matched nut and washer set helps avoid thread mismatch and uneven pressure. Wudi Zhibo Metals Co., Ltd. offers eye bolt and nut products for customers who need convenient stainless steel fastening sets.
Keep the Pull in Line with the Eye
The load should pull in the correct direction. Ideally, force should align with the plane of the eye and the intended load path. Pulling across the front or back of the loop can create side stress and reduce stability.
This is especially important for lifting, pulling, or securing applications. Correct alignment helps the eye bolt work as designed and reduces unnecessary bending force.
Step 4: Connect the Load Properly
Use Compatible Shackles, Hooks, Chains, or Cables
Connected hardware should fit freely through or onto the eye. Oversized hooks, forced shackles, or rough chain contact can create uneven stress. If the connected part does not move or sit correctly, it may pull against the eye in the wrong direction.
The eye diameter should be checked before installation. Matching the eye bolt with the right shackle, hook, cable, or rope improves both safety and service life.
Avoid One Eye Bolt for Rotating Loads
Uncontrolled rotation can change the load direction. If a load rotates freely, the eye bolt may face twisting or side force that was not considered during installation.
For rotating or moving loads, the full connection system should be reviewed. The eye bolt alone should not be expected to solve movement problems caused by poor load control.
Do Not Run One Sling Through Two Eye Bolts
Running one sling through two eye bolts can change the load angle and increase stress on both connection points. It may also create uneven force if the sling shifts during use.
For safer use, each connection point should be planned clearly. The load path should be direct, balanced, and suitable for the selected hardware.
Step 5: Avoid Common Eye Bolt Mistakes
Do Not Use Damaged Eye Bolts
A damaged eye bolt should be replaced, not repaired for continued use. Bending, cracking, stretched eyes, worn threads, or visible corrosion are warning signs.
Using damaged hardware may save time at first, but it increases the risk of failure. For marine and outdoor projects, regular inspection is especially important because moisture and salt exposure can accelerate wear.
Do Not Paint Over the Eye Bolt
Paint may hide cracks, corrosion, thread damage, or surface defects. It may also interfere with proper inspection. Stainless steel eye bolts already provide a clean appearance, so painting is usually unnecessary for many visible installations.
For boat fittings, outdoor structures, and industrial equipment, a stainless steel surface is often preferred because it is clean, durable, and easier to inspect.
Do Not Exceed Rated Capacity
The safe working ability of an eye bolt depends on product rating, material, load angle, thread engagement, installation method, and connected hardware. Exceeding the suitable load can cause bending, loosening, or failure.
Customers should not judge capacity by product size alone. A correct installation with suitable hardware is always necessary.
Do Not Use the Wrong Type for Angular Loads
Non-shouldered eye bolts are not suitable for every angled load. If the force direction is not straight, the product type should be reviewed. Shoulder designs, stronger mounting structures, or different rigging methods may be needed.
The safest approach is to select the eye bolt according to the actual force direction and installation condition.
Why Product Quality Matters in Safe Use
Material Consistency
Material quality affects corrosion resistance, strength, and long-term appearance. Stainless steel grades should match the working environment. SS316 is valuable for marine and coastal use, while other stainless steel options may suit general outdoor and industrial applications.
Wudi Zhibo Metals Co., Ltd. produces stainless steel products for marine transportation, shipping, petrochemical, food industry, power, and other fields, supporting customers who need durable fastening hardware.
Dimensional Accuracy
Accurate dimensions make installation easier. Thread size, shank length, eye diameter, nut fit, washer fit, and hole compatibility all affect how well the eye bolt works.
If dimensions are inconsistent, assembly becomes slower and less reliable. Precision processing helps customers achieve cleaner fastening and better hardware matching.
Quality Inspection
Eye bolts should have complete threads, smooth eyes, clean surfaces, and consistent shape. Quality inspection helps reduce defects before shipment and supports safer use in real projects.
Wudi Zhibo Metals Co., Ltd. follows the principle of quality first and honest operation, combining precision casting, processing, and surface treatment to support reliable stainless steel hardware supply.
Conclusion

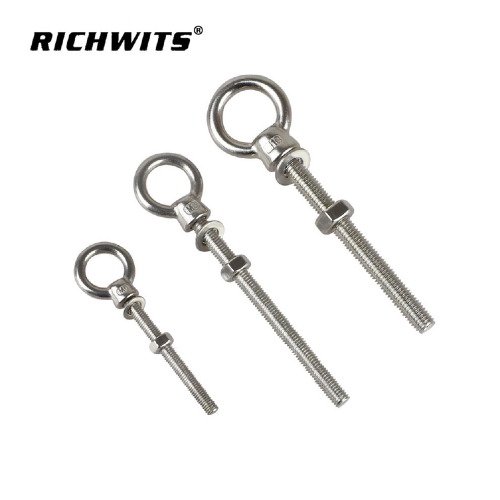

Safe eye bolt use depends on correct selection, careful inspection, full seating, proper load alignment, and compatible connected hardware. The product should match the environment, load direction, mounting surface, and installation method before use. Wudi Zhibo Metals Co., Ltd. supplies stainless steel eye bolts and eye bolt with nut products for marine, outdoor, industrial, and construction fastening needs, including Long Shank 316 Stainless Steel Eye Bolts M6-M12 for customers who require corrosion-resistant and stable connection solutions. Contact us to discuss your size requirements, application environment, and stainless steel hardware needs.
FAQ
How do you use an eye bolt safely?
Use an eye bolt safely by selecting the correct type, checking the load direction, inspecting threads and surfaces, seating it fully, and connecting only compatible hardware.
What should be checked before eye bolt installation?
Before eye bolt installation, check the threads, eye shape, shank condition, mounting hole, washer contact, nut fit, and connected hardware size.
Can stainless steel eye bolts be used outdoors?
Yes. Stainless steel eye bolts are suitable for outdoor, humid, and marine environments. SS316 stainless steel is especially useful for saltwater and coastal applications.
Why is load direction important for an eye bolt?
Load direction affects stress on the eye and shank. A wrong pulling angle can create bending force, reduce stability, and increase the risk of hardware failure.
