Different projects may use similar-looking hardware, but each eye bolt type is designed for a different fastening method, load direction, base material, and working environment. Some eye bolts are better for straight pulling, some support through-hole installation, and some are made for stainless steel marine hardware. Wudi Zhibo Metals Co., Ltd. produces stainless steel eye bolts, eye bolt and nut products, long shank eye bolts, and related rigging hardware for marine, outdoor, industrial, and construction applications.
Eye Bolt Types by Structure
Regular Eye Bolts
Regular eye bolts, also called plain eye bolts, have a looped head and a threaded shank. They are commonly used when the force is mainly vertical or in line with the shank. This type is suitable for general securing, hanging, and connection tasks when the load direction is simple and controlled.
A regular eye bolt should not be treated as universal lifting hardware. If the load pulls sharply from the side, the shank may face bending stress. For this reason, customers should consider the actual force direction before selecting this type. Regular stainless steel eye bolts are useful for outdoor structures, cable fixing, light rigging, and general hardware applications where corrosion resistance is important.
Shoulder Eye Bolts
A shoulder eye bolt has an additional shoulder section between the eye and the threaded shank. This shoulder sits against the mounting surface when installed correctly. The design helps improve support when the eye bolt faces certain angled loads.
The shoulder does not make the product suitable for every direction or every load. It only works properly when the shoulder is fully seated against the surface and the product is used within suitable limits. Shoulder eye bolts are often considered for machinery, equipment, and metal structures where load direction may not be completely straight.
Long Shank Eye Bolts
Long shank eye bolts have a longer threaded section than standard designs. This gives more installation length and can be useful for thicker plates, reinforced surfaces, or through-hole fastening with a nut and washer.
For marine and outdoor hardware, long shank stainless steel eye bolts are especially practical. They provide more flexibility in assembly while maintaining corrosion resistance. ZB Hardware’s Long Shank 316 Stainless Steel Eye Bolts M6-M12 are suitable for customers who need stable fastening in boat hardware, outdoor equipment, metal frames, and industrial structures.
Eye Bolt Types by Installation Method
Type
Installation Method
Common Use
Content Angle for ZB Hardware
Nut eye bolt
Passes through material and tightens with nut
Plates, frames, brackets
Eye bolt with nut category
Machinery eye bolt
Screws into tapped hole
Equipment lifting points
Industrial hardware use
Screw eye
Screws into wood or light anchors
Light hanging and cable support
Separate from heavy eye bolt use
Long shank eye bolt
Deeper thread or through-hole installation
Marine and outdoor fixing
SS316 long shank product
Eye nut
Threads onto a stud or bolt
Rigging connection point
Related marine hardware category

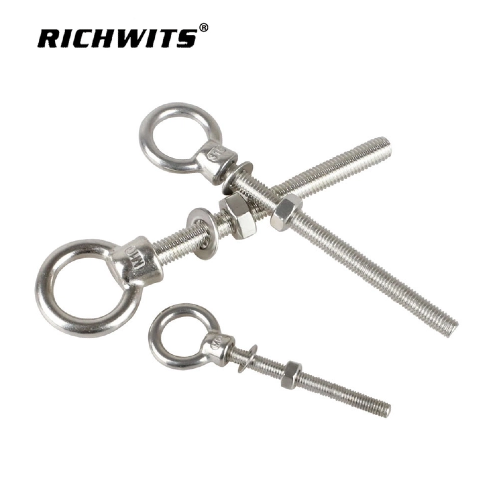

Nut Eye Bolts
A nut eye bolt passes through the mounting material and is tightened with a nut, usually with a washer. This method is common for plates, brackets, frames, and other structures where the back side is accessible.
The nut and washer help improve surface contact and fastening stability. This type is useful when customers want a secure mechanical connection instead of a simple screw-in installation. Wudi Zhibo Metals Co., Ltd. supplies eye bolt and nut products for marine, construction, outdoor, and industrial hardware needs.
Machinery Eye Bolts
Machinery eye bolts are usually installed into tapped holes on equipment or engineered parts. They are often used as lifting or positioning points on machines, motors, tools, and metal assemblies.
For this type, thread match and installation depth are critical. The eye bolt must fit the tapped hole correctly, and the mounting part must be strong enough for the intended task. Stainless steel machinery-related eye bolts are useful in industrial environments where durability, clean surface finish, and corrosion resistance are required.
Eye Nuts
An eye nut is related to eye bolt hardware, but it is not the same product. Instead of having a threaded shank, an eye nut has an internal thread and is installed onto a stud, bolt, or threaded rod.
Eye nuts are commonly used in rigging and connection systems. They can work with other stainless steel hardware in marine and industrial applications. For customers building a complete fastening system, eye nuts and eye bolts may both be needed, but their installation methods are different.
Eye Bolt Types by Material
Stainless Steel Eye Bolts
Stainless steel eye bolts are widely used where corrosion resistance and clean appearance matter. 304 stainless steel is suitable for many general outdoor and industrial applications. 316 stainless steel offers better resistance in saltwater, coastal, and marine environments.
For boat hardware, dock fittings, outdoor structures, and humid workshops, stainless steel is often the preferred material. Wudi Zhibo Metals Co., Ltd. produces stainless steel hardware using precision casting, precision processing, and surface treatment technologies, helping customers get durable and clean-looking fastening products.
Galvanized Eye Bolts
Galvanized eye bolts are coated with zinc to improve corrosion resistance. They are often used for general outdoor projects, construction tasks, and utility applications.
However, galvanized hardware may not be the best option for long-term saltwater exposure. The coating can wear over time, especially in harsh marine environments. For customers who need better corrosion resistance near the sea, stainless steel eye bolts, especially SS316, are usually a stronger long-term choice.
Carbon Steel Eye Bolts
Carbon steel eye bolts are often selected for strength and industrial use. They may be used in factories, warehouses, machinery systems, and heavy-duty environments.
The limitation is corrosion. Carbon steel usually needs coating, painting, or other protection if it is used outdoors or in wet environments. For exposed installations where appearance and rust resistance matter, stainless steel can reduce maintenance concerns.
Eye Bolt Types by Application Environment
Marine Eye Bolts
Marine eye bolts are used on boats, docks, decks, offshore equipment, and coastal structures. These applications face saltwater, humidity, rain, and constant outdoor exposure. SS316 stainless steel is a suitable material because it offers stronger corrosion resistance in chloride-rich environments.
ZB Hardware’s SS316 long shank eye bolts are relevant for marine users who need durable hardware for deck fixing, cable attachment, rope connection, and boat maintenance.
Industrial Eye Bolts
Industrial eye bolts are used in factories, warehouses, equipment frames, machinery maintenance, and material handling systems. These applications often require accurate threads, stable connection, and dependable surface quality.
The selected type depends on the mounting method. A machinery eye bolt may be used in a tapped hole, while a nut eye bolt may be better for through-hole assembly. Stainless steel is useful when the working area is humid, washed regularly, or exposed to chemicals.
Outdoor Eye Bolts
Outdoor eye bolts are used for shade sails, garden structures, storage systems, fencing parts, cable supports, and architectural hardware. These applications need weather resistance and clean appearance.
Stainless steel eye bolts are suitable because they resist rust better than many untreated fasteners. They also match modern outdoor metal parts and help the finished project look cleaner.
How to Narrow Down the Right Type
Start with the Load Direction
The first step is to understand how force will act on the eye bolt. A straight vertical pull, angled pull, side pull, or rotating force may require different designs. Plain eye bolts are not suitable for every direction. Shoulder eye bolts, machinery eye bolts, or other rated solutions may be needed for more demanding use.
Check the Mounting Surface
The mounting surface decides the installation method. Metal plates may use through-hole eye bolts with nuts and washers. Tapped holes may use machinery eye bolts. Wood structures may use screw eyes for lighter tasks. Brackets, frames, and reinforced surfaces may require longer shanks or stronger fastening sets.
Match the Environment
The environment affects material choice. Indoor dry areas may not require high corrosion resistance. Outdoor, humid, coastal, marine, and chemical environments usually need stainless steel. SS316 is especially suitable for saltwater exposure and marine hardware.
Confirm Size and Accessory Fit
Thread size, shank length, eye diameter, nut, washer, shackle, chain, hook, cable, and rope size should all match the actual application. If the eye opening is too small, the connecting hardware may not fit. If the shank is too short, installation may not be stable enough.
Wudi Zhibo Metals Co., Ltd. offers stainless steel eye bolt products in practical sizes and designs, helping customers match different fastening needs more efficiently.
Conclusion
Eye bolt types should be selected by structure, installation method, material, and working environment. Regular eye bolts, shoulder eye bolts, nut eye bolts, machinery eye bolts, long shank eye bolts, screw eyes, and eye nuts all serve different purposes, so the right choice depends on how and where the hardware will be used. Wudi Zhibo Metals Co., Ltd. supplies stainless steel eye bolt and eye bolt with nut options for marine, outdoor, and industrial hardware needs, including Long Shank 316 Stainless Steel Eye Bolts M6-M12 for customers who need corrosion-resistant fastening solutions. Contact us to discuss your size, material, and application requirements.
FAQ
What are the main eye bolt types?
Common eye bolt types include regular eye bolts, shoulder eye bolts, nut eye bolts, machinery eye bolts, long shank eye bolts, screw eyes, and eye nuts. Each type has a different structure and installation method.
What is a long shank eye bolt used for?
A long shank eye bolt is used when more installation length is needed. It can be suitable for thicker plates, through-hole mounting, marine hardware, outdoor structures, and equipment frames.
Are stainless steel eye bolts better for marine use?
Yes. Stainless steel eye bolts, especially SS316 types, are better for marine and coastal environments because they offer stronger corrosion resistance against saltwater and humidity.
Is a screw eye the same as an eye bolt?
No. A screw eye usually has a pointed screw thread for wood or light-duty anchors. An eye bolt usually has a machine-threaded or bolt-style shank for stronger fastening applications.
