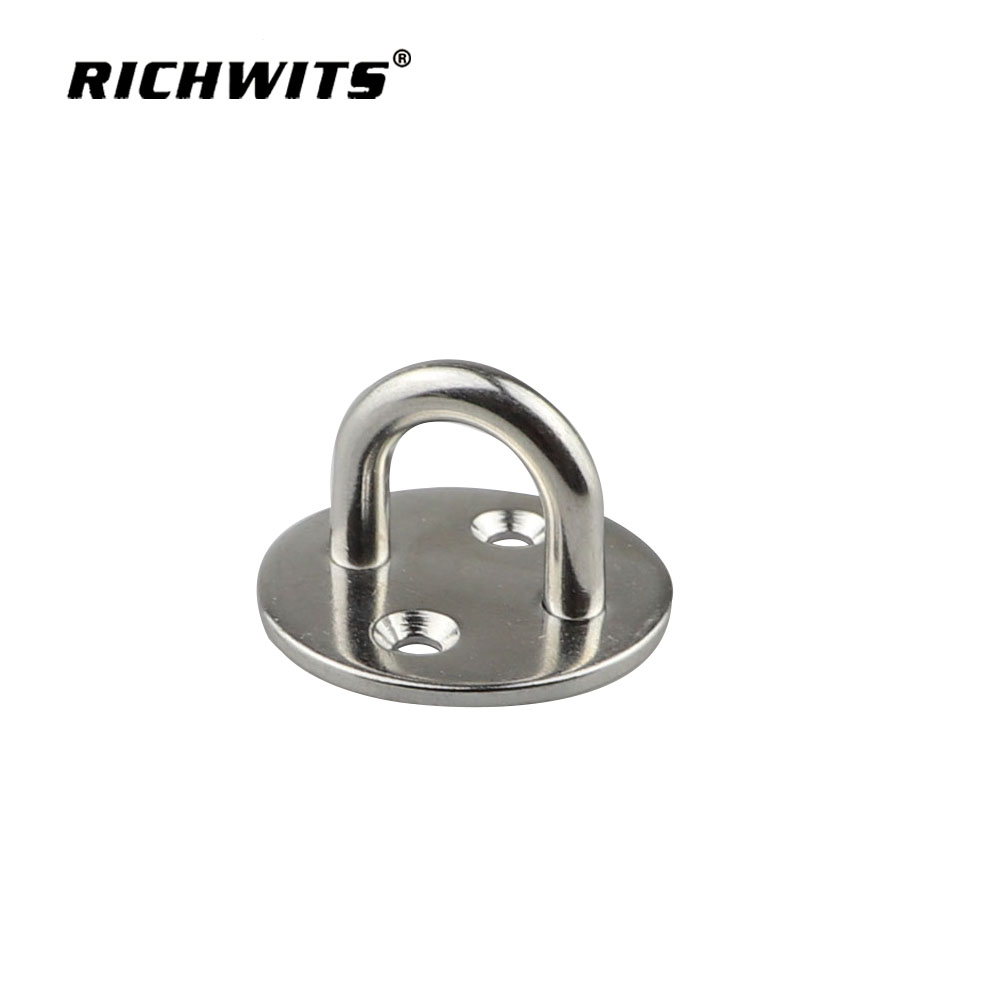

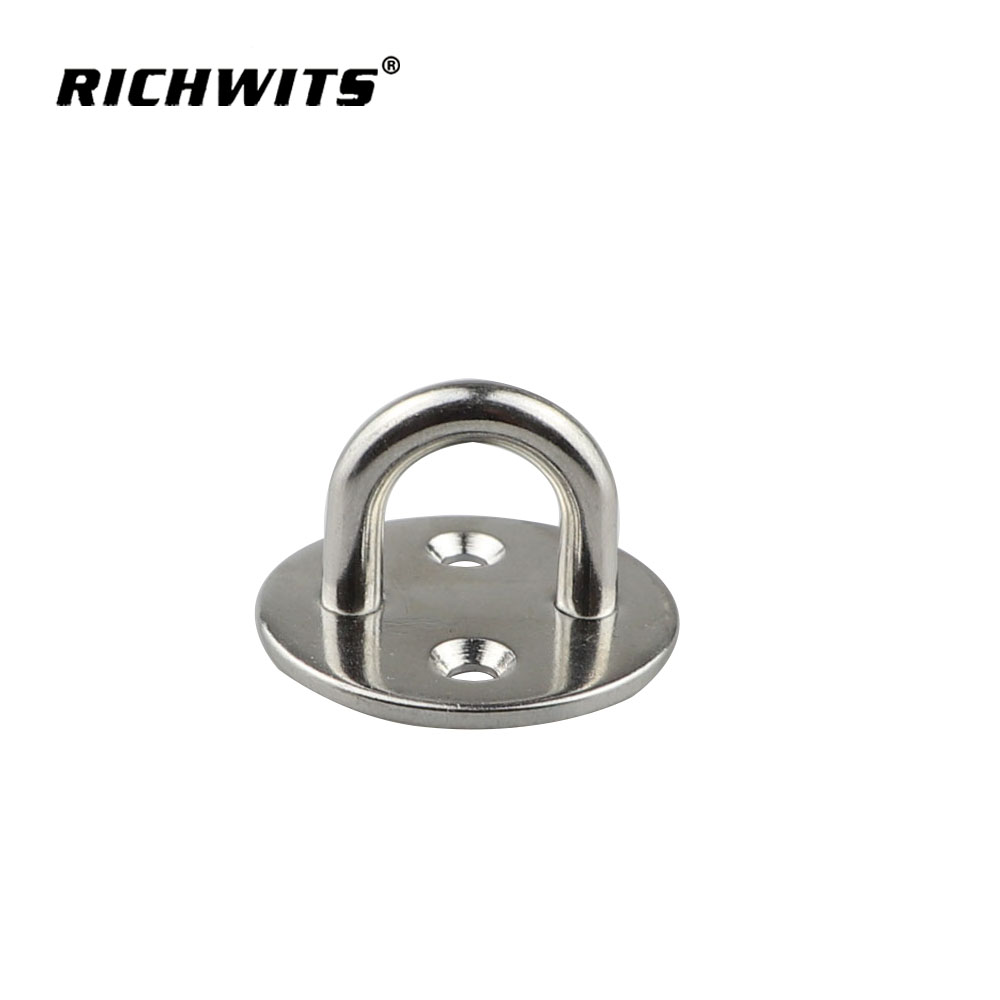

Stainless Steel Pad Eye Plate Round Eye Pad Plate

1. Product Overview

The RICHWITS Stainless Steel Pad Eye Plate is a highly dependable, multi-purpose mounting foundation engineered for absolute security in demanding environments. Grasping this round eye pad plate reveals its substantial weight and the cool, solid feel of premium austenitic steel. Manufactured from verified 304 or 316 stainless steel, it delivers exceptional structural integrity, resisting severe rust and physical wear even when exposed to harsh saltwater spray or continuous outdoor elements. Through precision stamping and advanced forming techniques, the base plate achieves perfect flatness for flush mounting, ensuring maximum contact area with the installation surface. This foundational hardware piece is indispensable for marine rigging, architectural tensioning, and secure home suspension systems, providing peace of mind where reliable load-bearing is non-negotiable. Every unit undergoes strict visual and dimensional checks to guarantee consistent performance across large-scale deployments.

2. Key Features & Advantages

• ✅ High-strength 304 / 316 stainless steel – Delivers excellent anti-corrosion properties for marine and outdoor use. We conduct rigorous salt spray corrosion testing to verify its endurance in chloride-rich atmospheres, ensuring long-lasting structural stability.

• ✅ Wire-drawing finish – Run your fingers across the surface to feel the smooth, brushed texture. This glossy surface is completely free from sharp burrs and resists fingerprints, offering both aesthetic appeal and safe handling during rapid installations.

• ✅ Full welding structure – Utilizing a full penetration welding process, the firmly welded base and ring ensure no loosening or breakage. This high-strength bond eliminates the hidden dangers of structural fatigue under continuous, heavy stress.

• ✅ Wide applications – Highly adaptable and ideal for boats, yachts, ceilings, gym swings, and hammocks. Its versatile geometry allows it to integrate naturally into both heavy industrial settings and refined architectural spaces.

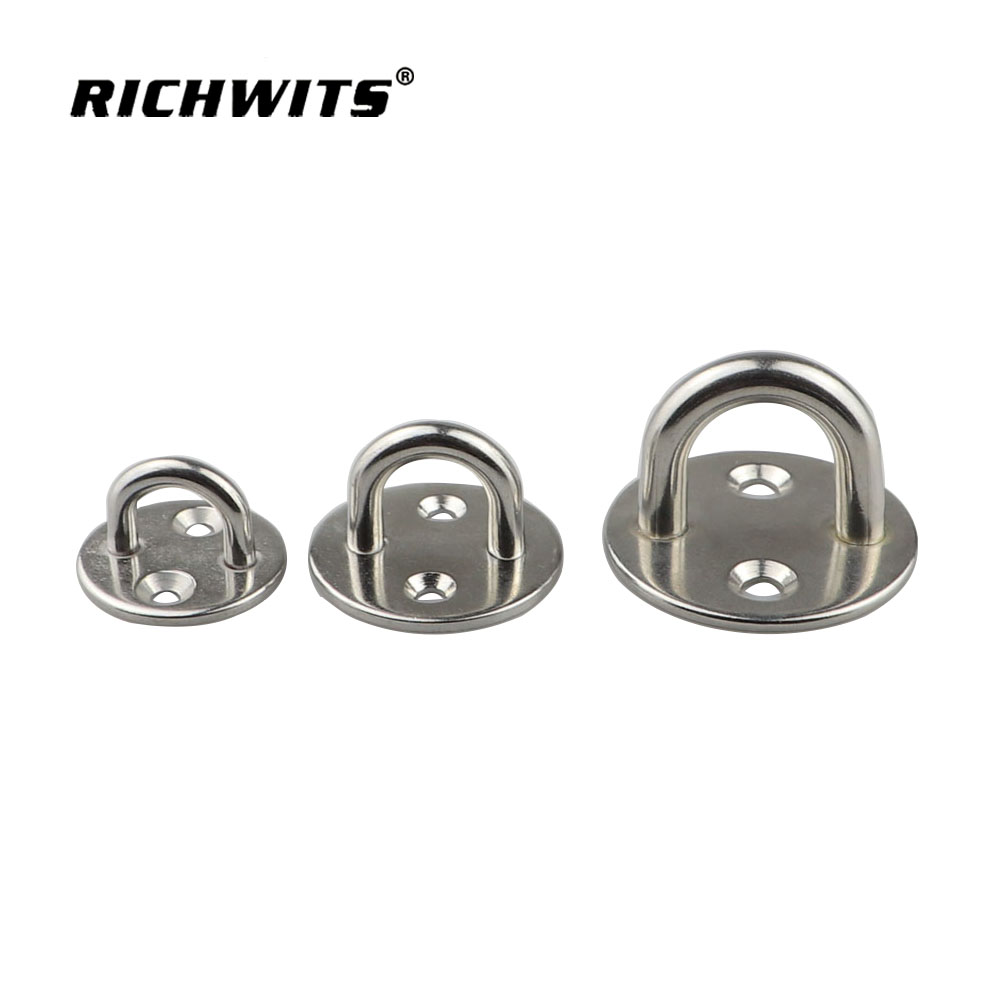

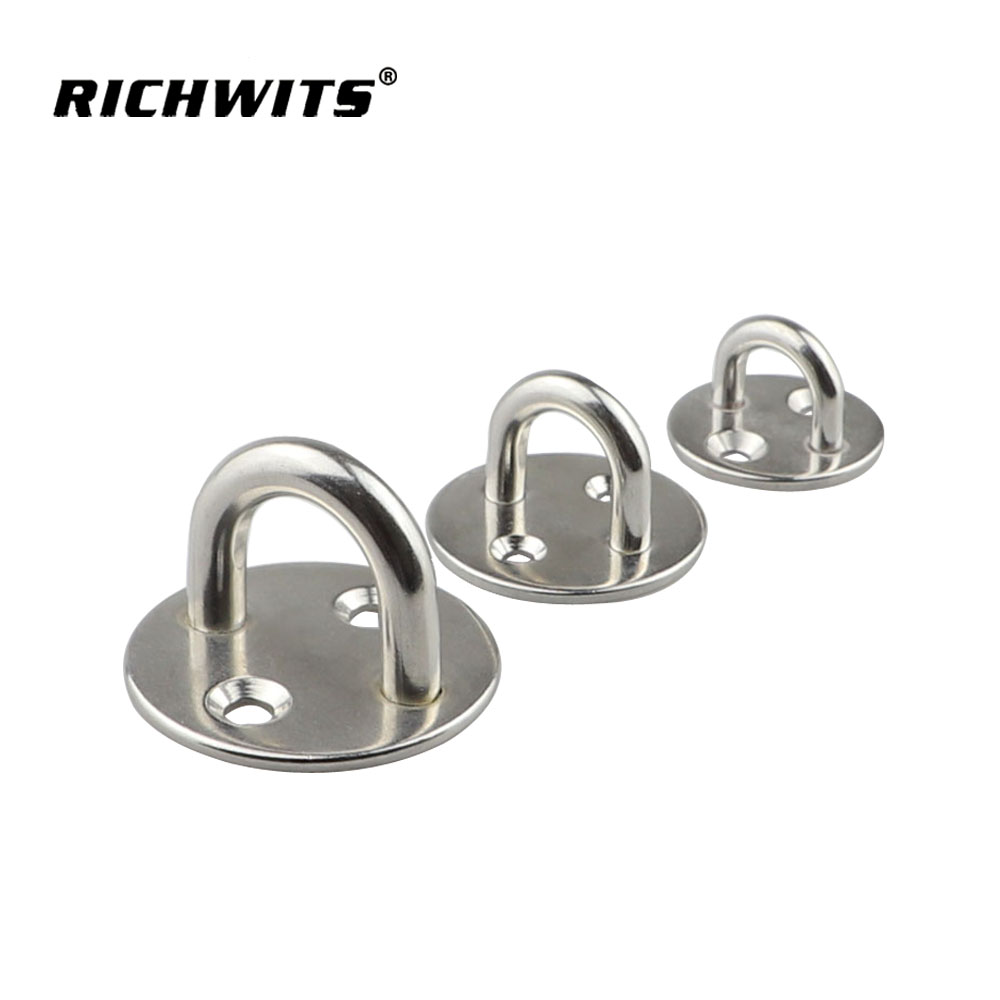

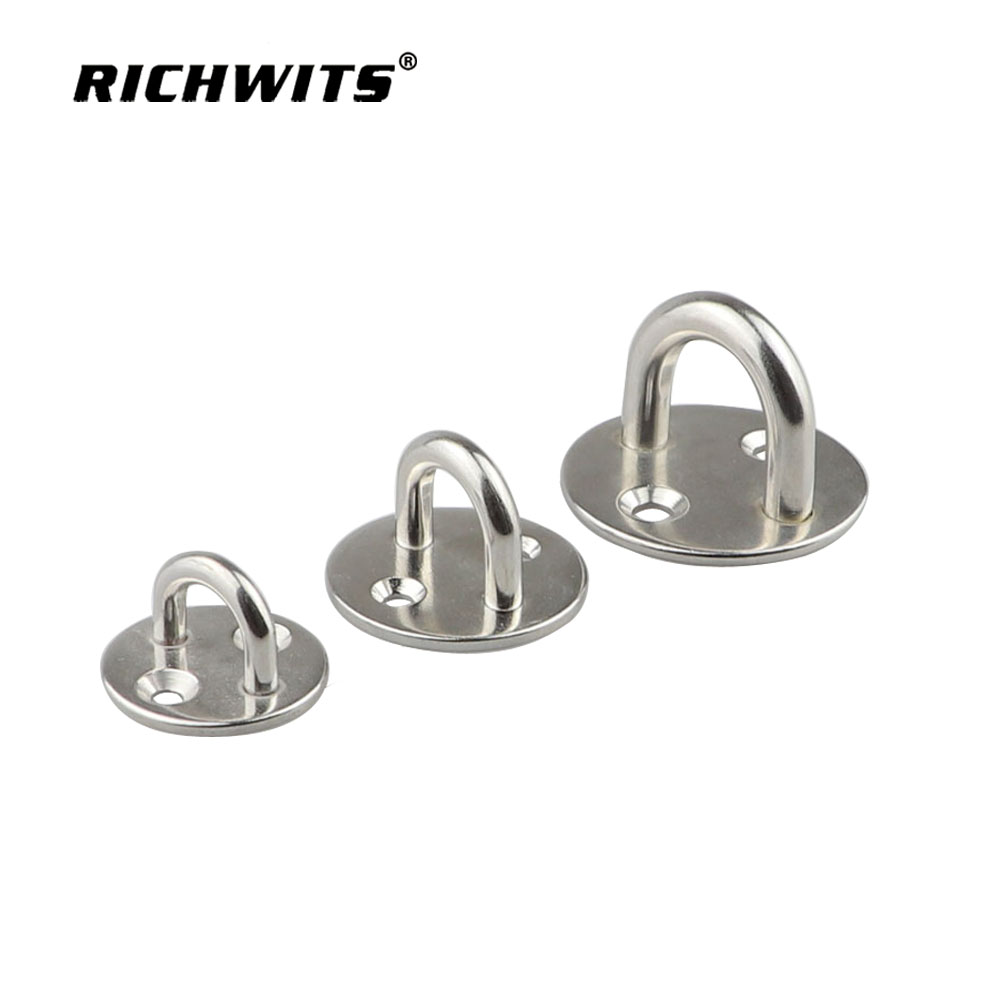

• ✅ Available sizes – Precisely manufactured in 5 mm, 6 mm, and 8 mm plates to fit different load requirements, allowing project managers to select the exact specification needed for their structural demands.

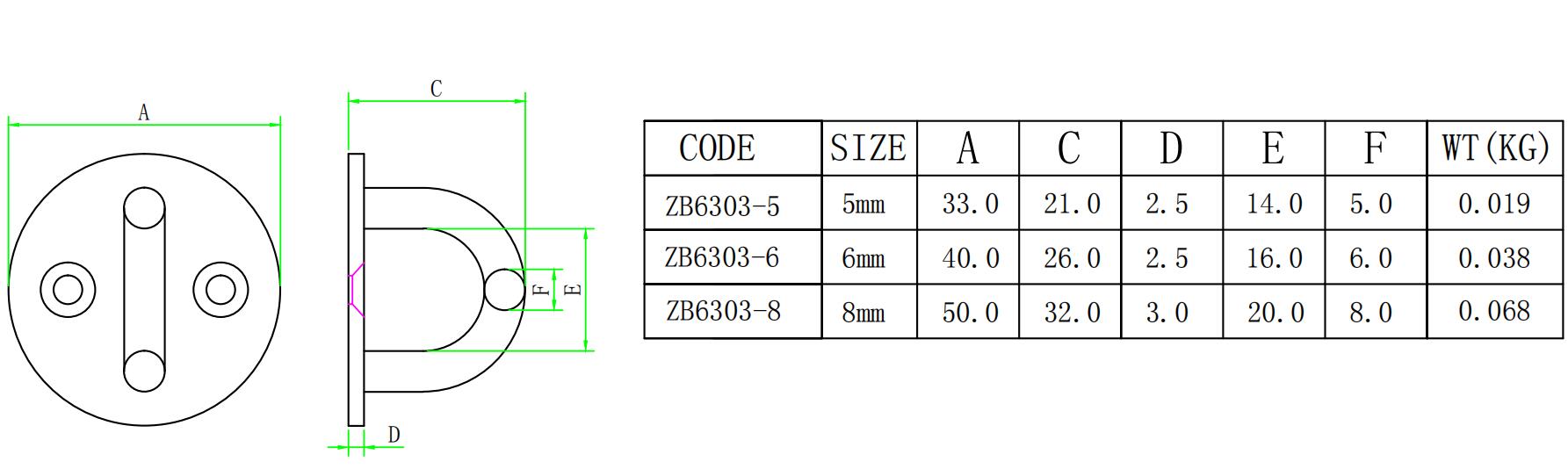

3. Specifications & Dimensions

To support precise engineering and structural planning, we provide comprehensive dimensional data and mechanical performance metrics. The safety of any suspension or rigging system relies on accurate load calculations, which is why our pad eye plates undergo strict destructive tensile tests.

Mechanical Properties & Safety Load Data

Our engineering data supports secure and reliable procurement decisions. Depending on the chosen specification (5 mm, 6 mm, or 8 mm), these plates deliver a Safe Working Load (SWL) ranging from 200 kg up to 500 kg under normal installation conditions. Detailed Breaking Load (BL) reports are maintained for each production batch, ensuring that every mounting point meets the stringent safety thresholds required for overhead lifting and heavy architectural tensioning.

4. Material & Surface Finish

The tactile and visual qualities of our hardware are a direct result of uncompromising material selection and refined surface processing.

• Material: 304 and 316 austenitic stainless steel. Type 316 provides superior corrosion resistance in marine and chloride environments. We back this up by providing SGS material composition detection reports, ensuring full compliance with international import standards.

• Surface Treatment: Wire-drawing finish as standard; mirror polish available upon request. The standard brushed texture diffuses light elegantly while hiding micro-scratches from daily wear, whereas the optional mirror polish delivers a brilliant, reflective gleam ideal for luxury yachts.

• Color: Natural silver stainless steel tone. This unplated, authentic metallic hue guarantees that there is no surface coating to chip, flake, or degrade over decades of intense environmental exposure.

5. Application Scenarios

The robust geometry and verified load capacities of this round eye pad plate make it a universal anchor point across diverse sectors.

• Marine & Boat Hardware: Used as anchor points for rope or deck fittings. When exposed to the salty ocean breeze and constant moisture, the 316 variant prevents oxidation, securing sails, fenders, and rigging lines with unwavering reliability.

• Outdoor Suspension Systems: For yoga swings, aerial hammocks, and gym rings. In intense training environments, the full penetration welding ensures the ring remains completely silent and structurally sound, even under dynamic, swinging human weight.

• Home & Industrial Use: Ceiling hook mounts for hanging plants or lighting. The flat, precision-stamped base sits perfectly flush against concrete or timber, distributing weight evenly to prevent localized structural stress.

• Architectural Support: Cable tensioning, awnings, safety nets and decorative rigging. It acts as a discreet yet incredibly strong node in complex architectural webs, maintaining fabric tension without detracting from the building's visual design.

6. Installation Guidelines

Proper installation is critical to achieving the maximum 200 kg to 500 kg load capacity. Following these steps ensures the hardware performs exactly as engineered.

1. Choose the appropriate size based on load requirements. Assess the dynamic and static forces your project will generate before selecting the 5 mm, 6 mm, or 8 mm specification.

2. Drill mounting holes according to the plate’s hole diameter. Ensure the drill bit matches the anchor size perfectly to prevent lateral play once the fasteners are inserted.

3. Use stainless steel screws or expansion bolts for maximum strength. Mixing metals can cause galvanic corrosion; always pair our plates with fasteners of the same austenitic grade.

4. Ensure surface flatness and tighten uniformly. Drive the screws in a cross-pattern to seat the plate perfectly flat, eliminating gaps that could cause the base to warp under heavy tension.

5. For marine applications, apply sealant to prevent moisture ingress. A marine-grade silicone beneath the base plate will stop saltwater from seeping into the deck core, protecting the vessel's structural integrity.

7. FAQ – Common Questions

Q1: Which material should I choose – 304 or 316 stainless steel?
→ Choose 304 for indoor or general use, 316 for marine or coastal environments. The addition of molybdenum in the 316 grade actively fights off the pitting caused by chlorides.

Q2: Can I customize the size or surface finish?
→ Yes, custom thickness, hole spacing and mirror polish are available for OEM orders. We also support laser marking for logos and bespoke packaging to empower your brand identity in the market.

Q3: What is the maximum load capacity?
→ Varies by size; from 200 kg (5 mm) to 500 kg (8 mm) under normal installation conditions. These figures are backed by rigorous breaking force tests conducted in our quality control lab.

Q4: Will it rust over time?
→ 316 stainless steel resists corrosion even after long-term saltwater exposure. As long as the surface is kept free from iron contamination, it will maintain its structural and visual integrity for decades.

8. Packaging & Delivery

We understand that supply chain reliability is just as important as product integrity. Our scale of production ensures we maintain large inventories of standard sizes, ready for immediate dispatch. Each pad eye plate is individually packed in poly bags, then carton-boxed with anti-scratch protection to ensure the wire-drawing finish arrives in pristine condition.

• MOQ: 100 pcs

• Lead time: 5–7 days for stock items, 15–20 days for custom orders

• Shipping: by sea, air or express (DHL, FedEx)

9. Why Choose RICHWITS Hardware

RICHWITS is a professional manufacturer of marine and stainless-steel hardware with over 10 years of export experience. Operating under an ISO 9001 certified quality management system, our proprietary factory boasts exceptional monthly production capacities, ensuring we can fulfill massive global demands without compromising on precision. We supply OEM/ODM services, custom engraving and international logistics support to help clients build their brands worldwide. From modifying non-standard hole spacing to applying unique surface treatments, our deep customization capabilities are designed to give your product line a distinct competitive advantage.
