Product Overview

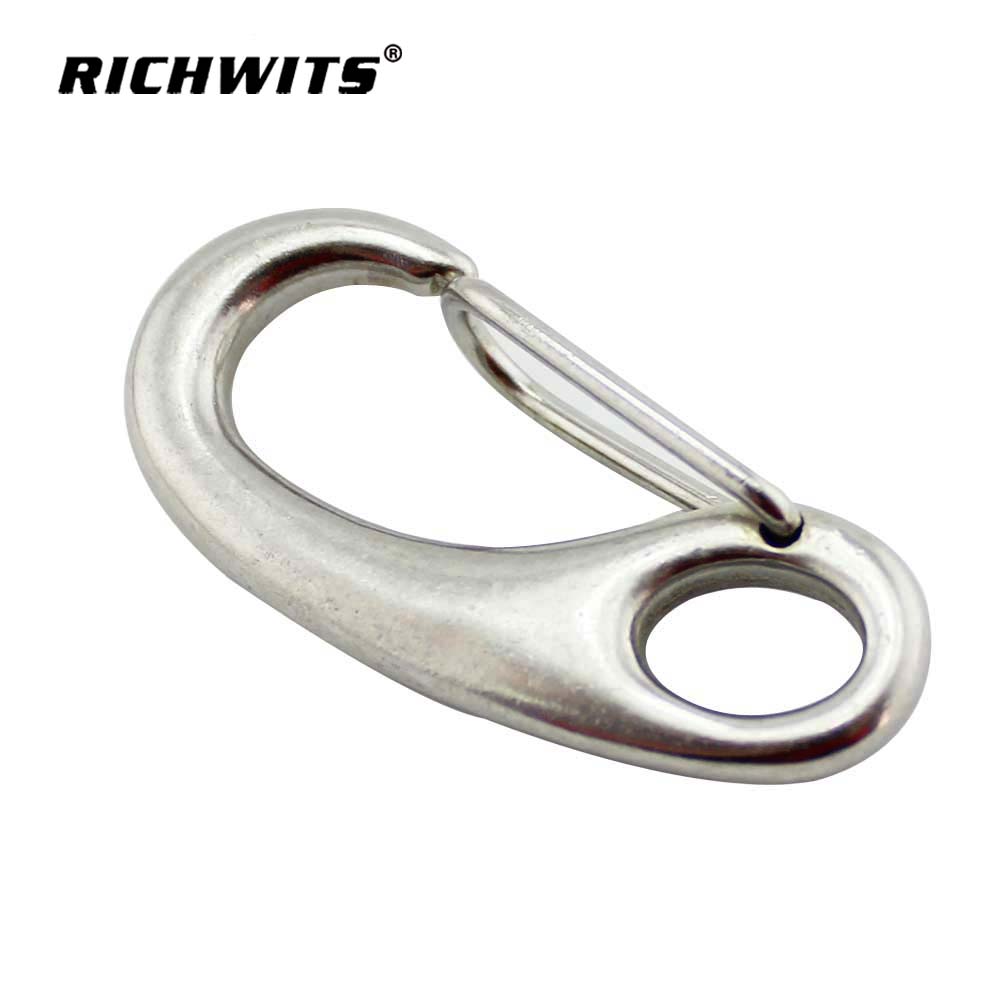

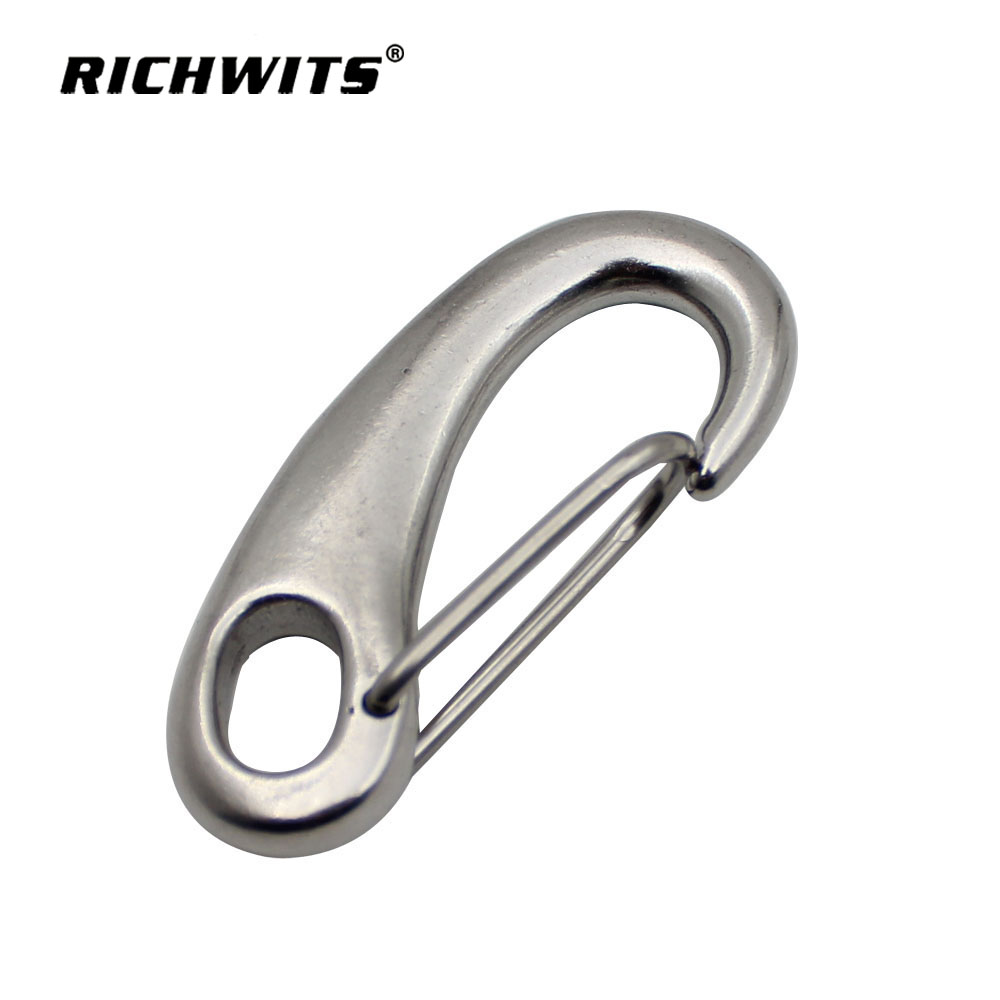

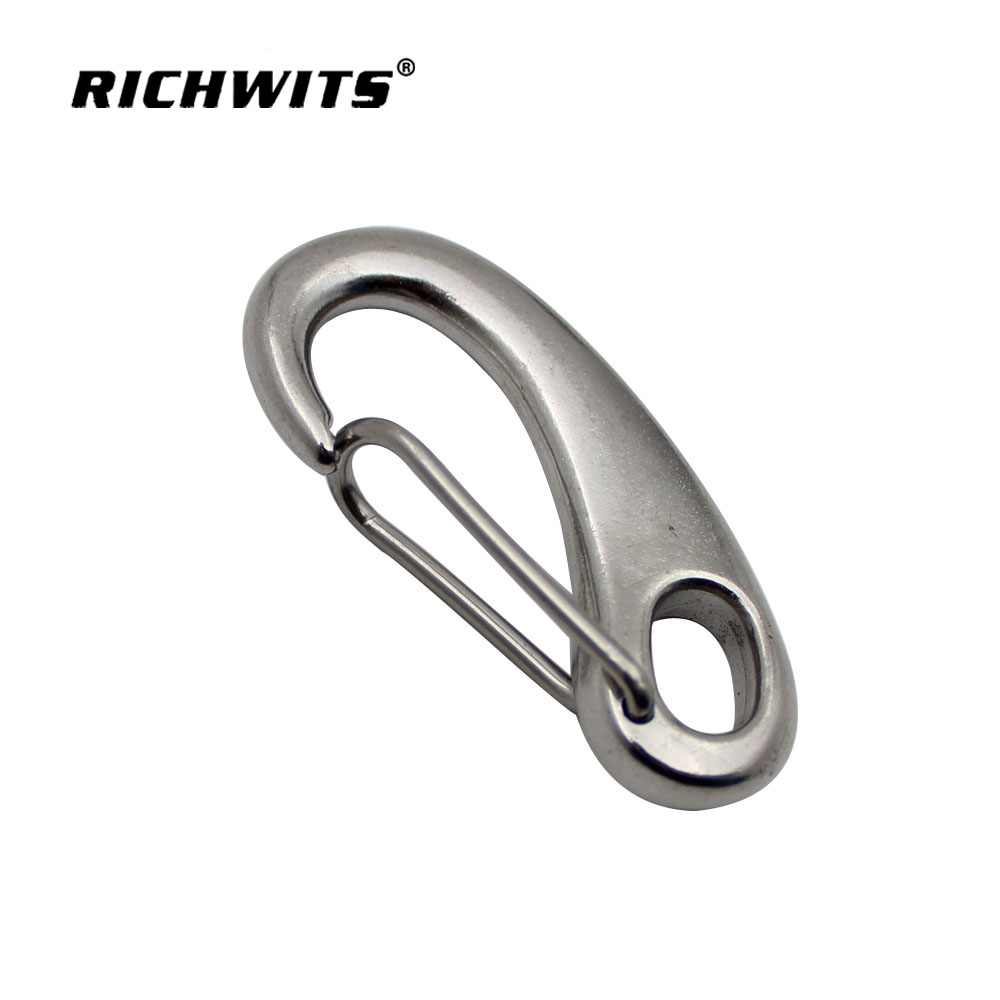

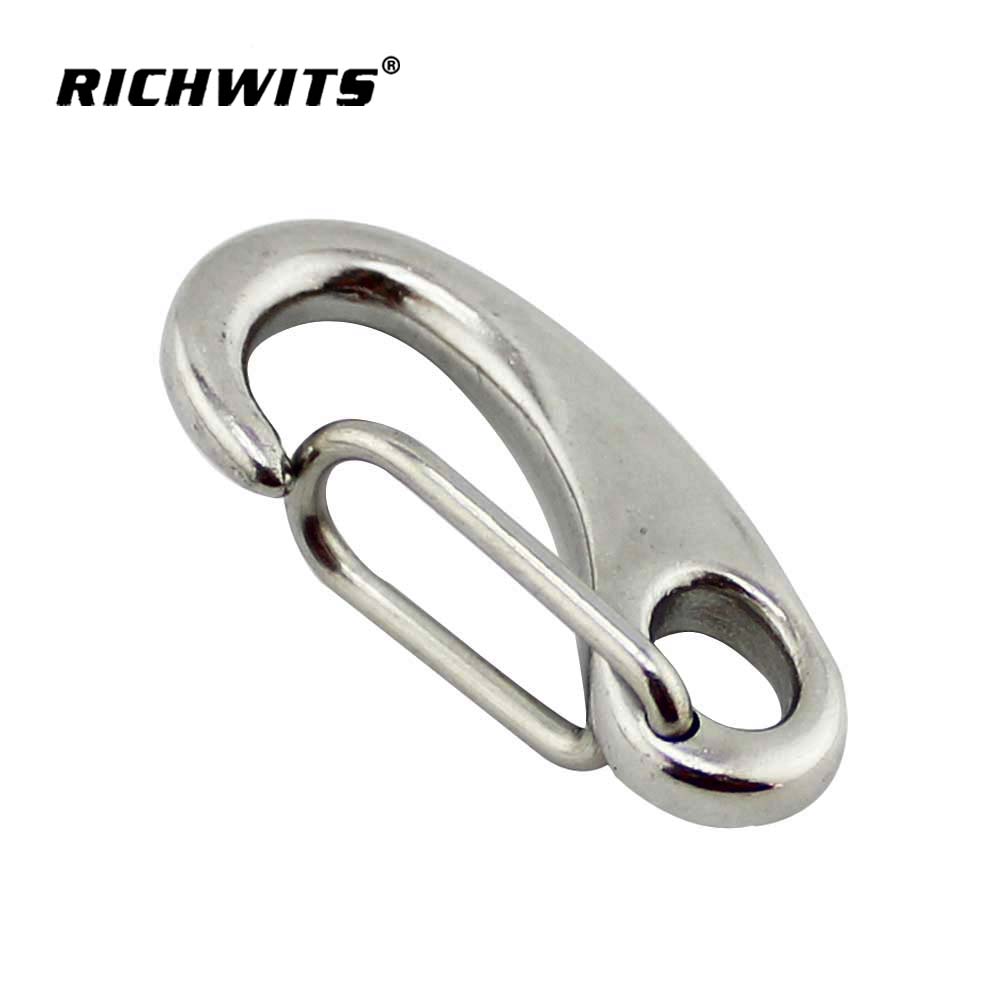

High-Quality Snap Hook Shackle – Stainless-Steel Egg-Shape Spring Hook – Model ZB6205 Series
RICHWITS ZB6205 gives you an “egg” profile that delivers higher strength with less weight—ideal for marine, pet, handbag and hammock hardware.
Precision-investment-cast from 316 marine stainless, then mirror-polished and electropolished for lifetime immunity to salt-spray, chlorine and tropical humidity.
Egg-shaped basket spreads load evenly; spring gate closes with 4 kgf preload yet opens under 12 kgf pull—one-hand friendly, even underwater.

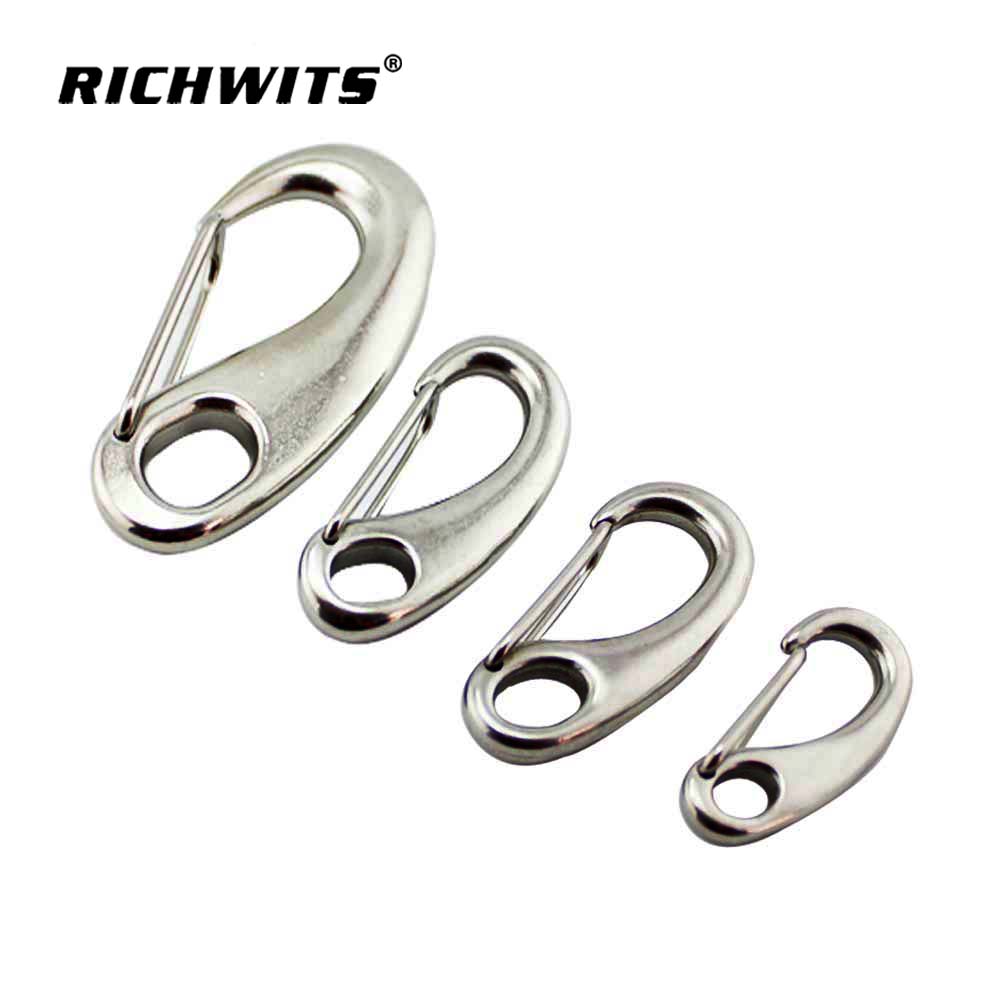

Five sizes (40–100 mm) cover working-load limits from 80 kgf to 500 kgf—perfect for shade sails, pet leads, diving belts, handbag straps or heavy-duty hammock suspension.

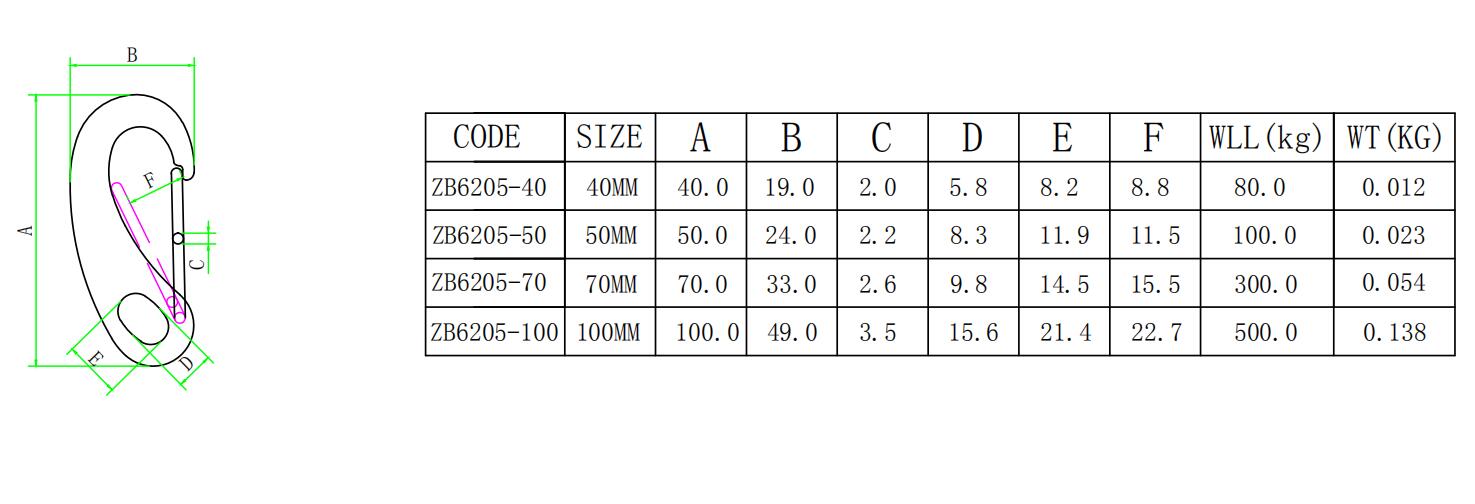

Dimension & Working Loads
Key Features & Benefits
316 SS One-Piece Egg Forging – zero welds, zero rust, zero weak points.
Egg-Shape Basket – 30 % stronger than round wire at same weight; smooth radius prevents line wear.
Spring Gate 4 kgf Preload – stays closed under vibration, opens with 12 kgf pull—glove-friendly.
Mirror-Polished & Electropolished – salt rinses off; no pitting or tea staining.
Chamfered Gate Mouth – prevents webbing, leather or regulator hose chafe.
Silent Under Load – stainless spring + Teflon washer—no squeal, no rattle.
Weight-Optimised – 12 g (40 mm) to 138 g (100 mm) – 40 % lighter than comparable DIN hooks.

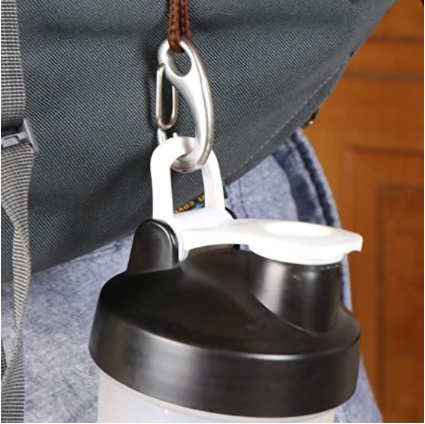

Usage Scenarios
Shade Sails & Awnings – 70–100 mm hooks rated 300–500 kgf; corner connections for 316 turnbuckles.
Pet Leashes & Handbags – 40–50 mm lightweights (12–23 g) give upscale marine look with zero rust.
Hammock / Swing Suspension – 70 mm rated 300 kgf; egg basket keeps 25 mm webbing flat.
Diving & Scooter Rigging – 50 mm (100 kgf) perfect for BCD shoulder D-rings or stage-bottle bridles.
Certifications / Testing
Why Choose RICHWITS
Factory-Direct – wholesale & retail welcomed, 25 % cost saving vs. branded equal.
In-Stock – 30 000 pcs ready, MOQ 100 pcs, 48 h dispatch.
Fast Logistics – FedEx/UPS/DHL global 3-7 day delivery.
OEM/ODM – custom size, coloured sleeve or logo within 2 weeks.
Test Certificates – mill cert, salt-spray, proof-load report supplied free.
FAQ
Q1: Will 316 SS really never rust in seawater?
A1: Correct—2-3 % Mo gives lifetime immunity to chlorides; rinse with fresh water after each voyage to keep the mirror shine.
Q2: What safe working load (SWL) per egg hook?
A2: From 80 kgf (40 mm) to 500 kgf (100 mm); divide total load by number of hooks—safety factor 4:1.
Q3: Can I use the 70 mm for hammock suspension?
A3: Yes—rated 300 kgf; typical 100 kg hammock needs 1 pc for 3:1 safety, or 2 pcs for 6:1.
Q4: Will the gate open under vibration or rolling?
A4: No—spring preload 4 kgf; tested 24 h vibration 50–500 Hz, zero accidental release.
Q5: Are spare springs or PVC sleeves available?
A5: Yes—stainless spring kits and coloured sleeves, MOQ 50 pcs, $0.10 each.
Q6: Do you offer test certificates?
A6: Mill certificate for 316 SS, salt-spray report, and proof-load certificate supplied free on request.
