Deck hardware failures often cause severe secondary damage aboard your vessel. Water-logged core materials lead to expensive structural repairs. Failing components can easily compromise overall vessel security. Upgrading these utility pieces requires strict adherence to material compatibility. You must rely on precise measurements. Following proper sealing protocols ensures long-term reliability. This reliability is vital in harsh saltwater or UV-heavy environments. You cannot afford to cut corners during installation.
We provide a clear framework in this guide. You will learn how to evaluate essential deck utility components. You will discover exactly how to specify the right parts. We also cover strict installation protocols. You will secure your upgrades without compromising deck integrity. Use these practical insights to protect your vessel for years.
Key Takeaways
Material selection is non-negotiable: 316 marine-grade stainless steel and UV-stabilized composites are the baseline for structural and utility longevity.
Precision in retrofitting: Matching existing cutout dimensions and fastener patterns mitigates the risk of drilling new holes and exposing the deck core to moisture.
Installation dictates lifespan: Even premium hardware will fail if installed with improper bedding compounds or galvanically incompatible fasteners.
Functional prioritization: Utility components—from a low-profile drain plug to a high-traffic deck filler and outlet—require specific evaluation criteria based on their deck location and load exposure.
Material Standards and Environmental Resilience
You cannot compromise on material selection when outfitting a vessel. Saltwater environments relentlessly attack inferior metals. UV radiation quickly degrades standard plastics. We must establish strict baselines for corrosion resistance. 316 stainless steel stands as the undisputed industry standard for saltwater exposure. It contains molybdenum. This addition drastically increases its resistance to chloride pitting. 304 stainless steel lacks this protection. You should restrict 304 strictly to freshwater applications or cabin interiors. UV-resistant marine polymers offer a lightweight alternative. They work well for non-structural utility components.
Table 1: Material Standards Comparison
Material Type | Corrosion Resistance | Best Application Environment | Load Bearing Capacity |
|---|
316 Stainless Steel | Exceptional (Resists chloride pitting) | Exterior Deck, Harsh Saltwater | High (Structural) |
304 Stainless Steel | Moderate (Vulnerable to saltwater) | Cabin Interiors, Freshwater | High (Structural) |
Marine Polymers | Immune to rust | High UV Exposure, Above Deck | Low to Moderate (Cosmetic/Utility) |
Galvanic corrosion presents a hidden danger on many boats. Mixing dissimilar metals creates an electrical reaction. This reaction destroys the weaker metal. Installing stainless steel fasteners directly into an aluminum deck is a common mistake. You must isolate these incompatible metals. Use specialized insulating pastes like Tef-Gel. You can also insert nylon washers between the metals. These barriers interrupt the electrical current. Proper isolation keeps your marine hardware intact.
You must also differentiate between structural and cosmetic loads. Structural hardware must withstand severe physical stress. Cleats and heavy-duty hinges handle impacts and stepping loads. They require robust through-bolting. Cosmetic or utility hardware faces different pressures. These items prioritize convenience and daily functionality. A clear understanding of these loads dictates your fastener choice. It also determines if you need backing plates beneath the deck.
Evaluating Core Deck Utility Hardware Specifications
Specific deck locations demand specialized features. You must evaluate every component based on its primary function. We divide these essential parts into three functional categories. Each category carries distinct evaluation criteria.
Water Management
Effective water management prevents flooding and structural rot. A reliable drain plug serves as your first line of defense. You should look for models featuring captive O-rings. Captive designs prevent you from losing the seal during maintenance. The threading must engage smoothly without binding. Cross-threading a plug compromises watertight integrity instantly.

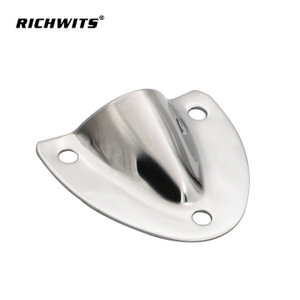

Ventilation requires equal attention. An air vent cover must facilitate airflow while blocking moisture. Evaluate these covers for baffled internal designs. Baffles create a tortuous path for water. They allow air to circulate below deck. They prevent water intrusion during heavy spray or aggressive washdowns. Inferior covers lack these baffles and invite moisture into the bilge.
Access & Fluid Management
Fuel, water, and waste systems require foolproof deck fittings. A deck filler and outlet faces constant interaction. Clear labeling is an absolute requirement. You must easily distinguish between Gas, Water, and Waste. Color-coded caps provide a strong secondary visual cue. Secure key-locking mechanisms prevent tampering. They also protect your tanks from contamination at the dock.
Routine maintenance requires access to hidden compartments. A deck inspection hatch provides this vital gateway. You must select plates featuring watertight, flush-mount profiles. A raised hatch creates a dangerous tripping hazard on a busy deck. The unit needs durable neoprene seals. Neoprene resists chemical degradation from fuel spills or harsh cleaning agents.
Cabin & Deck Convenience
Convenience components still require rigorous marine-grade construction. A door hasp secures your cabin from unwanted entry. Standard hardware rattles endlessly while underway. You must choose anti-rattle designs. The mounting screws must remain concealed when locked. Concealed screws prevent thieves from simply unscrewing the hardware to bypass the lock.
Beverage storage might seem trivial, but it impacts deck drainage. A marine cup holder should never hold standing water. Stagnant water breeds mold and invites corrosion. Evaluate these units for self-draining bottoms. The drain should feature a small spigot. You can attach a hose to route this water directly to the bilge or deck drains.
Sizing, Fitment, and Retrofitting Protocols
Precision matters immensely when replacing old components. Guesswork leads to leaks. We recommend a strict measurement protocol. You should always use digital calipers for these tasks. Tape measures lack the necessary precision for marine retrofitting.
Measure the Outer Diameter (OD). This ensures the new flange will clear adjacent obstacles.
Measure the Cutout Diameter. This is the exact hole size through the deck. Matching this prevents unnecessary fiberglass work.
Measure Fastener Center-to-Center Distances. Perfect alignment allows you to reuse existing drill holes safely.
Mismatched holes present a common challenge. You might find a replacement part that fits the cutout perfectly. However, the fastener holes might misalign by a fraction of an inch. Never angle screws to force a fit. You must fill the old holes. Inject thickened marine epoxy into the existing voids. Let it cure completely. You can then drill fresh, perfectly aligned holes. Using oversized backing plates below deck also helps distribute loads when fastener locations change.
Clearance and routing require physical verification. You cannot assume an open space exists below a fitting. Verify the below-deck clearance before purchasing a new fuel filler. The hose routing might obstruct a deeper neck. Structural backing for heavy-duty items demands clear real estate. Ensure no wiring harnesses or plumbing lines run directly beneath your intended mounting location.
Installation Realities: Ensuring Watertight Integrity
Even premium hardware will fail if installed poorly. Watertight integrity depends entirely on your installation process. Surface preparation dictates the success of any sealant. You must aggressively remove all old silicone. Old sealants repel new bedding compounds. Clean the bare gelcoat thoroughly with acetone. Inspect the exposed deck core inside the cutout. Look for dark, damp wood or crumbling foam. You must repair existing moisture damage before proceeding.
Bedding Compounds and Sealants
Selecting the correct sealant prevents leaks. You have two primary options for marine environments. Butyl tape offers a fantastic, flexible seal. We use butyl tape for mechanically fastened hardware. It remains sticky and pliable for decades. It stretches as the deck flexes underfoot. Polyurethane marine sealant provides permanent, adhesive bonding. Use polyurethane when you need structural adhesion alongside waterproofing. It cures into a tough, rubbery state.
We must issue a critical warning here. Standard household silicone should never touch a boat deck. It lacks UV resistance. It breaks down rapidly in saltwater. Furthermore, it leaves an invisible residue. This residue prevents paint or future sealants from bonding. Rely exclusively on marine-specific compounds.
Countersinking and Fastening
Drilling directly through gelcoat causes spider-cracking. The drill bit grabs the brittle surface and shatters it. You must countersink every hole. Use a specialized countersink bit. Create a small chamfer around the edge of the hole. This relieves the stress on the gelcoat. It also creates a small pocket for your sealant to pool. As you tighten the screw, it creates a robust watertight gasket.
Load-bearing components require through-bolting. Screws driven into fiberglass will eventually pull out. Impact loads destroy simple screw threads. You must use stainless steel bolts. Secure them below deck with heavy washers and locking nuts. Backing plates distribute the extreme pulling forces across a wider area of the core.
Maintenance and Lifecycle Management
Proactive maintenance extends the life of your investments. You must establish strict inspection routines. Catching a small leak prevents catastrophic core rot. Walk your deck monthly. Look closely at the base of every fitting. Spotting failing seals is relatively easy. Watch for chalky, cracked sealant. Check below decks for subtle water weeping around nuts and backing plates. Crevice corrosion manifests as brown rust bleeding from stainless steel. This bleeding indicates oxygen starvation under the screw heads.
Lubrication prevents mechanical failures. Rubber components dry out quickly in the sun. Maintain the O-rings on your inspection ports. Apply a thin layer of marine-grade silicone grease twice a year. This keeps the rubber supple. Lubricate the threads on your fillers. Grease prevents galling. Galling occurs when stainless steel threads fuse together under friction.
You will eventually face the repair versus replace decision. Use a simple matrix to guide your choice:
Replace gaskets or O-rings if the metal housing remains pit-free.
Replace the entire unit if you discover deep crevice corrosion.
Replace the entire unit if the mounting flange shows hairline fractures.
Replace internal locking mechanisms if they bind after lubrication.
Conclusion
Reliable marine hardware bridges the gap between deck functionality and structural protection. Upgrading these utility components requires strict adherence to material compatibility. Precise measurements ensure watertight fitment. Proper sealing protocols guarantee long-term reliability in harsh environments. You protect your vessel from hidden rot when you follow these rules.
Take action before leaks occur. Audit your existing hardware dimensions today. Verify the materials required for your specific boating environment. Avoid mixing incompatible metals. Always reject household sealants for deck work. Finally, consult commercial-grade product catalogs to source exact-fit replacements. A watertight deck ensures a safe and secure vessel.
FAQ
Q: Can I use 304 stainless steel hardware on my boat deck?
A: We strongly advise against it for saltwater use. 304 stainless steel lacks molybdenum. It is highly susceptible to pitting and tea-staining when exposed to chlorides. You should strictly reserve 304 for freshwater environments or protected cabin interiors. Always recommend 316 marine-grade stainless steel for exterior deck components to ensure longevity.
Q: How do I properly seal a new deck inspection hatch?
A: You should use marine-grade polyurethane sealant or high-quality butyl tape. Clean the deck thoroughly with acetone first. Apply the compound generously around the flange. Never use standard household silicone. Household silicone breaks down under UV light, fails in saltwater, and leaves a residue preventing future adhesion.
Q: What should I look for when replacing a deck filler and outlet?
A: You must match the exact below-deck hose diameter to prevent fuel or water leaks. Ensure the new unit has a watertight cap seal. For fuel fillers, you must verify the presence of a proper grounding wire attachment point to prevent static sparks during refueling.
Q: Why is my stainless steel marine hardware rusting?
A: You are likely seeing crevice corrosion. Stainless steel relies on oxygen to maintain its protective chromium oxide layer. When saltwater gets trapped under screw heads or tight flanges, oxygen is depleted. This causes the metal to rust. Aggressive chemical cleaners can also strip this protective layer away.
