Marine Fasteners And Boat Hardware

Can one small bolt put a boat at risk? In harsh marine conditions, it can. Marine fasteners and boat hardware face saltwater, vibration, moisture, and heavy loads every trip. This guide explains how to choose reliable Marine Hardware, use stainless steel yacht fittings correctly, and prevent corrosion, loosening, and early failure.

Why Marine Hardware Needs to Be Chosen More Carefully

Marine Hardware is exposed to conditions that are far harsher than most outdoor hardware ever faces. On a boat, screws, bolts, hinges, shackles, cleats, and deck fittings are constantly affected by moisture, salt, movement, and changing loads. This is why choosing the right hardware is not only about appearance or price; it directly affects safety, service life, and the reliability of the boat’s working parts.

Saltwater, Moisture, and Vibration Create Constant Stress

Saltwater is especially aggressive because chloride can speed up corrosion and cause pitting on unsuitable metals. Moisture can also collect around threads, under washers, inside hinges, and beneath mounted fittings, creating hidden corrosion points. At the same time, boats are always moving. Engine vibration, wave impact, docking pressure, and rope tension can gradually loosen fasteners or fatigue poorly supported hardware.

Because of these combined stresses, hardware should be chosen for both corrosion resistance and mechanical strength.

Ordinary Hardware Can Fail Faster on Boats

Common outdoor hardware may work for garden gates, furniture, or general home repairs, but boats create a much more demanding environment. Basic steel can rust quickly. Low-grade stainless steel may stain or pit in saltwater. Decorative fittings may look polished at first, yet lack the strength or sealing performance needed for marine use.

Typical failure signs include:

● Brown rust marks around screw heads or hinges

● Pitting on stainless surfaces

● Threads that seize during removal

● Leaks around deck-mounted hardware

● Weak connections near cleats, rails, or access panels

Application Location Matters

Hardware inside a dry cabin does not face the same risk as hardware mounted on a foredeck, swim platform, rail base, or anchor point. Deck areas and splash zones usually need stronger corrosion resistance, while below-waterline or constantly wet locations require even more careful material selection and sealing. Hardware near ropes, anchors, engines, hatches, and railings should also use stronger fastening methods because these areas often carry load, movement, or vibration during normal boat use.

Choosing the Right Materials for Marine Fasteners and Boat Hardware

Material choice is one of the most important decisions when selecting marine fasteners and boat hardware. The right metal must handle moisture, salt, load, vibration, and long-term exposure without weakening the connection. Common marine materials include 316 stainless steel, 304 stainless steel, silicon bronze, aluminum, and specialty alloys, each with different strengths and limitations in marine environments.

316 Stainless Steel for Marine Hardware and Yacht Fittings

316 stainless steel is widely used for Marine Hardware because it offers a strong balance of corrosion resistance, strength, availability, and appearance. Its improved resistance to chloride exposure makes it a preferred choice for many saltwater applications, especially compared with lower-grade stainless options. This is why it is commonly selected for stainless steel yacht fittings, including shackles, hinges, cleats, eye bolts, nuts, rail fittings, deck plates, and other visible or load-bearing parts.

However, 316 stainless steel should not be treated as maintenance-free. Salt deposits, trapped moisture, and poor ventilation can still lead to surface staining or localized corrosion over time. Regular rinsing, cleaning, and inspection help preserve both its polished appearance and mechanical reliability.

304 Stainless Steel and Its Limits

304 stainless steel can be suitable for freshwater boats, dry interiors, decorative trim, or light-duty hardware that is not exposed to constant salt spray. It is often more economical and easy to source, which makes it attractive for non-critical applications.

The problem is that “stainless steel” is too general as a buying standard. In saltwater environments, 304 stainless steel has weaker resistance to chloride-related corrosion than 316 stainless steel. For deck hardware, rail fittings, anchor points, or wet exterior areas, choosing stainless steel without checking the grade can lead to rust staining, pitting, or early replacement.

Silicon Bronze, Aluminum, and Other Marine Materials

Silicon bronze is valued in wooden boat construction because it resists saltwater corrosion and works well with timber. It is often used where long-term compatibility with wood matters, such as planking, traditional repairs, and certain submerged or wet wooden structures.

Aluminum is useful where weight reduction is important, but it must be selected and installed carefully. When aluminum is paired with stainless steel or other metals in a wet environment, the connection may become vulnerable to galvanic corrosion. Specialty alloys such as Monel or titanium may be used in demanding marine projects, but they are usually reserved for custom, high-load, or highly corrosive applications rather than everyday boat hardware.

Preventing Galvanic Corrosion

Galvanic corrosion happens when different metals are connected in the presence of an electrolyte such as seawater. A common example is stainless steel hardware installed directly onto aluminum surfaces without isolation.

Practical prevention methods include:

● Use non-conductive washers or spacers between dissimilar metals.

● Apply bedding compounds or marine sealants around mounted hardware.

● Choose compatible metals whenever possible.

● Inspect mixed-metal joints more often in wet or saltwater areas.

Common Marine Fasteners and Boat Hardware Used on Boats

Marine fasteners and boat hardware cover a wide range of parts, but each item has a specific job. Some fasteners are used for light-duty panels and interior fittings, while others hold structural deck hardware, rope-handling equipment, or access components in place. Bolts, screws, nuts, washers, shackles, hinges, cleats, and latches all require careful selection because their performance depends on material, load, location, and exposure.

Screws, Bolts, Nuts, and Washers

Screws are commonly used for panels, wood, fiberglass, cabinetry, trim, and lighter hardware installations. They are practical when the load is moderate and the installation does not require access to both sides of the surface. Bolts are better suited for stronger fastening tasks, especially when hardware must handle pulling, twisting, or repeated movement. They are often used with nuts and washers to create a more secure assembly.

Washers are especially important when fastening into fiberglass, wood, or thin surfaces because they help distribute pressure. In areas exposed to engine vibration, wave impact, or moving loads, lock nuts or nylon-insert nuts can reduce the risk of hardware loosening over time.

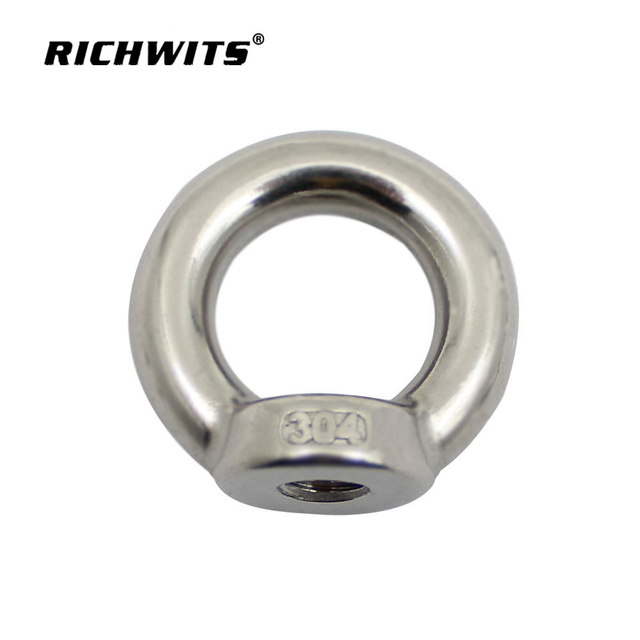

Shackles, Eye Bolts, and Chain Fittings

Shackles, eye bolts, and chain fittings are used where connection strength matters. They often work with ropes, chains, anchors, lifting points, and deck-mounted attachment systems. Because these parts may carry sudden or repeated loads, size and working load rating should be checked carefully.

For sailing, anchoring, and deck applications, these fittings are often made from corrosion-resistant stainless steel. High-quality stainless steel yacht fittings are valued not only for their clean appearance but also for their ability to handle exposure to spray, tension, and regular use.

Hinges, Latches, and Access Hardware

Hinges are used on hatches, lockers, cabin doors, inspection plates, storage lids, and access panels. Since they are opened and closed repeatedly, smooth movement is just as important as corrosion resistance. A weak or rusted hinge can make a hatch difficult to use or allow misalignment over time.

Marine latches help secure covers, lockers, engine compartments, and storage areas. In wet or exposed locations, they should close firmly and resist corrosion so the compartment remains protected during normal boat movement.

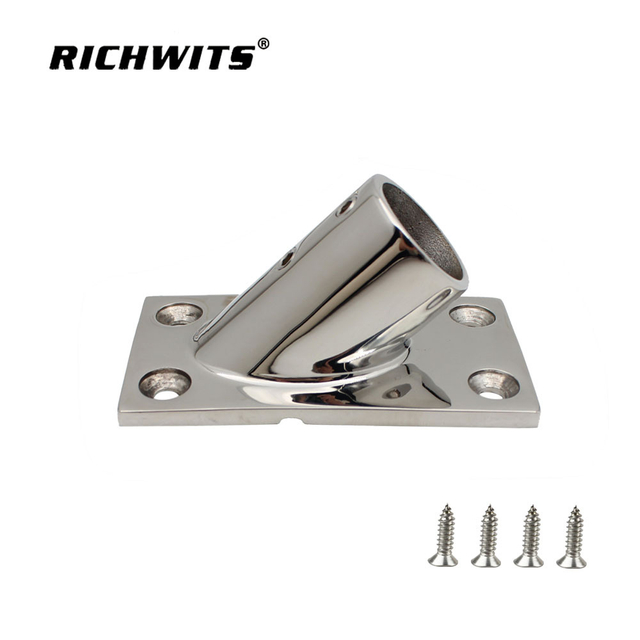

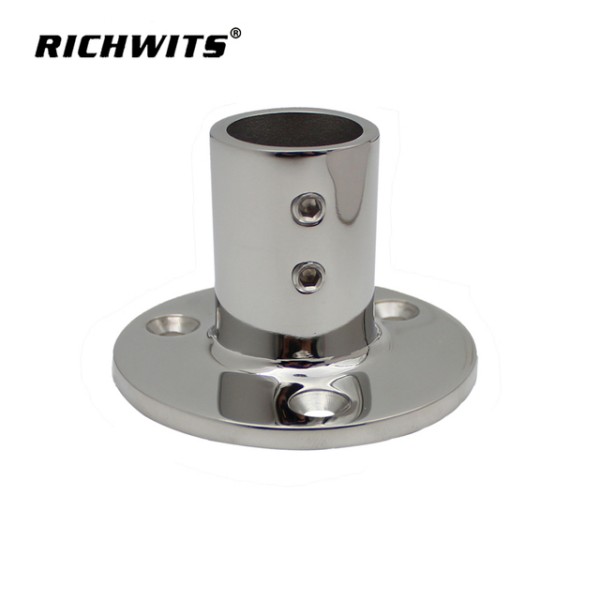

Cleats, Rail Bases, and Deck Fittings

Cleats are essential for mooring and rope management, so they must be strong enough to handle line tension. Rail bases, deck plates, and other mounted fittings face weather, load, and vibration. For high-load deck hardware, proper backing support, suitable washers, and secure installation are critical to prevent movement, cracking, or fastener pull-out.

How to Select Marine Hardware for a Specific Boat Project

Choosing marine hardware becomes easier when the decision starts with the job the part must perform. A cleat, hinge, shackle, screw, or rail fitting may all be made from corrosion-resistant metal, but they do not face the same forces or exposure. Marine fasteners should be matched to the application, load, substrate, and environment rather than selected by appearance alone.

Start With the Function, Not Just the Product Name

Before choosing a part, identify what the hardware needs to do on the boat. A hatch hinge must open smoothly and resist moisture. A cleat must hold line tension. A shackle may need to connect rope, chain, or anchoring gear under changing loads. Even replacement fasteners should be matched to the original purpose, not simply copied by size.

Common project questions include:

● Is the part securing a hatch, locker, or access panel?

● Will it mount a cleat, rail base, or deck fitting?

● Does it connect chain, rope, or lifting hardware?

● Is the hardware decorative, functional, or safety-related?

● Will the fastener replace a worn or corroded part?

The same material can perform differently depending on location. For example, stainless steel used inside a dry cabin faces far less stress than stainless hardware mounted near an anchor roller or swim platform.

Match the Fastening Method to the Load

Light-duty or interior hardware may sometimes be installed with self-tapping screws, especially for trim, small brackets, panels, or cabin accessories. These applications usually carry limited load and are easier to inspect or replace.

Higher-load hardware should be treated differently. Cleats, rail bases, shackles, deck-mounted fittings, and other safety-related parts are usually better secured with through-bolting when access allows. Backing plates and large washers help spread pressure over a wider surface, reducing the risk of cracking, pull-through, or movement under load.

Consider Freshwater, Saltwater, and Exposure Level

Freshwater boats may allow more flexibility in material choice, especially for interior or low-load hardware. Saltwater boats need more careful selection because chloride exposure increases the risk of corrosion. Deck areas, splash zones, and exposed fittings often call for 316 stainless steel, silicon bronze, or other high-resistance materials.

Dry interior areas can sometimes use more economical hardware, as long as the part is not load-critical or exposed to regular moisture.

Balance Price With Long-Term Reliability

Cheap hardware can become expensive if it rusts, leaks, seizes, or damages the surrounding surface. A low-cost fitting may save money at installation but require earlier replacement or create safety concerns later. Quality Marine Hardware should be viewed as a practical investment because it supports longer service life, safer operation, and lower maintenance over time.

Installation Details That Help Boat Hardware Last Longer

Even high-quality marine hardware can fail early if it is installed poorly. Correct installation practices, including sealing, proper tightening, anti-seize use, and load distribution, are essential for preventing corrosion, leaks, and premature loosening in marine environments.

Seal Holes Before Water Becomes a Problem

Every fastener hole is a possible entry point for water. If screws or bolts are installed without proper sealing, moisture can move into wood, fiberglass, or the core material beneath a deck. Over time, this may cause swelling, rot, delamination, soft spots, or hidden structural damage that is much harder to repair than the original installation.

Deck hardware, hinges, cleats, inspection plates, rail bases, and hatch fittings should be bedded carefully with a suitable marine sealant. The goal is not only to stop visible leaks, but also to keep water from collecting around the fastener shaft, under the washer, or inside the mounting surface.

Avoid Over-Tightening and Thread Damage

Tightening hardware too aggressively can create new problems. Fiberglass may crack, wood may crush, and composite surfaces may deform if the fastener is forced beyond what the material can handle. A secure connection should feel firm, but it should not damage the surface being fastened.

Stainless steel threads also need attention. In stainless-to-stainless assemblies, friction can cause galling, where threads seize or tear during tightening. Anti-seize compound can help reduce this risk, especially on bolts, nuts, and fittings that may need to be removed later for maintenance.

Use the Right Support Behind the Hardware

High-load fittings should not rely on thin fiberglass, small washers, or unsupported panels alone. Cleats, rail bases, eye bolts, and other deck-mounted hardware often face pulling force, vibration, and sudden load changes, so the support behind the fitting is just as important as the visible hardware above it.

Maintenance Tips for Marine Fasteners and Stainless Steel Yacht Fittings

Regular maintenance helps marine fasteners and stainless steel yacht fittings keep their strength, appearance, and function over time. Even corrosion-resistant materials can develop staining, pitting, or thread problems when exposed to salt, moisture, and vibration without routine care.

Inspect Hardware Before Small Issues Become Failures

Boat hardware should be checked before visible damage turns into a larger repair. Look for rust stains around screw heads, pitting on stainless surfaces, loose nuts, cracked sealant, slight movement, or worn contact points where ropes, chains, or hinges create friction.

Early inspection is especially important for hardware that carries load or protects openings from water.

Rinse and Clean After Saltwater Exposure

Salt deposits should be removed from exposed hardware because they can hold moisture against the metal surface. This matters even for 316 stainless steel, which is corrosion-resistant but not maintenance-free. After saltwater use, rinsing stainless steel yacht fittings, shackles, hinges, cleats, and deck hardware with fresh water is a simple habit that can extend service life and reduce surface staining.

Replace Damaged or Questionable Fasteners Promptly

Corroded, bent, seized, or loose fasteners should not be ignored. A small screw, nut, washer, or shackle pin may seem minor, but it can affect the reliability of the entire fitting. Replacing a questionable part early is usually safer and less expensive than waiting until a cleat pulls loose, a hatch leaks, or a fitting fails under load.

Conclusion

Reliable marine fasteners and boat hardware depend on the right material, application, installation, and maintenance. Quality Marine Hardware should handle saltwater, vibration, load, and long-term exposure. With durable 316 stainless steel, silicon bronze options, proper sealing, and regular inspection, boat owners can reduce corrosion and failure. Wudi Zhibo Metals Co., Ltd. provides dependable stainless steel yacht fittings that support safer performance and longer service life.

FAQ

Q: What material is best for Marine Hardware in saltwater?

A: 316 stainless steel is commonly preferred for Marine Hardware because it resists chloride corrosion better than 304 stainless steel.

Q: Are stainless steel yacht fittings maintenance-free?

A: No. Stainless steel yacht fittings still need freshwater rinsing and inspection to reduce salt deposits, staining, and pitting.

Q: When should marine fasteners be through-bolted?

A: Through-bolting is recommended for cleats, rail bases, eye bolts, and other high-load boat hardware.

Q: How can galvanic corrosion be reduced?

A: Use compatible metals, isolation washers, sealants, or bedding compounds between dissimilar marine fasteners.
